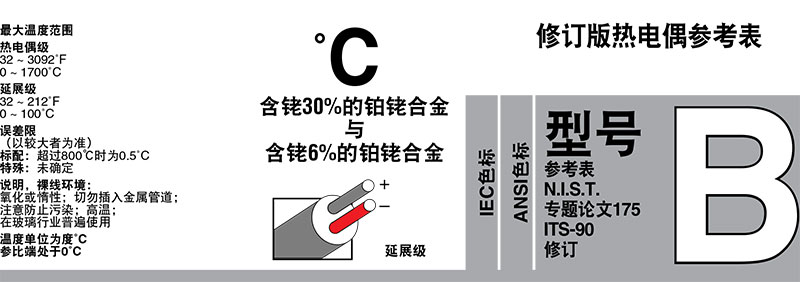

热电电压单位为毫伏
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
0 0 0 0 -0.001 -0.001 -0.001 -0.001 -0.001 -0.002 -0.002 -0.002 0
10 -0.002 -0.002 -0.002 -0.002 -0.002 -0.002 -0.002 -0.002 -0.003 -0.003 -0.003 10
20 -0.003 -0.003 -0.003 -0.003 -0.003 -0.002 -0.002 -0.002 -0.002 -0.002 -0.002 20
30 -0.002 -0.002 -0.002 -0.002 -0.002 -0.001 -0.001 -0.001 -0.001 -0.001 0 30
40 0 0 0 0 0 0.001 0.001 0.001 0.002 0.002 0.002 40
50 0.002 0.003 0.003 0.003 0.004 0.004 0.004 0.005 0.005 0.006 0.006 50
60 0.006 0.007 0.007 0.008 0.008 0.009 0.009 0.01 0.01 0.011 0.011 60
70 0.011 0.012 0.012 0.013 0.014 0.014 0.015 0.015 0.016 0.017 0.017 70
80 0.017 0.018 0.019 0.02 0.02 0.021 0.022 0.022 0.023 0.024 0.025 80
90 0.025 0.026 0.026 0.027 0.028 0.029 0.03 0.031 0.031 0.032 0.033 90
100 0.033 0.034 0.035 0.036 0.037 0.038 0.039 0.04 0.041 0.042 0.043 100
110 0.043 0.044 0.045 0.046 0.047 0.048 0.049 0.05 0.051 0.052 0.053 110
120 0.053 0.055 0.056 0.057 0.058 0.059 0.06 0.062 0.063 0.064 0.065 120
130 0.065 0.066 0.068 0.069 0.07 0.072 0.073 0.074 0.075 0.077 0.078 130
140 0.078 0.079 0.081 0.082 0.084 0.085 0.086 0.088 0.089 0.091 0.092 140
150 0.092 0.094 0.095 0.096 0.098 0.099 0.101 0.102 0.104 0.106 0.107 150
160 0.107 0.109 0.11 0.112 0.113 0.115 0.117 0.118 0.12 0.122 0.123 160
170 0.123 0.125 0.127 0.128 0.13 0.132 0.134 0.135 0.137 0.139 0.141 170
180 0.141 0.142 0.144 0.146 0.148 0.15 0.151 0.153 0.155 0.157 0.159 180
190 0.159 0.161 0.163 0.165 0.166 0.168 0.17 0.172 0.174 0.176 0.178 190
200 0.178 0.18 0.182 0.184 0.186 0.188 0.19 0.192 0.195 0.197 0.199 200
210 0.199 0.201 0.203 0.205 0.207 0.209 0.212 0.214 0.216 0.218 0.22 210
220 0.22 0.222 0.225 0.227 0.229 0.231 0.234 0.236 0.238 0.241 0.243 220
230 0.243 0.245 0.248 0.25 0.252 0.255 0.257 0.259 0.262 0.264 0.267 230
240 0.267 0.269 0.271 0.274 0.276 0.279 0.281 0.284 0.286 0.289 0.291 240
250 0.291 0.294 0.296 0.299 0.301 0.304 0.307 0.309 0.312 0.314 0.317 250
260 0.317 0.32 0.322 0.325 0.328 0.33 0.333 0.336 0.338 0.341 0.344 260
270 0.344 0.347 0.349 0.352 0.355 0.358 0.36 0.363 0.366 0.369 0.372 270
280 0.372 0.375 0.377 0.38 0.383 0.386 0.389 0.392 0.395 0.398 0.401 280
290 0.401 0.404 0.407 0.41 0.413 0.416 0.419 0.422 0.425 0.428 0.431 290
300 0.431 0.434 0.437 0.44 0.443 0.446 0.449 0.452 0.455 0.458 0.462 300
310 0.462 0.465 0.468 0.471 0.474 0.478 0.481 0.484 0.487 0.49 0.494 310
320 0.494 0.497 0.5 0.503 0.507 0.51 0.513 0.517 0.52 0.523 0.527 320
330 0.527 0.53 0.533 0.537 0.54 0.544 0.547 0.55 0.554 0.557 0.561 330
340 0.561 0.564 0.568 0.571 0.575 0.578 0.582 0.585 0.589 0.592 0.596 340
350 0.596 0.599 0.603 0.607 0.61 0.614 0.617 0.621 0.625 0.628 0.632 350
360 0.632 0.636 0.639 0.643 0.647 0.65 0.654 0.658 0.662 0.665 0.669 360
370 0.669 0.673 0.677 0.68 0.684 0.688 0.692 0.696 0.7 0.703 0.707 370
380 0.707 0.711 0.715 0.719 0.723 0.727 0.731 0.735 0.738 0.742 0.746 380
390 0.746 0.75 0.754 0.758 0.762 0.766 0.77 0.774 0.778 0.782 0.787 390
400 0.787 0.791 0.795 0.799 0.803 0.807 0.811 0.815 0.819 0.824 0.828 400
410 0.828 0.832 0.836 0.84 0.844 0.849 0.853 0.857 0.861 0.866 0.87 410
420 0.87 0.874 0.878 0.883 0.887 0.891 0.896 0.9 0.904 0.909 0.913 420
430 0.913 0.917 0.922 0.926 0.93 0.935 0.939 0.944 0.948 0.953 0.957 430
440 0.957 0.961 0.966 0.97 0.975 0.979 0.984 0.988 0.993 0.997 1.002 440
450 1.002 1.007 1.011 1.016 1.02 1.025 1.03 1.034 1.039 1.043 1.048 450
460 1.048 1.053 1.057 1.062 1.067 1.071 1.076 1.081 1.086 1.09 1.095 460
470 1.095 1.1 1.105 1.109 1.114 1.119 1.124 1.129 1.133 1.138 1.143 470
480 1.143 1.148 1.153 1.158 1.163 1.167 1.172 1.177 1.182 1.187 1.192 480
490 1.192 1.197 1.202 1.207 1.212 1.217 1.222 1.227 1.232 1.237 1.242 490
500 1.242 1.247 1.252 1.257 1.262 1.267 1.272 1.277 1.282 1.288 1.293 500
510 1.293 1.298 1.303 1.308 1.313 1.318 1.324 1.329 1.334 1.339 1.344 510
520 1.344 1.35 1.355 1.36 1.365 1.371 1.376 1.381 1.387 1.392 1.397 520
530 1.397 1.402 1.408 1.413 1.418 1.424 1.429 1.435 1.44 1.445 1.451 530
540 1.451 1.456 1.462 1.467 1.472 1.478 1.483 1.489 1.494 1.5 1.505 540
550 1.505 1.511 1.516 1.522 1.527 1.533 1.539 1.544 1.55 1.555 1.561 550
560 1.561 1.566 1.572 1.578 1.583 1.589 1.595 1.6 1.606 1.612 1.617 560
570 1.617 1.623 1.629 1.634 1.64 1.646 1.652 1.657 1.663 1.669 1.675 570
580 1.675 1.68 1.686 1.692 1.698 1.704 1.709 1.715 1.721 1.727 1.733 580
590 1.733 1.739 1.745 1.75 1.756 1.762 1.768 1.774 1.78 1.786 1.792 590
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
1200 6.786 6.797 6.807 6.818 6.828 6.838 6.849 6.859 6.869 6.88 6.89 1200
1210 6.89 6.901 6.911 6.922 6.932 6.942 6.953 6.963 6.974 6.984 6.995 1210
1220 6.995 7.005 7.016 7.026 7.037 7.047 7.058 7.068 7.079 7.089 7.1 1220
1230 7.1 7.11 7.121 7.131 7.142 7.152 7.163 7.173 7.184 7.194 7.205 1230
1240 7.205 7.216 7.226 7.237 7.247 7.258 7.269 7.279 7.29 7.3 7.311 1240
1250 7.311 7.322 7.332 7.343 7.353 7.364 7.375 7.385 7.396 7.407 7.417 1250
1260 7.417 7.428 7.439 7.449 7.46 7.471 7.482 7.492 7.503 7.514 7.524 1260
1270 7.524 7.535 7.546 7.557 7.567 7.578 7.589 7.6 7.61 7.621 7.632 1270
1280 7.632 7.643 7.653 7.664 7.675 7.686 7.697 7.707 7.718 7.729 7.74 1280
1290 7.74 7.751 7.761 7.772 7.783 7.794 7.805 7.816 7.827 7.837 7.848 1290
1300 7.848 7.859 7.87 7.881 7.892 7.903 7.914 7.924 7.935 7.946 7.957 1300
1310 7.957 7.968 7.979 7.99 8.001 8.012 8.023 8.034 8.045 8.056 8.066 1310
1320 8.066 8.077 8.088 8.099 8.11 8.121 8.132 8.143 8.154 8.165 8.176 1320
1330 8.176 8.187 8.198 8.209 8.22 8.231 8.242 8.253 8.264 8.275 8.286 1330
1340 8.286 8.298 8.309 8.32 8.331 8.342 8.353 8.364 8.375 8.386 8.397 1340
1350 8.397 8.408 8.419 8.43 8.441 8.453 8.464 8.475 8.486 8.497 8.508 1350
1360 8.508 8.519 8.53 8.542 8.553 8.564 8.575 8.586 8.597 8.608 8.62 1360
1370 8.62 8.631 8.642 8.653 8.664 8.675 8.687 8.698 8.709 8.72 8.731 1370
1380 8.731 8.743 8.754 8.765 8.776 8.787 8.799 8.81 8.821 8.832 8.844 1380
1390 8.844 8.855 8.866 8.877 8.889 8.9 8.911 8.922 8.934 8.945 8.956 1390
1400 8.956 8.967 8.979 8.99 9.001 9.013 9.024 9.035 9.047 9.058 9.069 1400
1410 9.069 9.08 9.092 9.103 9.114 9.126 9.137 9.148 9.16 9.171 9.182 1410
1420 9.182 9.194 9.205 9.216 9.228 9.239 9.251 9.262 9.273 9.285 9.296 1420
1430 9.296 9.307 9.319 9.33 9.342 9.353 9.364 9.376 9.387 9.398 9.41 1430
1440 9.41 9.421 9.433 9.444 9.456 9.467 9.478 9.49 9.501 9.513 9.524 1440
1450 9.524 9.536 9.547 9.558 9.57 9.581 9.593 9.604 9.616 9.627 9.639 1450
1460 9.639 9.65 9.662 9.673 9.684 9.696 9.707 9.719 9.73 9.742 9.753 1460
1470 9.753 9.765 9.776 9.788 9.799 9.811 9.822 9.834 9.845 9.857 9.868 1470
1480 9.868 9.88 9.891 9.903 9.914 9.926 9.937 9.949 9.961 9.972 9.984 1480
1490 9.984 9.995 10.007 10.018 10.03 10.041 10.053 10.064 10.076 10.088 10.099 1490
1500 10.099 10.111 10.122 10.134 10.145 10.157 10.168 10.18 10.192 10.203 10.215 1500
1510 10.215 10.226 10.238 10.249 10.261 10.273 10.284 10.296 10.307 10.319 10.331 1510
1520 10.331 10.342 10.354 10.365 10.377 10.389 10.4 10.412 10.423 10.435 10.447 1520
1530 10.447 10.458 10.47 10.482 10.493 10.505 10.516 10.528 10.54 10.551 10.563 1530
1540 10.563 10.575 10.586 10.598 10.609 10.621 10.633 10.644 10.656 10.668 10.679 1540
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
600 1.792 1.798 1.804 1.81 1.816 1.822 1.828 1.834 1.84 1.846 1.852 600
610 1.852 1.858 1.864 1.87 1.876 1.882 1.888 1.894 1.901 1.907 1.913 610
620 1.913 1.919 1.925 1.931 1.937 1.944 1.95 1.956 1.962 1.968 1.975 620
630 1.975 1.981 1.987 1.993 1.999 2.006 2.012 2.018 2.025 2.031 2.037 630
640 2.037 2.043 2.05 2.056 2.062 2.069 2.075 2.082 2.088 2.094 2.101 640
650 2.101 2.107 2.113 2.12 2.126 2.133 2.139 2.146 2.152 2.158 2.165 650
660 2.165 2.171 2.178 2.184 2.191 2.197 2.204 2.21 2.217 2.224 2.23 660
670 2.23 2.237 2.243 2.25 2.256 2.263 2.27 2.276 2.283 2.289 2.296 670
680 2.296 2.303 2.309 2.316 2.323 2.329 2.336 2.343 2.35 2.356 2.363 680
690 2.363 2.37 2.376 2.383 2.39 2.397 2.403 2.41 2.417 2.424 2.431 690
700 2.431 2.437 2.444 2.451 2.458 2.465 2.472 2.479 2.485 2.492 2.499 700
710 2.499 2.506 2.513 2.52 2.527 2.534 2.541 2.548 2.555 2.562 2.569 710
720 2.569 2.576 2.583 2.59 2.597 2.604 2.611 2.618 2.625 2.632 2.639 720
730 2.639 2.646 2.653 2.66 2.667 2.674 2.681 2.688 2.696 2.703 2.71 730
740 2.71 2.717 2.724 2.731 2.738 2.746 2.753 2.76 2.767 2.775 2.782 740
750 2.782 2.789 2.796 2.803 2.811 2.818 2.825 2.833 2.84 2.847 2.854 750
760 2.854 2.862 2.869 2.876 2.884 2.891 2.898 2.906 2.913 2.921 2.928 760
770 2.928 2.935 2.943 2.95 2.958 2.965 2.973 2.98 2.987 2.995 3.002 770
780 3.002 3.01 3.017 3.025 3.032 3.04 3.047 3.055 3.062 3.07 3.078 780
790 3.078 3.085 3.093 3.1 3.108 3.116 3.123 3.131 3.138 3.146 3.154 790
800 3.154 3.161 3.169 3.177 3.184 3.192 3.2 3.207 3.215 3.223 3.23 800
810 3.23 3.238 3.246 3.254 3.261 3.269 3.277 3.285 3.292 3.3 3.308 810
820 3.308 3.316 3.324 3.331 3.339 3.347 3.355 3.363 3.371 3.379 3.386 820
830 3.386 3.394 3.402 3.41 3.418 3.426 3.434 3.442 3.45 3.458 3.466 830
840 3.466 3.474 3.482 3.49 3.498 3.506 3.514 3.522 3.53 3.538 3.546 840
850 3.546 3.554 3.562 3.57 3.578 3.586 3.594 3.602 3.61 3.618 3.626 850
860 3.626 3.634 3.643 3.651 3.659 3.667 3.675 3.683 3.692 3.7 3.708 860
870 3.708 3.716 3.724 3.732 3.741 3.749 3.757 3.765 3.774 3.782 3.79 870
880 3.79 3.798 3.807 3.815 3.823 3.832 3.84 3.848 3.857 3.865 3.873 880
890 3.873 3.882 3.89 3.898 3.907 3.915 3.923 3.932 3.94 3.949 3.957 890
900 3.957 3.965 3.974 3.982 3.991 3.999 4.008 4.016 4.024 4.033 4.041 900
910 4.041 4.05 4.058 4.067 4.075 4.084 4.093 4.101 4.11 4.118 4.127 910
920 4.127 4.135 4.144 4.152 4.161 4.17 4.178 4.187 4.195 4.204 4.213 920
930 4.213 4.221 4.23 4.239 4.247 4.256 4.265 4.273 4.282 4.291 4.299 930
940 4.299 4.308 4.317 4.326 4.334 4.343 4.352 4.36 4.369 4.378 4.387 940
950 4.387 4.396 4.404 4.413 4.422 4.431 4.44 4.448 4.457 4.466 4.475 950
960 4.475 4.484 4.493 4.501 4.51 4.519 4.528 4.537 4.546 4.555 4.564 960
970 4.564 4.573 4.582 4.591 4.599 4.608 4.617 4.626 4.635 4.644 4.653 970
980 4.653 4.662 4.671 4.68 4.689 4.698 4.707 4.716 4.725 4.734 4.743 980
990 4.743 4.753 4.762 4.771 4.78 4.789 4.798 4.807 4.816 4.825 4.834 990
1000 4.834 4.843 4.853 4.862 4.871 4.88 4.889 4.898 4.908 4.917 4.926 1000
1010 4.926 4.935 4.944 4.954 4.963 4.972 4.981 4.99 5 5.009 5.018 1010
1020 5.018 5.027 5.037 5.046 5.055 5.065 5.074 5.083 5.092 5.102 5.111 1020
1030 5.111 5.12 5.13 5.139 5.148 5.158 5.167 5.176 5.186 5.195 5.205 1030
1040 5.205 5.214 5.223 5.233 5.242 5.252 5.261 5.27 5.28 5.289 5.299 1040
1050 5.299 5.308 5.318 5.327 5.337 5.346 5.356 5.365 5.375 5.384 5.394 1050
1060 5.394 5.403 5.413 5.422 5.432 5.441 5.451 5.46 5.47 5.48 5.489 1060
1070 5.489 5.499 5.508 5.518 5.528 5.537 5.547 5.556 5.566 5.576 5.585 1070
1080 5.585 5.595 5.605 5.614 5.624 5.634 5.643 5.653 5.663 5.672 5.682 1080
1090 5.682 5.692 5.702 5.711 5.721 5.731 5.74 5.75 5.76 5.77 5.78 1090
1100 5.78 5.789 5.799 5.809 5.819 5.828 5.838 5.848 5.858 5.868 5.878 1100
1110 5.878 5.887 5.897 5.907 5.917 5.927 5.937 5.947 5.956 5.966 5.976 1110
1120 5.976 5.986 5.996 6.006 6.016 6.026 6.036 6.046 6.055 6.065 6.075 1120
1130 6.075 6.085 6.095 6.105 6.115 6.125 6.135 6.145 6.155 6.165 6.175 1130
1140 6.175 6.185 6.195 6.205 6.215 6.225 6.235 6.245 6.256 6.266 6.276 1140
1150 6.276 6.286 6.296 6.306 6.316 6.326 6.336 6.346 6.356 6.367 6.377 1150
1160 6.377 6.387 6.397 6.407 6.417 6.427 6.438 6.448 6.458 6.468 6.478 1160
1170 6.478 6.488 6.499 6.509 6.519 6.529 6.539 6.55 6.56 6.57 6.58 1170
1180 6.58 6.591 6.601 6.611 6.621 6.632 6.642 6.652 6.663 6.673 6.683 1180
1190 6.683 6.693 6.704 6.714 6.724 6.735 6.745 6.755 6.766 6.776 6.786 1190
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
1550 10.679 10.691 10.703 10.714 10.726 10.738 10.749 10.761 10.773 10.784 10.796 1550
1560 10.796 10.808 10.819 10.831 10.843 10.854 10.866 10.877 10.889 10.901 10.913 1560
1570 10.913 10.924 10.936 10.948 10.959 10.971 10.983 10.994 11.006 11.018 11.029 1570
1580 11.029 11.041 11.053 11.064 11.076 11.088 11.099 11.111 11.123 11.134 11.146 1580
1590 11.146 11.158 11.169 11.181 11.193 11.205 11.216 11.228 11.24 11.251 11.263 1590
1600 11.263 11.275 11.286 11.298 11.31 11.321 11.333 11.345 11.357 11.368 11.38 1600
1610 11.38 11.392 11.403 11.415 11.427 11.438 11.45 11.462 11.474 11.485 11.497 1610
1620 11.497 11.509 11.52 11.532 11.544 11.555 11.567 11.579 11.591 11.602 11.614 1620
1630 11.614 11.626 11.637 11.649 11.661 11.673 11.684 11.696 11.708 11.719 11.731 1630
1640 11.731 11.743 11.754 11.766 11.778 11.79 11.801 11.813 11.825 11.836 11.848 1640
1650 11.848 11.86 11.871 11.883 11.895 11.907 11.918 11.93 11.942 11.953 11.965 1650
1660 11.965 11.977 11.988 12 12.012 12.024 12.035 12.047 12.059 12.07 12.082 1660
1670 12.082 12.094 12.105 12.117 12.129 12.141 12.152 12.164 12.176 12.187 12.199 1670
1680 12.199 12.211 12.222 12.234 12.246 12.257 12.269 12.281 12.292 12.304 12.316 1680
1690 12.316 12.327 12.339 12.351 12.363 12.374 12.386 12.398 12.409 12.421 12.433 1690
1700 12.433 12.444 12.456 12.468 12.479 12.491 12.503 12.514 12.526 12.538 12.549 1700
1710 12.549 12.561 12.572 12.584 12.596 12.607 12.619 12.631 12.642 12.654 12.666 1710
1720 12.666 12.677 12.689 12.701 12.712 12.724 12.736 12.747 12.759 12.77 12.782 1720
1730 12.782 12.794 12.805 12.817 12.829 12.84 12.852 12.863 12.875 12.887 12.898 1730
1740 12.898 12.91 12.921 12.933 12.945 12.956 12.968 12.98 12.991 13.003 13.014 1740
1750 13.014 13.026 13.037 13.049 13.061 13.072 13.084 13.095 13.107 13.119 13.13 1750
1760 13.13 13.142 13.153 13.165 13.176 13.188 13.2 13.211 13.223 13.234 13.246 1760
1770 13.246 13.257 13.269 13.28 13.292 13.304 13.315 13.327 13.338 13.35 13.361 1770
1780 13.361 13.373 13.384 13.396 13.407 13.419 13.43 13.442 13.453 13.465 13.476 1780
1790 13.476 13.488 13.499 13.511 13.522 13.534 13.545 13.557 13.568 13.58 13.591 1790
1800 13.591 13.603 13.614 13.626 13.637 13.649 13.66 13.672 13.683 13.694 13.706 1800
1810 13.706 13.717 13.729 13.74 13.752 13.763 13.775 13.786 13.797 13.809 13.82 1810






˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
回到温度检测技术参考索引首页
