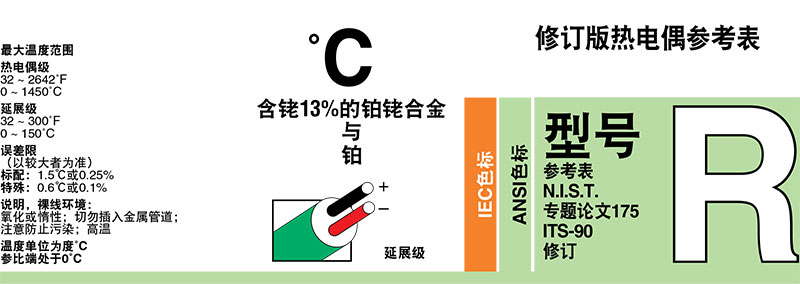

热电电压单位为毫伏
˚C -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 ˚C
-40 -0.226 -0.223 -0.219 -0.215 -0.211 -0.208 -0.204 -0.2 -0.196 -0.192 -0.188 -40
-30 -0.188 -0.184 -0.18 -0.175 -0.171 -0.167 -0.163 -0.158 -0.154 -0.15 -0.145 -30
-20 -0.145 -0.141 -0.137 -0.132 -0.128 -0.123 -0.119 -0.114 -0.109 -0.105 -0.1 -20
-10 -0.1 -0.095 -0.091 -0.086 -0.081 -0.076 -0.071 -0.066 -0.061 -0.056 -0.051 -10
0 -0.051 -0.046 -0.041 -0.036 -0.031 -0.026 -0.021 -0.016 -0.011 -0.005 0 0
0 0 0.005 0.011 0.016 0.021 0.027 0.032 0.038 0.043 0.049 0.054 0
10 0.054 0.06 0.065 0.071 0.077 0.082 0.088 0.094 0.1 0.105 0.111 10
20 0.111 0.117 0.123 0.129 0.135 0.141 0.147 0.153 0.159 0.165 0.171 20
30 0.171 0.177 0.183 0.189 0.195 0.201 0.207 0.214 0.22 0.226 0.232 30
40 0.232 0.239 0.245 0.251 0.258 0.264 0.271 0.277 0.284 0.29 0.296 40
50 0.296 0.303 0.31 0.316 0.323 0.329 0.336 0.343 0.349 0.356 0.363 50
60 0.363 0.369 0.376 0.383 0.39 0.397 0.403 0.41 0.417 0.424 0.431 60
70 0.431 0.438 0.445 0.452 0.459 0.466 0.473 0.48 0.487 0.494 0.501 70
80 0.501 0.508 0.516 0.523 0.53 0.537 0.544 0.552 0.559 0.566 0.573 80
90 0.573 0.581 0.588 0.595 0.603 0.61 0.618 0.625 0.632 0.64 0.647 90
100 0.647 0.655 0.662 0.67 0.677 0.685 0.693 0.7 0.708 0.715 0.723 100
110 0.723 0.731 0.738 0.746 0.754 0.761 0.769 0.777 0.785 0.792 0.8 110
120 0.8 0.808 0.816 0.824 0.832 0.839 0.847 0.855 0.863 0.871 0.879 120
130 0.879 0.887 0.895 0.903 0.911 0.919 0.927 0.935 0.943 0.951 0.959 130
140 0.959 0.967 0.976 0.984 0.992 1 1.008 1.016 1.025 1.033 1.041 140
150 1.041 1.049 1.058 1.066 1.074 1.082 1.091 1.099 1.107 1.116 1.124 150
160 1.124 1.132 1.141 1.149 1.158 1.166 1.175 1.183 1.191 1.2 1.208 160
170 1.208 1.217 1.225 1.234 1.242 1.251 1.26 1.268 1.277 1.285 1.294 170
180 1.294 1.303 1.311 1.32 1.329 1.337 1.346 1.355 1.363 1.372 1.381 180
190 1.381 1.389 1.398 1.407 1.416 1.425 1.433 1.442 1.451 1.46 1.469 190
200 1.469 1.477 1.486 1.495 1.504 1.513 1.522 1.531 1.54 1.549 1.558 200
210 1.558 1.567 1.575 1.584 1.593 1.602 1.611 1.62 1.629 1.639 1.648 210
220 1.648 1.657 1.666 1.675 1.684 1.693 1.702 1.711 1.72 1.729 1.739 220
230 1.739 1.748 1.757 1.766 1.775 1.784 1.794 1.803 1.812 1.821 1.831 230
240 1.831 1.84 1.849 1.858 1.868 1.877 1.886 1.895 1.905 1.914 1.923 240
250 1.923 1.933 1.942 1.951 1.961 1.97 1.98 1.989 1.998 2.008 2.017 250
260 2.017 2.027 2.036 2.046 2.055 2.064 2.074 2.083 2.093 2.102 2.112 260
270 2.112 2.121 2.131 2.14 2.15 2.159 2.169 2.179 2.188 2.198 2.207 270
280 2.207 2.217 2.226 2.236 2.246 2.255 2.265 2.275 2.284 2.294 2.304 280
290 2.304 2.313 2.323 2.333 2.342 2.352 2.362 2.371 2.381 2.391 2.401 290
300 2.401 2.41 2.42 2.43 2.44 2.449 2.459 2.469 2.479 2.488 2.498 300
310 2.498 2.508 2.518 2.528 2.538 2.547 2.557 2.567 2.577 2.587 2.597 310
320 2.597 2.607 2.617 2.626 2.636 2.646 2.656 2.666 2.676 2.686 2.696 320
330 2.696 2.706 2.716 2.726 2.736 2.746 2.756 2.766 2.776 2.786 2.796 330
340 2.796 2.806 2.816 2.826 2.836 2.846 2.856 2.866 2.876 2.886 2.896 340
350 2.896 2.906 2.916 2.926 2.937 2.947 2.957 2.967 2.977 2.987 2.997 350
360 2.997 3.007 3.018 3.028 3.038 3.048 3.058 3.068 3.079 3.089 3.099 360
370 3.099 3.109 3.119 3.13 3.14 3.15 3.16 3.171 3.181 3.191 3.201 370
380 3.201 3.212 3.222 3.232 3.242 3.253 3.263 3.273 3.284 3.294 3.304 380
390 3.304 3.315 3.325 3.335 3.346 3.356 3.366 3.377 3.387 3.397 3.408 390
400 3.408 3.418 3.428 3.439 3.449 3.46 3.47 3.48 3.491 3.501 3.512 400
410 3.512 3.522 3.533 3.543 3.553 3.564 3.574 3.585 3.595 3.606 3.616 410
420 3.616 3.627 3.637 3.648 3.658 3.669 3.679 3.69 3.7 3.711 3.721 420
430 3.721 3.732 3.742 3.753 3.764 3.774 3.785 3.795 3.806 3.816 3.827 430
440 3.827 3.838 3.848 3.859 3.869 3.88 3.891 3.901 3.912 3.922 3.933 440
450 3.933 3.944 3.954 3.965 3.976 3.986 3.997 4.008 4.018 4.029 4.04 450
460 4.04 4.05 4.061 4.072 4.083 4.093 4.104 4.115 4.125 4.136 4.147 460
470 4.147 4.158 4.168 4.179 4.19 4.201 4.211 4.222 4.233 4.244 4.255 470
480 4.255 4.265 4.276 4.287 4.298 4.309 4.319 4.33 4.341 4.352 4.363 480
490 4.363 4.373 4.384 4.395 4.406 4.417 4.428 4.439 4.449 4.46 4.471 490
500 4.471 4.482 4.493 4.504 4.515 4.526 4.537 4.548 4.558 4.569 4.58 500
510 4.58 4.591 4.602 4.613 4.624 4.635 4.646 4.657 4.668 4.679 4.69 510
520 4.69 4.701 4.712 4.723 4.734 4.745 4.756 4.767 4.778 4.789 4.8 520
530 4.8 4.811 4.822 4.833 4.844 4.855 4.866 4.877 4.888 4.899 4.91 530
540 4.91 4.922 4.933 4.944 4.955 4.966 4.977 4.988 4.999 5.01 5.021 540
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
1150 12.535 12.549 12.563 12.577 12.59 12.604 12.618 12.632 12.646 12.659 12.673 1150
1160 12.673 12.687 12.701 12.715 12.729 12.742 12.756 12.77 12.784 12.798 12.812 1160
1170 12.812 12.825 12.839 12.853 12.867 12.881 12.895 12.909 12.922 12.936 12.95 1170
1180 12.95 12.964 12.978 12.992 13.006 13.019 13.033 13.047 13.061 13.075 13.089 1180
1190 13.089 13.103 13.117 13.131 13.145 13.158 13.172 13.186 13.2 13.214 13.228 1190
1200 13.228 13.242 13.256 13.27 13.284 13.298 13.311 13.325 13.339 13.353 13.367 1200
1210 13.367 13.381 13.395 13.409 13.423 13.437 13.451 13.465 13.479 13.493 13.507 1210
1220 13.507 13.521 13.535 13.549 13.563 13.577 13.59 13.604 13.618 13.632 13.646 1220
1230 13.646 13.66 13.674 13.688 13.702 13.716 13.73 13.744 13.758 13.772 13.786 1230
1240 13.786 13.8 13.814 13.828 13.842 13.856 13.87 13.884 13.898 13.912 13.926 1240
1250 13.926 13.94 13.954 13.968 13.982 13.996 14.01 14.024 14.038 14.052 14.066 1250
1260 14.066 14.081 14.095 14.109 14.123 14.137 14.151 14.165 14.179 14.193 14.207 1260
1270 14.207 14.221 14.235 14.249 14.263 14.277 14.291 14.305 14.319 14.333 14.347 1270
1280 14.347 14.361 14.375 14.39 14.404 14.418 14.432 14.446 14.46 14.474 14.488 1280
1290 14.488 14.502 14.516 14.53 14.544 14.558 14.572 14.586 14.601 14.615 14.629 1290
1300 14.629 14.643 14.657 14.671 14.685 14.699 14.713 14.727 14.741 14.755 14.77 1300
1310 14.77 14.784 14.798 14.812 14.826 14.84 14.854 14.868 14.882 14.896 14.911 1310
1320 14.911 14.925 14.939 14.953 14.967 14.981 14.995 15.009 15.023 15.037 15.052 1320
1330 15.052 15.066 15.08 15.094 15.108 15.122 15.136 15.15 15.164 15.179 15.193 1330
1340 15.193 15.207 15.221 15.235 15.249 15.263 15.277 15.291 15.306 15.32 15.334 1340
1350 15.334 15.348 15.362 15.376 15.39 15.404 15.419 15.433 15.447 15.461 15.475 1350
1360 15.475 15.489 15.503 15.517 15.531 15.546 15.56 15.574 15.588 15.602 15.616 1360
1370 15.616 15.63 15.645 15.659 15.673 15.687 15.701 15.715 15.729 15.743 15.758 1370
1380 15.758 15.772 15.786 15.8 15.814 15.828 15.842 15.856 15.871 15.885 15.899 1380
1390 15.899 15.913 15.927 15.941 15.955 15.969 15.984 15.998 16.012 16.026 16.04 1390
1400 16.04 16.054 16.068 16.082 16.097 16.111 16.125 16.139 16.153 16.167 16.181 1400
1410 16.181 16.196 16.21 16.224 16.238 16.252 16.266 16.28 16.294 16.309 16.323 1410
1420 16.323 16.337 16.351 16.365 16.379 16.393 16.407 16.422 16.436 16.45 16.464 1420
1430 16.464 16.478 16.492 16.506 16.52 16.534 16.549 16.563 16.577 16.591 16.605 1430
1440 16.605 16.619 16.633 16.647 16.662 16.676 16.69 16.704 16.718 16.732 16.746 1440
1450 16.746 16.76 16.774 16.789 16.803 16.817 16.831 16.845 16.859 16.873 16.887 1450
1460 16.887 16.901 16.915 16.93 16.944 16.958 16.972 16.986 17 17.014 17.028 1460
1470 17.028 17.042 17.056 17.071 17.085 17.099 17.113 17.127 17.141 17.155 17.169 1470
1480 17.169 17.183 17.197 17.211 17.225 17.24 17.254 17.268 17.282 17.296 17.31 1480
1490 17.31 17.324 17.338 17.352 17.366 17.38 17.394 17.408 17.423 17.437 17.451 1490
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
550 5.021 5.033 5.044 5.055 5.066 5.077 5.088 5.099 5.111 5.122 5.133 550
560 5.133 5.144 5.155 5.166 5.178 5.189 5.2 5.211 5.222 5.234 5.245 560
570 5.245 5.256 5.267 5.279 5.29 5.301 5.312 5.323 5.335 5.346 5.357 570
580 5.357 5.369 5.38 5.391 5.402 5.414 5.425 5.436 5.448 5.459 5.47 580
590 5.47 5.481 5.493 5.504 5.515 5.527 5.538 5.549 5.561 5.572 5.583 590
600 5.583 5.595 5.606 5.618 5.629 5.64 5.652 5.663 5.674 5.686 5.697 600
610 5.697 5.709 5.72 5.731 5.743 5.754 5.766 5.777 5.789 5.8 5.812 610
620 5.812 5.823 5.834 5.846 5.857 5.869 5.88 5.892 5.903 5.915 5.926 620
630 5.926 5.938 5.949 5.961 5.972 5.984 5.995 6.007 6.018 6.03 6.041 630
640 6.041 6.053 6.065 6.076 6.088 6.099 6.111 6.122 6.134 6.146 6.157 640
650 6.157 6.169 6.18 6.192 6.204 6.215 6.227 6.238 6.25 6.262 6.273 650
660 6.273 6.285 6.297 6.308 6.32 6.332 6.343 6.355 6.367 6.378 6.39 660
670 6.39 6.402 6.413 6.425 6.437 6.448 6.46 6.472 6.484 6.495 6.507 670
680 6.507 6.519 6.531 6.542 6.554 6.566 6.578 6.589 6.601 6.613 6.625 680
690 6.625 6.636 6.648 6.66 6.672 6.684 6.695 6.707 6.719 6.731 6.743 690
700 6.743 6.755 6.766 6.778 6.79 6.802 6.814 6.826 6.838 6.849 6.861 700
710 6.861 6.873 6.885 6.897 6.909 6.921 6.933 6.945 6.956 6.968 6.98 710
720 6.98 6.992 7.004 7.016 7.028 7.04 7.052 7.064 7.076 7.088 7.1 720
730 7.1 7.112 7.124 7.136 7.148 7.16 7.172 7.184 7.196 7.208 7.22 730
740 7.22 7.232 7.244 7.256 7.268 7.28 7.292 7.304 7.316 7.328 7.34 740
750 7.34 7.352 7.364 7.376 7.389 7.401 7.413 7.425 7.437 7.449 7.461 750
760 7.461 7.473 7.485 7.498 7.51 7.522 7.534 7.546 7.558 7.57 7.583 760
770 7.583 7.595 7.607 7.619 7.631 7.644 7.656 7.668 7.68 7.692 7.705 770
780 7.705 7.717 7.729 7.741 7.753 7.766 7.778 7.79 7.802 7.815 7.827 780
790 7.827 7.839 7.851 7.864 7.876 7.888 7.901 7.913 7.925 7.938 7.95 790
800 7.95 7.962 7.974 7.987 7.999 8.011 8.024 8.036 8.048 8.061 8.073 800
810 8.073 8.086 8.098 8.11 8.123 8.135 8.147 8.16 8.172 8.185 8.197 810
820 8.197 8.209 8.222 8.234 8.247 8.259 8.272 8.284 8.296 8.309 8.321 820
830 8.321 8.334 8.346 8.359 8.371 8.384 8.396 8.409 8.421 8.434 8.446 830
840 8.446 8.459 8.471 8.484 8.496 8.509 8.521 8.534 8.546 8.559 8.571 840
850 8.571 8.584 8.597 8.609 8.622 8.634 8.647 8.659 8.672 8.685 8.697 850
860 8.697 8.71 8.722 8.735 8.748 8.76 8.773 8.785 8.798 8.811 8.823 860
870 8.823 8.836 8.849 8.861 8.874 8.887 8.899 8.912 8.925 8.937 8.95 870
880 8.95 8.963 8.975 8.988 9.001 9.014 9.026 9.039 9.052 9.065 9.077 880
890 9.077 9.09 9.103 9.115 9.128 9.141 9.154 9.167 9.179 9.192 9.205 890
900 9.205 9.218 9.23 9.243 9.256 9.269 9.282 9.294 9.307 9.32 9.333 900
910 9.333 9.346 9.359 9.371 9.384 9.397 9.41 9.423 9.436 9.449 9.461 910
920 9.461 9.474 9.487 9.5 9.513 9.526 9.539 9.552 9.565 9.578 9.59 920
930 9.59 9.603 9.616 9.629 9.642 9.655 9.668 9.681 9.694 9.707 9.72 930
940 9.72 9.733 9.746 9.759 9.772 9.785 9.798 9.811 9.824 9.837 9.85 940
950 9.85 9.863 9.876 9.889 9.902 9.915 9.928 9.941 9.954 9.967 9.98 950
960 9.98 9.993 10.006 10.019 10.032 10.046 10.059 10.072 10.085 10.098 10.111 960
970 10.111 10.124 10.137 10.15 10.163 10.177 10.19 10.203 10.216 10.229 10.242 970
980 10.242 10.255 10.268 10.282 10.295 10.308 10.321 10.334 10.347 10.361 10.374 980
990 10.374 10.387 10.4 10.413 10.427 10.44 10.453 10.466 10.48 10.493 10.506 990
1000 10.506 10.519 10.532 10.546 10.559 10.572 10.585 10.599 10.612 10.625 10.638 1000
1010 10.638 10.652 10.665 10.678 10.692 10.705 10.718 10.731 10.745 10.758 10.771 1010
1020 10.771 10.785 10.798 10.811 10.825 10.838 10.851 10.865 10.878 10.891 10.905 1020
1030 10.905 10.918 10.932 10.945 10.958 10.972 10.985 10.998 11.012 11.025 11.039 1030
1040 11.039 11.052 11.065 11.079 11.092 11.106 11.119 11.132 11.146 11.159 11.173 1040
1050 11.173 11.186 11.2 11.213 11.227 11.24 11.253 11.267 11.28 11.294 11.307 1050
1060 11.307 11.321 11.334 11.348 11.361 11.375 11.388 11.402 11.415 11.429 11.442 1060
1070 11.442 11.456 11.469 11.483 11.496 11.51 11.524 11.537 11.551 11.564 11.578 1070
1080 11.578 11.591 11.605 11.618 11.632 11.646 11.659 11.673 11.686 11.7 11.714 1080
1090 11.714 11.727 11.741 11.754 11.768 11.782 11.795 11.809 11.822 11.836 11.85 1090
1100 11.85 11.863 11.877 11.891 11.904 11.918 11.931 11.945 11.959 11.972 11.986 1100
1110 11.986 12 12.013 12.027 12.041 12.054 12.068 12.082 12.096 12.109 12.123 1110
1120 12.123 12.137 12.15 12.164 12.178 12.191 12.205 12.219 12.233 12.246 12.26 1120
1130 12.26 12.274 12.288 12.301 12.315 12.329 12.342 12.356 12.37 12.384 12.397 1130
1140 12.397 12.411 12.425 12.439 12.453 12.466 12.48 12.494 12.508 12.521 12.535 1140
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
1500 17.451 17.465 17.479 17.493 17.507 17.521 17.535 17.549 17.563 17.577 17.591 1500
1510 17.591 17.605 17.619 17.633 17.647 17.661 17.676 17.69 17.704 17.718 17.732 1510
1520 17.732 17.746 17.76 17.774 17.788 17.802 17.816 17.83 17.844 17.858 17.872 1520
1530 17.872 17.886 17.9 17.914 17.928 17.942 17.956 17.97 17.984 17.998 18.012 1530
1540 18.012 18.026 18.04 18.054 18.068 18.082 18.096 18.11 18.124 18.138 18.152 1540
1550 18.152 18.166 18.18 18.194 18.208 18.222 18.236 18.25 18.264 18.278 18.292 1550
1560 18.292 18.306 18.32 18.334 18.348 18.362 18.376 18.39 18.404 18.417 18.431 1560
1570 18.431 18.445 18.459 18.473 18.487 18.501 18.515 18.529 18.543 18.557 18.571 1570
1580 18.571 18.585 18.599 18.613 18.627 18.64 18.654 18.668 18.682 18.696 18.71 1580
1590 18.71 18.724 18.738 18.752 18.766 18.779 18.793 18.807 18.821 18.835 18.849 1590
1600 18.849 18.863 18.877 18.891 18.904 18.918 18.932 18.946 18.96 18.974 18.988 1600
1610 18.988 19.002 19.015 19.029 19.043 19.057 19.071 19.085 19.098 19.112 19.126 1610
1620 19.126 19.14 19.154 19.168 19.181 19.195 19.209 19.223 19.237 19.25 19.264 1620
1630 19.264 19.278 19.292 19.306 19.319 19.333 19.347 19.361 19.375 19.388 19.402 1630
1640 19.402 19.416 19.43 19.444 19.457 19.471 19.485 19.499 19.512 19.526 19.54 1640
1650 19.54 19.554 19.567 19.581 19.595 19.609 19.622 19.636 19.65 19.663 19.677 1650
1660 19.677 19.691 19.705 19.718 19.732 19.746 19.759 19.773 19.787 19.8 19.814 1660
1670 19.814 19.828 19.841 19.855 19.869 19.882 19.896 19.91 19.923 19.937 19.951 1670
1680 19.951 19.964 19.978 19.992 20.005 20.019 20.032 20.046 20.06 20.073 20.087 1680
1690 20.087 20.1 20.114 20.127 20.141 20.154 20.168 20.181 20.195 20.208 20.222 1690
1700 20.222 20.235 20.249 20.262 20.275 20.289 20.302 20.316 20.329 20.342 20.356 1700
1710 20.356 20.369 20.382 20.396 20.409 20.422 20.436 20.449 20.462 20.475 20.488 1710
1720 20.488 20.502 20.515 20.528 20.541 20.554 20.567 20.581 20.594 20.607 20.62 1720
1730 20.62 20.633 20.646 20.659 20.672 20.685 20.698 20.711 20.724 20.736 20.749 1730
1740 20.749 20.762 20.775 20.788 20.801 20.813 20.826 20.839 20.852 20.864 20.877 1740
1750 20.877 20.89 20.902 20.915 20.928 20.94 20.953 20.965 20.978 20.99 21.003 1750
1760 21.003 21.015 21.027 21.04 21.052 21.065 21.077 21.089 21.101     1760






˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
回到温度检测技术参考索引首页
