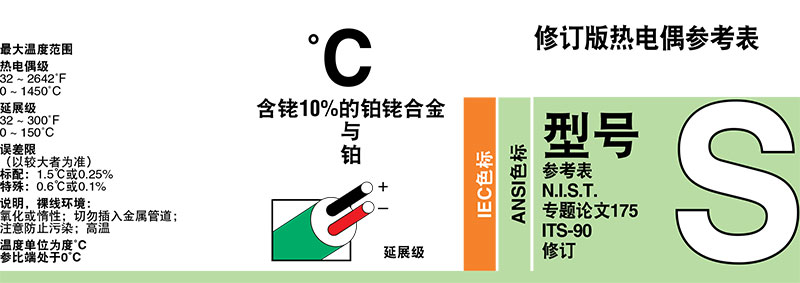

热电电压单位为毫伏
˚C -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 ˚C
-40 -0.236 -0.232 -0.228 -0.224 -0.219 -0.215 -0.211 -0.207 -0.203 -0.199 -0.194 -40
-30 -0.194 -0.19 -0.186 -0.181 -0.177 -0.173 -0.168 -0.164 -0.159 -0.155 -0.15 -30
-20 -0.15 -0.146 -0.141 -0.136 -0.132 -0.127 -0.122 -0.117 -0.113 -0.108 -0.103 -20
-10 -0.103 -0.098 -0.093 -0.088 -0.083 -0.078 -0.073 -0.068 -0.063 -0.058 -0.053 -10
0 -0.053 -0.048 -0.042 -0.037 -0.032 -0.027 -0.021 -0.016 -0.011 -0.005 0 0
0 0 0.005 0.011 0.016 0.022 0.027 0.033 0.038 0.044 0.05 0.055 0
10 0.055 0.061 0.067 0.072 0.078 0.084 0.09 0.095 0.101 0.107 0.113 10
20 0.113 0.119 0.125 0.131 0.137 0.143 0.149 0.155 0.161 0.167 0.173 20
30 0.173 0.179 0.185 0.191 0.197 0.204 0.21 0.216 0.222 0.229 0.235 30
40 0.235 0.241 0.248 0.254 0.26 0.267 0.273 0.28 0.286 0.292 0.299 40
50 0.299 0.305 0.312 0.319 0.325 0.332 0.338 0.345 0.352 0.358 0.365 50
60 0.365 0.372 0.378 0.385 0.392 0.399 0.405 0.412 0.419 0.426 0.433 60
70 0.433 0.44 0.446 0.453 0.46 0.467 0.474 0.481 0.488 0.495 0.502 70
80 0.502 0.509 0.516 0.523 0.53 0.538 0.545 0.552 0.559 0.566 0.573 80
90 0.573 0.58 0.588 0.595 0.602 0.609 0.617 0.624 0.631 0.639 0.646 90
100 0.646 0.653 0.661 0.668 0.675 0.683 0.69 0.698 0.705 0.713 0.72 100
110 0.72 0.727 0.735 0.743 0.75 0.758 0.765 0.773 0.78 0.788 0.795 110
120 0.795 0.803 0.811 0.818 0.826 0.834 0.841 0.849 0.857 0.865 0.872 120
130 0.872 0.88 0.888 0.896 0.903 0.911 0.919 0.927 0.935 0.942 0.95 130
140 0.95 0.958 0.966 0.974 0.982 0.99 0.998 1.006 1.013 1.021 1.029 140
150 1.029 1.037 1.045 1.053 1.061 1.069 1.077 1.085 1.094 1.102 1.11 150
160 1.11 1.118 1.126 1.134 1.142 1.15 1.158 1.167 1.175 1.183 1.191 160
170 1.191 1.199 1.207 1.216 1.224 1.232 1.24 1.249 1.257 1.265 1.273 170
180 1.273 1.282 1.29 1.298 1.307 1.315 1.323 1.332 1.34 1.348 1.357 180
190 1.357 1.365 1.373 1.382 1.39 1.399 1.407 1.415 1.424 1.432 1.441 190
200 1.441 1.449 1.458 1.466 1.475 1.483 1.492 1.5 1.509 1.517 1.526 200
210 1.526 1.534 1.543 1.551 1.56 1.569 1.577 1.586 1.594 1.603 1.612 210
220 1.612 1.62 1.629 1.638 1.646 1.655 1.663 1.672 1.681 1.69 1.698 220
230 1.698 1.707 1.716 1.724 1.733 1.742 1.751 1.759 1.768 1.777 1.786 230
240 1.786 1.794 1.803 1.812 1.821 1.829 1.838 1.847 1.856 1.865 1.874 240
250 1.874 1.882 1.891 1.9 1.909 1.918 1.927 1.936 1.944 1.953 1.962 250
260 1.962 1.971 1.98 1.989 1.998 2.007 2.016 2.025 2.034 2.043 2.052 260
270 2.052 2.061 2.07 2.078 2.087 2.096 2.105 2.114 2.123 2.132 2.141 270
280 2.141 2.151 2.16 2.169 2.178 2.187 2.196 2.205 2.214 2.223 2.232 280
290 2.232 2.241 2.25 2.259 2.268 2.277 2.287 2.296 2.305 2.314 2.323 290
300 2.323 2.332 2.341 2.35 2.36 2.369 2.378 2.387 2.396 2.405 2.415 300
310 2.415 2.424 2.433 2.442 2.451 2.461 2.47 2.479 2.488 2.497 2.507 310
320 2.507 2.516 2.525 2.534 2.544 2.553 2.562 2.571 2.581 2.59 2.599 320
330 2.599 2.609 2.618 2.627 2.636 2.646 2.655 2.664 2.674 2.683 2.692 330
340 2.692 2.702 2.711 2.72 2.73 2.739 2.748 2.758 2.767 2.776 2.786 340
350 2.786 2.795 2.805 2.814 2.823 2.833 2.842 2.851 2.861 2.87 2.88 350
360 2.88 2.889 2.899 2.908 2.917 2.927 2.936 2.946 2.955 2.965 2.974 360
370 2.974 2.983 2.993 3.002 3.012 3.021 3.031 3.04 3.05 3.059 3.069 370
380 3.069 3.078 3.088 3.097 3.107 3.116 3.126 3.135 3.145 3.154 3.164 380
390 3.164 3.173 3.183 3.192 3.202 3.212 3.221 3.231 3.24 3.25 3.259 390
400 3.259 3.269 3.279 3.288 3.298 3.307 3.317 3.326 3.336 3.346 3.355 400
410 3.355 3.365 3.374 3.384 3.394 3.403 3.413 3.423 3.432 3.442 3.451 410
420 3.451 3.461 3.471 3.48 3.49 3.5 3.509 3.519 3.529 3.538 3.548 420
430 3.548 3.558 3.567 3.577 3.587 3.596 3.606 3.616 3.626 3.635 3.645 430
440 3.645 3.655 3.664 3.674 3.684 3.694 3.703 3.713 3.723 3.732 3.742 440
450 3.742 3.752 3.762 3.771 3.781 3.791 3.801 3.81 3.82 3.83 3.84 450
460 3.84 3.85 3.859 3.869 3.879 3.889 3.898 3.908 3.918 3.928 3.938 460
470 3.938 3.947 3.957 3.967 3.977 3.987 3.997 4.006 4.016 4.026 4.036 470
480 4.036 4.046 4.056 4.065 4.075 4.085 4.095 4.105 4.115 4.125 4.134 480
490 4.134 4.144 4.154 4.164 4.174 4.184 4.194 4.204 4.213 4.223 4.233 490
500 4.233 4.243 4.253 4.263 4.273 4.283 4.293 4.303 4.313 4.323 4.332 500
510 4.332 4.342 4.352 4.362 4.372 4.382 4.392 4.402 4.412 4.422 4.432 510
520 4.432 4.442 4.452 4.462 4.472 4.482 4.492 4.502 4.512 4.522 4.532 520
530 4.532 4.542 4.552 4.562 4.572 4.582 4.592 4.602 4.612 4.622 4.632 530
540 4.632 4.642 4.652 4.662 4.672 4.682 4.692 4.702 4.712 4.722 4.732 540
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
1150 11.351 11.363 11.375 11.387 11.399 11.411 11.423 11.435 11.447 11.459 11.471 1150
1160 11.471 11.483 11.495 11.507 11.519 11.531 11.542 11.554 11.566 11.578 11.59 1160
1170 11.59 11.602 11.614 11.626 11.638 11.65 11.662 11.674 11.686 11.698 11.71 1170
1180 11.71 11.722 11.734 11.746 11.758 11.77 11.782 11.794 11.806 11.818 11.83 1180
1190 11.83 11.842 11.854 11.866 11.878 11.89 11.902 11.914 11.926 11.939 11.951 1190
1200 11.951 11.963 11.975 11.987 11.999 12.011 12.023 12.035 12.047 12.059 12.071 1200
1210 12.071 12.083 12.095 12.107 12.119 12.131 12.143 12.155 12.167 12.179 12.191 1210
1220 12.191 12.203 12.216 12.228 12.24 12.252 12.264 12.276 12.288 12.3 12.312 1220
1230 12.312 12.324 12.336 12.348 12.36 12.372 12.384 12.397 12.409 12.421 12.433 1230
1240 12.433 12.445 12.457 12.469 12.481 12.493 12.505 12.517 12.529 12.542 12.554 1240
1250 12.554 12.566 12.578 12.59 12.602 12.614 12.626 12.638 12.65 12.662 12.675 1250
1260 12.675 12.687 12.699 12.711 12.723 12.735 12.747 12.759 12.771 12.783 12.796 1260
1270 12.796 12.808 12.82 12.832 12.844 12.856 12.868 12.88 12.892 12.905 12.917 1270
1280 12.917 12.929 12.941 12.953 12.965 12.977 12.989 13.001 13.014 13.026 13.038 1280
1290 13.038 13.05 13.062 13.074 13.086 13.098 13.111 13.123 13.135 13.147 13.159 1290
1300 13.159 13.171 13.183 13.195 13.208 13.22 13.232 13.244 13.256 13.268 13.28 1300
1310 13.28 13.292 13.305 13.317 13.329 13.341 13.353 13.365 13.377 13.39 13.402 1310
1320 13.402 13.414 13.426 13.438 13.45 13.462 13.474 13.487 13.499 13.511 13.523 1320
1330 13.523 13.535 13.547 13.559 13.572 13.584 13.596 13.608 13.62 13.632 13.644 1330
1340 13.644 13.657 13.669 13.681 13.693 13.705 13.717 13.729 13.742 13.754 13.766 1340
1350 13.766 13.778 13.79 13.802 13.814 13.826 13.839 13.851 13.863 13.875 13.887 1350
1360 13.887 13.899 13.911 13.924 13.936 13.948 13.96 13.972 13.984 13.996 14.009 1360
1370 14.009 14.021 14.033 14.045 14.057 14.069 14.081 14.094 14.106 14.118 14.13 1370
1380 14.13 14.142 14.154 14.166 14.178 14.191 14.203 14.215 14.227 14.239 14.251 1380
1390 14.251 14.263 14.276 14.288 14.3 14.312 14.324 14.336 14.348 14.36 14.373 1390
1400 14.373 14.385 14.397 14.409 14.421 14.433 14.445 14.457 14.47 14.482 14.494 1400
1410 14.494 14.506 14.518 14.53 14.542 14.554 14.567 14.579 14.591 14.603 14.615 1410
1420 14.615 14.627 14.639 14.651 14.664 14.676 14.688 14.7 14.712 14.724 14.736 1420
1430 14.736 14.748 14.76 14.773 14.785 14.797 14.809 14.821 14.833 14.845 14.857 1430
1440 14.857 14.869 14.881 14.894 14.906 14.918 14.93 14.942 14.954 14.966 14.978 1440
1450 14.978 14.99 15.002 15.015 15.027 15.039 15.051 15.063 15.075 15.087 15.099 1450
1460 15.099 15.111 15.123 15.135 15.148 15.16 15.172 15.184 15.196 15.208 15.22 1460
1470 15.22 15.232 15.244 15.256 15.268 15.28 15.292 15.304 15.317 15.329 15.341 1470
1480 15.341 15.353 15.365 15.377 15.389 15.401 15.413 15.425 15.437 15.449 15.461 1480
1490 15.461 15.473 15.485 15.497 15.509 15.521 15.534 15.546 15.558 15.57 15.582 1490
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
550 4.732 4.742 4.752 4.762 4.772 4.782 4.793 4.803 4.813 4.823 4.833 550
560 4.833 4.843 4.853 4.863 4.873 4.883 4.893 4.904 4.914 4.924 4.934 560
570 4.934 4.944 4.954 4.964 4.974 4.984 4.995 5.005 5.015 5.025 5.035 570
580 5.035 5.045 5.055 5.066 5.076 5.086 5.096 5.106 5.116 5.127 5.137 580
590 5.137 5.147 5.157 5.167 5.178 5.188 5.198 5.208 5.218 5.228 5.239 590
600 5.239 5.249 5.259 5.269 5.28 5.29 5.3 5.31 5.32 5.331 5.341 600
610 5.341 5.351 5.361 5.372 5.382 5.392 5.402 5.413 5.423 5.433 5.443 610
620 5.443 5.454 5.464 5.474 5.485 5.495 5.505 5.515 5.526 5.536 5.546 620
630 5.546 5.557 5.567 5.577 5.588 5.598 5.608 5.618 5.629 5.639 5.649 630
640 5.649 5.66 5.67 5.68 5.691 5.701 5.712 5.722 5.732 5.743 5.753 640
650 5.753 5.763 5.774 5.784 5.794 5.805 5.815 5.826 5.836 5.846 5.857 650
660 5.857 5.867 5.878 5.888 5.898 5.909 5.919 5.93 5.94 5.95 5.961 660
670 5.961 5.971 5.982 5.992 6.003 6.013 6.024 6.034 6.044 6.055 6.065 670
680 6.065 6.076 6.086 6.097 6.107 6.118 6.128 6.139 6.149 6.16 6.17 680
690 6.17 6.181 6.191 6.202 6.212 6.223 6.233 6.244 6.254 6.265 6.275 690
700 6.275 6.286 6.296 6.307 6.317 6.328 6.338 6.349 6.36 6.37 6.381 700
710 6.381 6.391 6.402 6.412 6.423 6.434 6.444 6.455 6.465 6.476 6.486 710
720 6.486 6.497 6.508 6.518 6.529 6.539 6.55 6.561 6.571 6.582 6.593 720
730 6.593 6.603 6.614 6.624 6.635 6.646 6.656 6.667 6.678 6.688 6.699 730
740 6.699 6.71 6.72 6.731 6.742 6.752 6.763 6.774 6.784 6.795 6.806 740
750 6.806 6.817 6.827 6.838 6.849 6.859 6.87 6.881 6.892 6.902 6.913 750
760 6.913 6.924 6.934 6.945 6.956 6.967 6.977 6.988 6.999 7.01 7.02 760
770 7.02 7.031 7.042 7.053 7.064 7.074 7.085 7.096 7.107 7.117 7.128 770
780 7.128 7.139 7.15 7.161 7.172 7.182 7.193 7.204 7.215 7.226 7.236 780
790 7.236 7.247 7.258 7.269 7.28 7.291 7.302 7.312 7.323 7.334 7.345 790
800 7.345 7.356 7.367 7.378 7.388 7.399 7.41 7.421 7.432 7.443 7.454 800
810 7.454 7.465 7.476 7.487 7.497 7.508 7.519 7.53 7.541 7.552 7.563 810
820 7.563 7.574 7.585 7.596 7.607 7.618 7.629 7.64 7.651 7.662 7.673 820
830 7.673 7.684 7.695 7.706 7.717 7.728 7.739 7.75 7.761 7.772 7.783 830
840 7.783 7.794 7.805 7.816 7.827 7.838 7.849 7.86 7.871 7.882 7.893 840
850 7.893 7.904 7.915 7.926 7.937 7.948 7.959 7.97 7.981 7.992 8.003 850
860 8.003 8.014 8.026 8.037 8.048 8.059 8.07 8.081 8.092 8.103 8.114 860
870 8.114 8.125 8.137 8.148 8.159 8.17 8.181 8.192 8.203 8.214 8.226 870
880 8.226 8.237 8.248 8.259 8.27 8.281 8.293 8.304 8.315 8.326 8.337 880
890 8.337 8.348 8.36 8.371 8.382 8.393 8.404 8.416 8.427 8.438 8.449 890
900 8.449 8.46 8.472 8.483 8.494 8.505 8.517 8.528 8.539 8.55 8.562 900
910 8.562 8.573 8.584 8.595 8.607 8.618 8.629 8.64 8.652 8.663 8.674 910
920 8.674 8.685 8.697 8.708 8.719 8.731 8.742 8.753 8.765 8.776 8.787 920
930 8.787 8.798 8.81 8.821 8.832 8.844 8.855 8.866 8.878 8.889 8.9 930
940 8.9 8.912 8.923 8.935 8.946 8.957 8.969 8.98 8.991 9.003 9.014 940
950 9.014 9.025 9.037 9.048 9.06 9.071 9.082 9.094 9.105 9.117 9.128 950
960 9.128 9.139 9.151 9.162 9.174 9.185 9.197 9.208 9.219 9.231 9.242 960
970 9.242 9.254 9.265 9.277 9.288 9.3 9.311 9.323 9.334 9.345 9.357 970
980 9.357 9.368 9.38 9.391 9.403 9.414 9.426 9.437 9.449 9.46 9.472 980
990 9.472 9.483 9.495 9.506 9.518 9.529 9.541 9.552 9.564 9.576 9.587 990
1000 9.587 9.599 9.61 9.622 9.633 9.645 9.656 9.668 9.68 9.691 9.703 1000
1010 9.703 9.714 9.726 9.737 9.749 9.761 9.772 9.784 9.795 9.807 9.819 1010
1020 9.819 9.83 9.842 9.853 9.865 9.877 9.888 9.9 9.911 9.923 9.935 1020
1030 9.935 9.946 9.958 9.97 9.981 9.993 10.005 10.016 10.028 10.04 10.051 1030
1040 10.051 10.063 10.075 10.086 10.098 10.11 10.121 10.133 10.145 10.156 10.168 1040
1050 10.168 10.18 10.191 10.203 10.215 10.227 10.238 10.25 10.262 10.273 10.285 1050
1060 10.285 10.297 10.309 10.32 10.332 10.344 10.356 10.367 10.379 10.391 10.403 1060
1070 10.403 10.414 10.426 10.438 10.45 10.461 10.473 10.485 10.497 10.509 10.52 1070
1080 10.52 10.532 10.544 10.556 10.567 10.579 10.591 10.603 10.615 10.626 10.638 1080
1090 10.638 10.65 10.662 10.674 10.686 10.697 10.709 10.721 10.733 10.745 10.757 1090
1100 10.757 10.768 10.78 10.792 10.804 10.816 10.828 10.839 10.851 10.863 10.875 1100
1110 10.875 10.887 10.899 10.911 10.922 10.934 10.946 10.958 10.97 10.982 10.994 1110
1120 10.994 11.006 11.017 11.029 11.041 11.053 11.065 11.077 11.089 11.101 11.113 1120
1130 11.113 11.125 11.136 11.148 11.16 11.172 11.184 11.196 11.208 11.22 11.232 1130
1140 11.232 11.244 11.256 11.268 11.28 11.291 11.303 11.315 11.327 11.339 11.351 1140
˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
1500 15.582 15.594 15.606 15.618 15.63 15.642 15.654 15.666 15.678 15.69 15.702 1500
1510 15.702 15.714 15.726 15.738 15.75 15.762 15.774 15.786 15.798 15.81 15.822 1510
1520 15.822 15.834 15.846 15.858 15.87 15.882 15.894 15.906 15.918 15.93 15.942 1520
1530 15.942 15.954 15.966 15.978 15.99 16.002 16.014 16.026 16.038 16.05 16.062 1530
1540 16.062 16.074 16.086 16.098 16.11 16.122 16.134 16.146 16.158 16.17 16.182 1540
1550 16.182 16.194 16.205 16.217 16.229 16.241 16.253 16.265 16.277 16.289 16.301 1550
1560 16.301 16.313 16.325 16.337 16.349 16.361 16.373 16.385 16.396 16.408 16.42 1560
1570 16.42 16.432 16.444 16.456 16.468 16.48 16.492 16.504 16.516 16.527 16.539 1570
1580 16.539 16.551 16.563 16.575 16.587 16.599 16.611 16.623 16.634 16.646 16.658 1580
1590 16.658 16.67 16.682 16.694 16.706 16.718 16.729 16.741 16.753 16.765 16.777 1590
1600 16.777 16.789 16.801 16.812 16.824 16.836 16.848 16.86 16.872 16.883 16.895 1600
1610 16.895 16.907 16.919 16.931 16.943 16.954 16.966 16.978 16.99 17.002 17.013 1610
1620 17.013 17.025 17.037 17.049 17.061 17.072 17.084 17.096 17.108 17.12 17.131 1620
1630 17.131 17.143 17.155 17.167 17.178 17.19 17.202 17.214 17.225 17.237 17.249 1630
1640 17.249 17.261 17.272 17.284 17.296 17.308 17.319 17.331 17.343 17.355 17.366 1640
1650 17.366 17.378 17.39 17.401 17.413 17.425 17.437 17.448 17.46 17.472 17.483 1650
1660 17.483 17.495 17.507 17.518 17.53 17.542 17.553 17.565 17.577 17.588 17.6 1660
1670 17.6 17.612 17.623 17.635 17.647 17.658 17.67 17.682 17.693 17.705 17.717 1670
1680 17.717 17.728 17.74 17.751 17.763 17.775 17.786 17.798 17.809 17.821 17.832 1680
1690 17.832 17.844 17.855 17.867 17.878 17.89 17.901 17.913 17.924 17.936 17.947 1690
1700 17.947 17.959 17.97 17.982 17.993 18.004 18.016 18.027 18.039 18.05 18.061 1700
1710 18.061 18.073 18.084 18.095 18.107 18.118 18.129 18.14 18.152 18.163 18.174 1710
1720 18.174 18.185 18.196 18.208 18.219 18.23 18.241 18.252 18.263 18.274 18.285 1720
1730 18.285 18.297 18.308 18.319 18.33 18.341 18.352 18.362 18.373 18.384 18.395 1730
1740 18.395 18.406 18.417 18.428 18.439 18.449 18.46 18.471 18.482 18.493 18.503 1740
1750 18.503 18.514 18.525 18.535 18.546 18.557 18.567 18.578 18.588 18.599 18.609 1750
1760 18.609 18.62 18.63 18.641 18.651 18.661 18.672 18.682 18.693     1760






˚C 0 1 2 3 4 5 6 7 8 9 10 ˚C
回到温度检测技术参考索引首页
