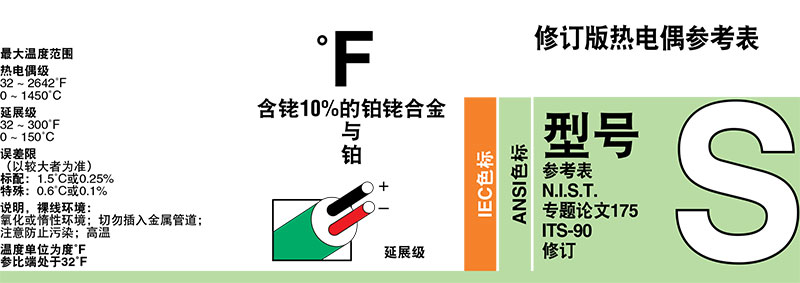

热电电压单位为毫伏
˚F -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 ˚F




-50     -0.236 -0.233 -0.231 -0.229 -0.227 -0.224 -0.222 -0.22 -0.218 -50
-40 -0.218 -0.215 -0.213 -0.211 -0.208 -0.206 -0.204 -0.201 -0.199 -0.197 -0.194 -40
-30 -0.194 -0.192 -0.19 -0.187 -0.185 -0.182 -0.18 -0.178 -0.175 -0.173 -0.17 -30
-20 -0.17 -0.168 -0.165 -0.163 -0.16 -0.158 -0.155 -0.153 -0.15 -0.148 -0.145 -20
-10 -0.145 -0.142 -0.14 -0.137 -0.135 -0.132 -0.129 -0.127 -0.124 -0.122 -0.119 -10
0 -0.119 -0.116 -0.114 -0.111 -0.108 -0.106 -0.103 -0.1 -0.097 -0.095 -0.092 0
0 -0.092 -0.089 -0.086 -0.084 -0.081 -0.078 -0.075 -0.073 -0.07 -0.067 -0.064 0
10 -0.064 -0.061 -0.058 -0.056 -0.053 -0.05 -0.047 -0.044 -0.041 -0.038 -0.035 10
20 -0.035 -0.033 -0.03 -0.027 -0.024 -0.021 -0.018 -0.015 -0.012 -0.009 -0.006 20
30 -0.006 -0.003 0 0.003 0.006 0.009 0.012 0.015 0.018 0.021 0.024 30
40 0.024 0.027 0.03 0.033 0.037 0.04 0.043 0.046 0.049 0.052 0.055 40
50 0.055 0.058 0.062 0.065 0.068 0.071 0.074 0.077 0.081 0.084 0.087 50
60 0.087 0.09 0.093 0.097 0.1 0.103 0.106 0.11 0.113 0.116 0.119 60
70 0.119 0.123 0.126 0.129 0.133 0.136 0.139 0.143 0.146 0.149 0.153 70
80 0.153 0.156 0.159 0.163 0.166 0.169 0.173 0.176 0.18 0.183 0.186 80
90 0.186 0.19 0.193 0.197 0.2 0.204 0.207 0.21 0.214 0.217 0.221 90
100 0.221 0.224 0.228 0.231 0.235 0.238 0.242 0.245 0.249 0.252 0.256 100
110 0.256 0.26 0.263 0.267 0.27 0.274 0.277 0.281 0.285 0.288 0.292 110
120 0.292 0.295 0.299 0.303 0.306 0.31 0.313 0.317 0.321 0.324 0.328 120
130 0.328 0.332 0.335 0.339 0.343 0.346 0.35 0.354 0.357 0.361 0.365 130
140 0.365 0.369 0.372 0.376 0.38 0.384 0.387 0.391 0.395 0.399 0.402 140
150 0.402 0.406 0.41 0.414 0.417 0.421 0.425 0.429 0.433 0.436 0.44 150
160 0.44 0.444 0.448 0.452 0.456 0.459 0.463 0.467 0.471 0.475 0.479 160
170 0.479 0.483 0.487 0.49 0.494 0.498 0.502 0.506 0.51 0.514 0.518 170
180 0.518 0.522 0.526 0.53 0.534 0.538 0.541 0.545 0.549 0.553 0.557 180
190 0.557 0.561 0.565 0.569 0.573 0.577 0.581 0.585 0.589 0.593 0.597 190
200 0.597 0.601 0.605 0.609 0.613 0.617 0.622 0.626 0.63 0.634 0.638 200
210 0.638 0.642 0.646 0.65 0.654 0.658 0.662 0.666 0.67 0.675 0.679 210
220 0.679 0.683 0.687 0.691 0.695 0.699 0.703 0.708 0.712 0.716 0.72 220
230 0.72 0.724 0.728 0.732 0.737 0.741 0.745 0.749 0.753 0.758 0.762 230
240 0.762 0.766 0.77 0.774 0.779 0.783 0.787 0.791 0.795 0.8 0.804 240
250 0.804 0.808 0.812 0.817 0.821 0.825 0.829 0.834 0.838 0.842 0.847 250
260 0.847 0.851 0.855 0.859 0.864 0.868 0.872 0.877 0.881 0.885 0.889 260
270 0.889 0.894 0.898 0.902 0.907 0.911 0.915 0.92 0.924 0.928 0.933 270
280 0.933 0.937 0.942 0.946 0.95 0.955 0.959 0.963 0.968 0.972 0.977 280
290 0.977 0.981 0.985 0.99 0.994 0.998 1.003 1.007 1.012 1.016 1.021 290
300 1.021 1.025 1.029 1.034 1.038 1.043 1.047 1.052 1.056 1.061 1.065 300
310 1.065 1.069 1.074 1.078 1.083 1.087 1.092 1.096 1.101 1.105 1.11 310
320 1.11 1.114 1.119 1.123 1.128 1.132 1.137 1.141 1.146 1.15 1.155 320
330 1.155 1.159 1.164 1.168 1.173 1.177 1.182 1.186 1.191 1.196 1.2 330
340 1.2 1.205 1.209 1.214 1.218 1.223 1.227 1.232 1.237 1.241 1.246 340
350 1.246 1.25 1.255 1.26 1.264 1.269 1.273 1.278 1.283 1.287 1.292 350
360 1.292 1.296 1.301 1.306 1.31 1.315 1.319 1.324 1.329 1.333 1.338 360
370 1.338 1.343 1.347 1.352 1.357 1.361 1.366 1.371 1.375 1.38 1.385 370
380 1.385 1.389 1.394 1.399 1.403 1.408 1.413 1.417 1.422 1.427 1.431 380
390 1.431 1.436 1.441 1.445 1.45 1.455 1.46 1.464 1.469 1.474 1.478 390
˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
900 4.058 4.063 4.069 4.074 4.08 4.085 4.091 4.096 4.102 4.107 4.113 900
910 4.113 4.118 4.123 4.129 4.134 4.14 4.145 4.151 4.156 4.162 4.167 910
920 4.167 4.173 4.178 4.184 4.189 4.195 4.2 4.206 4.211 4.217 4.222 920
930 4.222 4.228 4.233 4.239 4.244 4.25 4.255 4.261 4.266 4.272 4.277 930
940 4.277 4.283 4.288 4.294 4.299 4.305 4.31 4.316 4.321 4.327 4.332 940
950 4.332 4.338 4.343 4.349 4.355 4.36 4.366 4.371 4.377 4.382 4.388 950
960 4.388 4.393 4.399 4.404 4.41 4.415 4.421 4.426 4.432 4.437 4.443 960
970 4.443 4.449 4.454 4.46 4.465 4.471 4.476 4.482 4.487 4.493 4.498 970
980 4.498 4.504 4.51 4.515 4.521 4.526 4.532 4.537 4.543 4.548 4.554 980
990 4.554 4.559 4.565 4.571 4.576 4.582 4.587 4.593 4.598 4.604 4.61 990
1000 4.61 4.615 4.621 4.626 4.632 4.637 4.643 4.648 4.654 4.66 4.665 1000
1010 4.665 4.671 4.676 4.682 4.688 4.693 4.699 4.704 4.71 4.715 4.721 1010
1020 4.721 4.727 4.732 4.738 4.743 4.749 4.755 4.76 4.766 4.771 4.777 1020
1030 4.777 4.782 4.788 4.794 4.799 4.805 4.81 4.816 4.822 4.827 4.833 1030
1040 4.833 4.838 4.844 4.85 4.855 4.861 4.866 4.872 4.878 4.883 4.889 1040
1050 4.889 4.895 4.9 4.906 4.911 4.917 4.923 4.928 4.934 4.939 4.945 1050
1060 4.945 4.951 4.956 4.962 4.968 4.973 4.979 4.984 4.99 4.996 5.001 1060
1070 5.001 5.007 5.013 5.018 5.024 5.03 5.035 5.041 5.046 5.052 5.058 1070
1080 5.058 5.063 5.069 5.075 5.08 5.086 5.092 5.097 5.103 5.109 5.114 1080
1090 5.114 5.12 5.125 5.131 5.137 5.142 5.148 5.154 5.159 5.165 5.171 1090
1100 5.171 5.176 5.182 5.188 5.193 5.199 5.205 5.21 5.216 5.222 5.227 1100
1110 5.227 5.233 5.239 5.244 5.25 5.256 5.261 5.267 5.273 5.278 5.284 1110
1120 5.284 5.29 5.295 5.301 5.307 5.312 5.318 5.324 5.33 5.335 5.341 1120
1130 5.341 5.347 5.352 5.358 5.364 5.369 5.375 5.381 5.386 5.392 5.398 1130
1140 5.398 5.404 5.409 5.415 5.421 5.426 5.432 5.438 5.443 5.449 5.455 1140
1150 5.455 5.461 5.466 5.472 5.478 5.483 5.489 5.495 5.501 5.506 5.512 1150
1160 5.512 5.518 5.523 5.529 5.535 5.541 5.546 5.552 5.558 5.563 5.569 1160
1170 5.569 5.575 5.581 5.586 5.592 5.598 5.604 5.609 5.615 5.621 5.627 1170
1180 5.627 5.632 5.638 5.644 5.649 5.655 5.661 5.667 5.672 5.678 5.684 1180
1190 5.684 5.69 5.695 5.701 5.707 5.713 5.718 5.724 5.73 5.736 5.741 1190
1200 5.741 5.747 5.753 5.759 5.764 5.77 5.776 5.782 5.788 5.793 5.799 1200
1210 5.799 5.805 5.811 5.816 5.822 5.828 5.834 5.839 5.845 5.851 5.857 1210
1220 5.857 5.863 5.868 5.874 5.88 5.886 5.891 5.897 5.903 5.909 5.915 1220
1230 5.915 5.92 5.926 5.932 5.938 5.944 5.949 5.955 5.961 5.967 5.972 1230
1240 5.972 5.978 5.984 5.99 5.996 6.001 6.007 6.013 6.019 6.025 6.03 1240
1250 6.03 6.036 6.042 6.048 6.054 6.06 6.065 6.071 6.077 6.083 6.089 1250
1260 6.089 6.094 6.1 6.106 6.112 6.118 6.124 6.129 6.135 6.141 6.147 1260
1270 6.147 6.153 6.158 6.164 6.17 6.176 6.182 6.188 6.193 6.199 6.205 1270
1280 6.205 6.211 6.217 6.223 6.228 6.234 6.24 6.246 6.252 6.258 6.264 1280
1290 6.264 6.269 6.275 6.281 6.287 6.293 6.299 6.305 6.31 6.316 6.322 1290
1300 6.322 6.328 6.334 6.34 6.346 6.351 6.357 6.363 6.369 6.375 6.381 1300
1310 6.381 6.387 6.392 6.398 6.404 6.41 6.416 6.422 6.428 6.434 6.439 1310
1320 6.439 6.445 6.451 6.457 6.463 6.469 6.475 6.481 6.486 6.492 6.498 1320
1330 6.498 6.504 6.51 6.516 6.522 6.528 6.534 6.539 6.545 6.551 6.557 1330
1340 6.557 6.563 6.569 6.575 6.581 6.587 6.593 6.598 6.604 6.61 6.616 1340
1350 6.616 6.622 6.628 6.634 6.64 6.646 6.652 6.658 6.664 6.669 6.675 1350
1360 6.675 6.681 6.687 6.693 6.699 6.705 6.711 6.717 6.723 6.729 6.735 1360
1370 6.735 6.741 6.746 6.752 6.758 6.764 6.77 6.776 6.782 6.788 6.794 1370
1380 6.794 6.8 6.806 6.812 6.818 6.824 6.83 6.836 6.842 6.847 6.853 1380
1390 6.853 6.859 6.865 6.871 6.877 6.883 6.889 6.895 6.901 6.907 6.913 1390
˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
1900 10.025 10.032 10.038 10.045 10.051 10.058 10.064 10.071 10.077 10.084 10.09 1900
1910 10.09 10.097 10.103 10.11 10.116 10.123 10.129 10.136 10.142 10.149 10.155 1910
1920 10.155 10.162 10.168 10.175 10.181 10.188 10.194 10.201 10.207 10.214 10.22 1920
1930 10.22 10.227 10.233 10.24 10.246 10.253 10.259 10.266 10.272 10.279 10.285 1930
1940 10.285 10.292 10.298 10.305 10.311 10.318 10.324 10.331 10.337 10.344 10.35 1940
1950 10.35 10.357 10.363 10.37 10.376 10.383 10.39 10.396 10.403 10.409 10.416 1950
1960 10.416 10.422 10.429 10.435 10.442 10.448 10.455 10.461 10.468 10.475 10.481 1960
1970 10.481 10.488 10.494 10.501 10.507 10.514 10.52 10.527 10.533 10.54 10.547 1970
1980 10.547 10.553 10.56 10.566 10.573 10.579 10.586 10.592 10.599 10.606 10.612 1980
1990 10.612 10.619 10.625 10.632 10.638 10.645 10.651 10.658 10.665 10.671 10.678 1990
2000 10.678 10.684 10.691 10.697 10.704 10.711 10.717 10.724 10.73 10.737 10.743 2000
2010 10.743 10.75 10.757 10.763 10.77 10.776 10.783 10.789 10.796 10.803 10.809 2010
2020 10.809 10.816 10.822 10.829 10.836 10.842 10.849 10.855 10.862 10.868 10.875 2020
2030 10.875 10.882 10.888 10.895 10.901 10.908 10.915 10.921 10.928 10.934 10.941 2030
2040 10.941 10.948 10.954 10.961 10.967 10.974 10.981 10.987 10.994 11 11.007 2040
2050 11.007 11.014 11.02 11.027 11.033 11.04 11.047 11.053 11.06 11.066 11.073 2050
2060 11.073 11.08 11.086 11.093 11.099 11.106 11.113 11.119 11.126 11.132 11.139 2060
2070 11.139 11.146 11.152 11.159 11.166 11.172 11.179 11.185 11.192 11.199 11.205 2070
2080 11.205 11.212 11.219 11.225 11.232 11.238 11.245 11.252 11.258 11.265 11.272 2080
2090 11.272 11.278 11.285 11.291 11.298 11.305 11.311 11.318 11.325 11.331 11.338 2090
2100 11.338 11.345 11.351 11.358 11.364 11.371 11.378 11.384 11.391 11.398 11.404 2100
2110 11.404 11.411 11.418 11.424 11.431 11.437 11.444 11.451 11.457 11.464 11.471 2110
2120 11.471 11.477 11.484 11.491 11.497 11.504 11.511 11.517 11.524 11.531 11.537 2120
2130 11.537 11.544 11.55 11.557 11.564 11.57 11.577 11.584 11.59 11.597 11.604 2130
2140 11.604 11.61 11.617 11.624 11.63 11.637 11.644 11.65 11.657 11.664 11.67 2140
2150 11.67 11.677 11.684 11.69 11.697 11.704 11.71 11.717 11.724 11.73 11.737 2150
2160 11.737 11.744 11.75 11.757 11.764 11.77 11.777 11.784 11.79 11.797 11.804 2160
2170 11.804 11.81 11.817 11.824 11.83 11.837 11.844 11.85 11.857 11.864 11.87 2170
2180 11.87 11.877 11.884 11.89 11.897 11.904 11.91 11.917 11.924 11.931 11.937 2180
2190 11.937 11.944 11.951 11.957 11.964 11.971 11.977 11.984 11.991 11.997 12.004 2190
2200 12.004 12.011 12.017 12.024 12.031 12.037 12.044 12.051 12.058 12.064 12.071 2200
2210 12.071 12.078 12.084 12.091 12.098 12.104 12.111 12.118 12.124 12.131 12.138 2210
2220 12.138 12.145 12.151 12.158 12.165 12.171 12.178 12.185 12.191 12.198 12.205 2220
2230 12.205 12.211 12.218 12.225 12.232 12.238 12.245 12.252 12.258 12.265 12.272 2230
2240 12.272 12.278 12.285 12.292 12.299 12.305 12.312 12.319 12.325 12.332 12.339 2240
2250 12.339 12.346 12.352 12.359 12.366 12.372 12.379 12.386 12.392 12.399 12.406 2250
2260 12.406 12.413 12.419 12.426 12.433 12.439 12.446 12.453 12.46 12.466 12.473 2260
2270 12.473 12.48 12.486 12.493 12.5 12.507 12.513 12.52 12.527 12.533 12.54 2270
2280 12.54 12.547 12.554 12.56 12.567 12.574 12.58 12.587 12.594 12.601 12.607 2280
2290 12.607 12.614 12.621 12.627 12.634 12.641 12.648 12.654 12.661 12.668 12.675 2290
2300 12.675 12.681 12.688 12.695 12.701 12.708 12.715 12.722 12.728 12.735 12.742 2300
2310 12.742 12.748 12.755 12.762 12.769 12.775 12.782 12.789 12.796 12.802 12.809 2310
2320 12.809 12.816 12.822 12.829 12.836 12.843 12.849 12.856 12.863 12.87 12.876 2320
2330 12.876 12.883 12.89 12.896 12.903 12.91 12.917 12.923 12.93 12.937 12.944 2330
2340 12.944 12.95 12.957 12.964 12.971 12.977 12.984 12.991 12.997 13.004 13.011 2340
2350 13.011 13.018 13.024 13.031 13.038 13.045 13.051 13.058 13.065 13.072 13.078 2350
2360 13.078 13.085 13.092 13.098 13.105 13.112 13.119 13.125 13.132 13.139 13.146 2360
2370 13.146 13.152 13.159 13.166 13.173 13.179 13.186 13.193 13.199 13.206 13.213 2370
2380 13.213 13.22 13.226 13.233 13.24 13.247 13.253 13.26 13.267 13.274 13.28 2380
2390 13.28 13.287 13.294 13.301 13.307 13.314 13.321 13.328 13.334 13.341 13.348 2390
˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
2900 16.698 16.704 16.711 16.718 16.724 16.731 16.737 16.744 16.751 16.757 16.764 2900
2910 16.764 16.77 16.777 16.783 16.79 16.797 16.803 16.81 16.816 16.823 16.829 2910
2920 16.829 16.836 16.843 16.849 16.856 16.862 16.869 16.876 16.882 16.889 16.895 2920
2930 16.895 16.902 16.908 16.915 16.922 16.928 16.935 16.941 16.948 16.954 16.961 2930
2940 16.961 16.967 16.974 16.981 16.987 16.994 17 17.007 17.013 17.02 17.026 2940
2950 17.026 17.033 17.04 17.046 17.053 17.059 17.066 17.072 17.079 17.085 17.092 2950
2960 17.092 17.099 17.105 17.112 17.118 17.125 17.131 17.138 17.144 17.151 17.157 2960
2970 17.157 17.164 17.171 17.177 17.184 17.19 17.197 17.203 17.21 17.216 17.223 2970
2980 17.223 17.229 17.236 17.242 17.249 17.255 17.262 17.268 17.275 17.282 17.288 2980
2990 17.288 17.295 17.301 17.308 17.314 17.321 17.327 17.334 17.34 17.347 17.353 2990
3000 17.353 17.36 17.366 17.373 17.379 17.386 17.392 17.399 17.405 17.412 17.418 3000
3010 17.418 17.425 17.431 17.438 17.444 17.451 17.457 17.464 17.47 17.477 17.483 3010
3020 17.483 17.49 17.496 17.503 17.509 17.516 17.522 17.529 17.535 17.542 17.548 3020
3030 17.548 17.555 17.561 17.568 17.574 17.581 17.587 17.594 17.6 17.607 17.613 3030
3040 17.613 17.62 17.626 17.633 17.639 17.645 17.652 17.658 17.665 17.671 17.678 3040
3050 17.678 17.684 17.691 17.697 17.704 17.71 17.717 17.723 17.729 17.736 17.742 3050
3060 17.742 17.749 17.755 17.762 17.768 17.775 17.781 17.787 17.794 17.8 17.807 3060
3070 17.807 17.813 17.819 17.826 17.832 17.839 17.845 17.852 17.858 17.864 17.871 3070
3080 17.871 17.877 17.884 17.89 17.896 17.903 17.909 17.915 17.922 17.928 17.935 3080
3090 17.935 17.941 17.947 17.954 17.96 17.966 17.973 17.979 17.985 17.992 17.998 3090
˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
400 1.478 1.483 1.488 1.493 1.497 1.502 1.507 1.512 1.516 1.521 1.526 400
410 1.526 1.531 1.535 1.54 1.545 1.55 1.554 1.559 1.564 1.569 1.573 410
420 1.573 1.578 1.583 1.588 1.592 1.597 1.602 1.607 1.612 1.616 1.621 420
430 1.621 1.626 1.631 1.636 1.64 1.645 1.65 1.655 1.66 1.664 1.669 430
440 1.669 1.674 1.679 1.684 1.689 1.693 1.698 1.703 1.708 1.713 1.718 440
450 1.718 1.722 1.727 1.732 1.737 1.742 1.747 1.752 1.756 1.761 1.766 450
460 1.766 1.771 1.776 1.781 1.786 1.79 1.795 1.8 1.805 1.81 1.815 460
470 1.815 1.82 1.825 1.829 1.834 1.839 1.844 1.849 1.854 1.859 1.864 470
480 1.864 1.869 1.874 1.878 1.883 1.888 1.893 1.898 1.903 1.908 1.913 480
490 1.913 1.918 1.923 1.928 1.933 1.938 1.942 1.947 1.952 1.957 1.962 490
500 1.962 1.967 1.972 1.977 1.982 1.987 1.992 1.997 2.002 2.007 2.012 500
510 2.012 2.017 2.022 2.027 2.032 2.037 2.042 2.047 2.052 2.057 2.062 510
520 2.062 2.067 2.072 2.076 2.081 2.086 2.091 2.096 2.101 2.106 2.111 520
530 2.111 2.116 2.121 2.126 2.131 2.136 2.141 2.147 2.152 2.157 2.162 530
540 2.162 2.167 2.172 2.177 2.182 2.187 2.192 2.197 2.202 2.207 2.212 540
550 2.212 2.217 2.222 2.227 2.232 2.237 2.242 2.247 2.252 2.257 2.262 550
560 2.262 2.267 2.272 2.277 2.283 2.288 2.293 2.298 2.303 2.308 2.313 560
570 2.313 2.318 2.323 2.328 2.333 2.338 2.343 2.348 2.354 2.359 2.364 570
580 2.364 2.369 2.374 2.379 2.384 2.389 2.394 2.399 2.404 2.41 2.415 580
590 2.415 2.42 2.425 2.43 2.435 2.44 2.445 2.45 2.455 2.461 2.466 590
600 2.466 2.471 2.476 2.481 2.486 2.491 2.496 2.502 2.507 2.512 2.517 600
610 2.517 2.522 2.527 2.532 2.537 2.543 2.548 2.553 2.558 2.563 2.568 610
620 2.568 2.574 2.579 2.584 2.589 2.594 2.599 2.604 2.61 2.615 2.62 620
630 2.62 2.625 2.63 2.635 2.641 2.646 2.651 2.656 2.661 2.666 2.672 630
640 2.672 2.677 2.682 2.687 2.692 2.697 2.703 2.708 2.713 2.718 2.723 640
650 2.723 2.729 2.734 2.739 2.744 2.749 2.755 2.76 2.765 2.77 2.775 650
660 2.775 2.781 2.786 2.791 2.796 2.801 2.807 2.812 2.817 2.822 2.827 660
670 2.827 2.833 2.838 2.843 2.848 2.854 2.859 2.864 2.869 2.874 2.88 670
680 2.88 2.885 2.89 2.895 2.901 2.906 2.911 2.916 2.922 2.927 2.932 680
690 2.932 2.937 2.943 2.948 2.953 2.958 2.964 2.969 2.974 2.979 2.985 690
700 2.985 2.99 2.995 3 3.006 3.011 3.016 3.021 3.027 3.032 3.037 700
710 3.037 3.042 3.048 3.053 3.058 3.063 3.069 3.074 3.079 3.085 3.09 710
720 3.09 3.095 3.1 3.106 3.111 3.116 3.122 3.127 3.132 3.137 3.143 720
730 3.143 3.148 3.153 3.159 3.164 3.169 3.174 3.18 3.185 3.19 3.196 730
740 3.196 3.201 3.206 3.212 3.217 3.222 3.227 3.233 3.238 3.243 3.249 740
750 3.249 3.254 3.259 3.265 3.27 3.275 3.281 3.286 3.291 3.297 3.302 750
760 3.302 3.307 3.313 3.318 3.323 3.329 3.334 3.339 3.345 3.35 3.355 760
770 3.355 3.361 3.366 3.371 3.377 3.382 3.387 3.393 3.398 3.403 3.409 770
780 3.409 3.414 3.419 3.425 3.43 3.435 3.441 3.446 3.451 3.457 3.462 780
790 3.462 3.468 3.473 3.478 3.484 3.489 3.494 3.5 3.505 3.51 3.516 790
800 3.516 3.521 3.527 3.532 3.537 3.543 3.548 3.553 3.559 3.564 3.57 800
810 3.57 3.575 3.58 3.586 3.591 3.596 3.602 3.607 3.613 3.618 3.623 810
820 3.623 3.629 3.634 3.64 3.645 3.65 3.656 3.661 3.667 3.672 3.677 820
830 3.677 3.683 3.688 3.694 3.699 3.704 3.71 3.715 3.721 3.726 3.731 830
840 3.731 3.737 3.742 3.748 3.753 3.758 3.764 3.769 3.775 3.78 3.786 840
850 3.786 3.791 3.796 3.802 3.807 3.813 3.818 3.823 3.829 3.834 3.84 850
860 3.84 3.845 3.851 3.856 3.862 3.867 3.872 3.878 3.883 3.889 3.894 860
870 3.894 3.9 3.905 3.91 3.916 3.921 3.927 3.932 3.938 3.943 3.949 870
880 3.949 3.954 3.959 3.965 3.97 3.976 3.981 3.987 3.992 3.998 4.003 880
890 4.003 4.009 4.014 4.02 4.025 4.03 4.036 4.041 4.047 4.052 4.058 890
˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
1400 6.913 6.919 6.925 6.931 6.937 6.943 6.949 6.955 6.961 6.967 6.973 1400
1410 6.973 6.979 6.985 6.991 6.997 7.003 7.008 7.014 7.02 7.026 7.032 1410
1420 7.032 7.038 7.044 7.05 7.056 7.062 7.068 7.074 7.08 7.086 7.092 1420
1430 7.092 7.098 7.104 7.11 7.116 7.122 7.128 7.134 7.14 7.146 7.152 1430
1440 7.152 7.158 7.164 7.17 7.176 7.182 7.188 7.194 7.2 7.206 7.212 1440
1450 7.212 7.218 7.224 7.23 7.236 7.242 7.249 7.255 7.261 7.267 7.273 1450
1460 7.273 7.279 7.285 7.291 7.297 7.303 7.309 7.315 7.321 7.327 7.333 1460
1470 7.333 7.339 7.345 7.351 7.357 7.363 7.369 7.375 7.381 7.387 7.393 1470
1480 7.393 7.399 7.405 7.411 7.418 7.424 7.43 7.436 7.442 7.448 7.454 1480
1490 7.454 7.46 7.466 7.472 7.478 7.484 7.49 7.496 7.502 7.508 7.514 1490
1500 7.514 7.521 7.527 7.533 7.539 7.545 7.551 7.557 7.563 7.569 7.575 1500
1510 7.575 7.581 7.587 7.593 7.6 7.606 7.612 7.618 7.624 7.63 7.636 1510
1520 7.636 7.642 7.648 7.654 7.66 7.667 7.673 7.679 7.685 7.691 7.697 1520
1530 7.697 7.703 7.709 7.715 7.721 7.728 7.734 7.74 7.746 7.752 7.758 1530
1540 7.758 7.764 7.77 7.776 7.783 7.789 7.795 7.801 7.807 7.813 7.819 1540
1550 7.819 7.825 7.832 7.838 7.844 7.85 7.856 7.862 7.868 7.874 7.881 1550
1560 7.881 7.887 7.893 7.899 7.905 7.911 7.917 7.923 7.93 7.936 7.942 1560
1570 7.942 7.948 7.954 7.96 7.966 7.973 7.979 7.985 7.991 7.997 8.003 1570
1580 8.003 8.01 8.016 8.022 8.028 8.034 8.04 8.047 8.053 8.059 8.065 1580
1590 8.065 8.071 8.077 8.083 8.09 8.096 8.102 8.108 8.114 8.121 8.127 1590
1600 8.127 8.133 8.139 8.145 8.151 8.158 8.164 8.17 8.176 8.182 8.189 1600
1610 8.189 8.195 8.201 8.207 8.213 8.219 8.226 8.232 8.238 8.244 8.25 1610
1620 8.25 8.257 8.263 8.269 8.275 8.281 8.288 8.294 8.3 8.306 8.312 1620
1630 8.312 8.319 8.325 8.331 8.337 8.343 8.35 8.356 8.362 8.368 8.375 1630
1640 8.375 8.381 8.387 8.393 8.399 8.406 8.412 8.418 8.424 8.431 8.437 1640
1650 8.437 8.443 8.449 8.455 8.462 8.468 8.474 8.48 8.487 8.493 8.499 1650
1660 8.499 8.505 8.512 8.518 8.524 8.53 8.537 8.543 8.549 8.555 8.562 1660
1670 8.562 8.568 8.574 8.58 8.587 8.593 8.599 8.605 8.612 8.618 8.624 1670
1680 8.624 8.63 8.637 8.643 8.649 8.655 8.662 8.668 8.674 8.68 8.687 1680
1690 8.687 8.693 8.699 8.706 8.712 8.718 8.724 8.731 8.737 8.743 8.749 1690
1700 8.749 8.756 8.762 8.768 8.775 8.781 8.787 8.793 8.8 8.806 8.812 1700
1710 8.812 8.819 8.825 8.831 8.837 8.844 8.85 8.856 8.863 8.869 8.875 1710
1720 8.875 8.882 8.888 8.894 8.9 8.907 8.913 8.919 8.926 8.932 8.938 1720
1730 8.938 8.945 8.951 8.957 8.964 8.97 8.976 8.983 8.989 8.995 9.001 1730
1740 9.001 9.008 9.014 9.02 9.027 9.033 9.039 9.046 9.052 9.058 9.065 1740
1750 9.065 9.071 9.077 9.084 9.09 9.096 9.103 9.109 9.115 9.122 9.128 1750
1760 9.128 9.134 9.141 9.147 9.153 9.16 9.166 9.172 9.179 9.185 9.192 1760
1770 9.192 9.198 9.204 9.211 9.217 9.223 9.23 9.236 9.242 9.249 9.255 1770
1780 9.255 9.261 9.268 9.274 9.281 9.287 9.293 9.3 9.306 9.312 9.319 1780
1790 9.319 9.325 9.331 9.338 9.344 9.351 9.357 9.363 9.37 9.376 9.382 1790
1800 9.382 9.389 9.395 9.402 9.408 9.414 9.421 9.427 9.434 9.44 9.446 1800
1810 9.446 9.453 9.459 9.465 9.472 9.478 9.485 9.491 9.497 9.504 9.51 1810
1820 9.51 9.517 9.523 9.529 9.536 9.542 9.549 9.555 9.561 9.568 9.574 1820
1830 9.574 9.581 9.587 9.594 9.6 9.606 9.613 9.619 9.626 9.632 9.638 1830
1840 9.638 9.645 9.651 9.658 9.664 9.671 9.677 9.683 9.69 9.696 9.703 1840
1850 9.703 9.709 9.716 9.722 9.728 9.735 9.741 9.748 9.754 9.761 9.767 1850
1860 9.767 9.773 9.78 9.786 9.793 9.799 9.806 9.812 9.819 9.825 9.831 1860
1870 9.831 9.838 9.844 9.851 9.857 9.864 9.87 9.877 9.883 9.889 9.896 1870
1880 9.896 9.902 9.909 9.915 9.922 9.928 9.935 9.941 9.948 9.954 9.961 1880
1890 9.961 9.967 9.973 9.98 9.986 9.993 9.999 10.006 10.012 10.019 10.025 1890
˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
2400 13.348 13.354 13.361 13.368 13.375 13.381 13.388 13.395 13.402 13.408 13.415 2400
2410 13.415 13.422 13.429 13.435 13.442 13.449 13.456 13.462 13.469 13.476 13.483 2410
2420 13.483 13.489 13.496 13.503 13.51 13.516 13.523 13.53 13.537 13.543 13.55 2420
2430 13.55 13.557 13.563 13.57 13.577 13.584 13.59 13.597 13.604 13.611 13.617 2430
2440 13.617 13.624 13.631 13.638 13.644 13.651 13.658 13.665 13.671 13.678 13.685 2440
2450 13.685 13.692 13.698 13.705 13.712 13.719 13.725 13.732 13.739 13.746 13.752 2450
2460 13.752 13.759 13.766 13.773 13.779 13.786 13.793 13.8 13.806 13.813 13.82 2460
2470 13.82 13.826 13.833 13.84 13.847 13.853 13.86 13.867 13.874 13.88 13.887 2470
2480 13.887 13.894 13.901 13.907 13.914 13.921 13.928 13.934 13.941 13.948 13.955 2480
2490 13.955 13.961 13.968 13.975 13.982 13.988 13.995 14.002 14.009 14.015 14.022 2490
2500 14.022 14.029 14.036 14.042 14.049 14.056 14.063 14.069 14.076 14.083 14.089 2500
2510 14.089 14.096 14.103 14.11 14.116 14.123 14.13 14.137 14.143 14.15 14.157 2510
2520 14.157 14.164 14.17 14.177 14.184 14.191 14.197 14.204 14.211 14.218 14.224 2520
2530 14.224 14.231 14.238 14.245 14.251 14.258 14.265 14.272 14.278 14.285 14.292 2530
2540 14.292 14.298 14.305 14.312 14.319 14.325 14.332 14.339 14.346 14.352 14.359 2540
2550 14.359 14.366 14.373 14.379 14.386 14.393 14.4 14.406 14.413 14.42 14.426 2550
2560 14.426 14.433 14.44 14.447 14.453 14.46 14.467 14.474 14.48 14.487 14.494 2560
2570 14.494 14.501 14.507 14.514 14.521 14.528 14.534 14.541 14.548 14.554 14.561 2570
2580 14.561 14.568 14.575 14.581 14.588 14.595 14.602 14.608 14.615 14.622 14.629 2580
2590 14.629 14.635 14.642 14.649 14.655 14.662 14.669 14.676 14.682 14.689 14.696 2590
2600 14.696 14.703 14.709 14.716 14.723 14.729 14.736 14.743 14.75 14.756 14.763 2600
2610 14.763 14.77 14.777 14.783 14.79 14.797 14.803 14.81 14.817 14.824 14.83 2610
2620 14.83 14.837 14.844 14.851 14.857 14.864 14.871 14.877 14.884 14.891 14.898 2620
2630 14.898 14.904 14.911 14.918 14.925 14.931 14.938 14.945 14.951 14.958 14.965 2630
2640 14.965 14.972 14.978 14.985 14.992 14.998 15.005 15.012 15.019 15.025 15.032 2640
2650 15.032 15.039 15.045 15.052 15.059 15.066 15.072 15.079 15.086 15.092 15.099 2650
2660 15.099 15.106 15.113 15.119 15.126 15.133 15.139 15.146 15.153 15.16 15.166 2660
2670 15.166 15.173 15.18 15.186 15.193 15.2 15.207 15.213 15.22 15.227 15.233 2670
2680 15.233 15.24 15.247 15.254 15.26 15.267 15.274 15.28 15.287 15.294 15.3 2680
2690 15.3 15.307 15.314 15.321 15.327 15.334 15.341 15.347 15.354 15.361 15.367 2690
2700 15.367 15.374 15.381 15.388 15.394 15.401 15.408 15.414 15.421 15.428 15.434 2700
2710 15.434 15.441 15.448 15.455 15.461 15.468 15.475 15.481 15.488 15.495 15.501 2710
2720 15.501 15.508 15.515 15.521 15.528 15.535 15.542 15.548 15.555 15.562 15.568 2720
2730 15.568 15.575 15.582 15.588 15.595 15.602 15.608 15.615 15.622 15.628 15.635 2730
2740 15.635 15.642 15.649 15.655 15.662 15.669 15.675 15.682 15.689 15.695 15.702 2740
2750 15.702 15.709 15.715 15.722 15.729 15.735 15.742 15.749 15.755 15.762 15.769 2750
2760 15.769 15.775 15.782 15.789 15.795 15.802 15.809 15.815 15.822 15.829 15.835 2760
2770 15.835 15.842 15.849 15.855 15.862 15.869 15.875 15.882 15.889 15.895 15.902 2770
2780 15.902 15.909 15.915 15.922 15.929 15.935 15.942 15.949 15.955 15.962 15.969 2780
2790 15.969 15.975 15.982 15.989 15.995 16.002 16.009 16.015 16.022 16.029 16.035 2790
2800 16.035 16.042 16.049 16.055 16.062 16.069 16.075 16.082 16.089 16.095 16.102 2800
2810 16.102 16.108 16.115 16.122 16.128 16.135 16.142 16.148 16.155 16.162 16.168 2810
2820 16.168 16.175 16.182 16.188 16.195 16.202 16.208 16.215 16.221 16.228 16.235 2820
2830 16.235 16.241 16.248 16.255 16.261 16.268 16.275 16.281 16.288 16.294 16.301 2830
2840 16.301 16.308 16.314 16.321 16.328 16.334 16.341 16.347 16.354 16.361 16.367 2840
2850 16.367 16.374 16.381 16.387 16.394 16.4 16.407 16.414 16.42 16.427 16.434 2850
2860 16.434 16.44 16.447 16.453 16.46 16.467 16.473 16.48 16.486 16.493 16.5 2860
2870 16.5 16.506 16.513 16.52 16.526 16.533 16.539 16.546 16.553 16.559 16.566 2870
2880 16.566 16.572 16.579 16.586 16.592 16.599 16.605 16.612 16.619 16.625 16.632 2880
2890 16.632 16.638 16.645 16.652 16.658 16.665 16.671 16.678 16.685 16.691 16.698 2890
˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
3100 17.998 18.004 18.011 18.017 18.023 18.03 18.036 18.042 18.049 18.055 18.061 3100
3110 18.061 18.068 18.074 18.08 18.086 18.093 18.099 18.105 18.112 18.118 18.124 3110
3120 18.124 18.13 18.137 18.143 18.149 18.155 18.162 18.168 18.174 18.18 18.187 3120
3130 18.187 18.193 18.199 18.205 18.211 18.218 18.224 18.23 18.236 18.242 18.248 3130
3140 18.248 18.255 18.261 18.267 18.273 18.279 18.285 18.292 18.298 18.304 18.31 3140
3150 18.31 18.316 18.322 18.328 18.334 18.341 18.347 18.353 18.359 18.365 18.371 3150
3160 18.371 18.377 18.383 18.389 18.395 18.401 18.407 18.413 18.419 18.425 18.431 3160
3170 18.431 18.437 18.443 18.449 18.455 18.461 18.467 18.473 18.479 18.485 18.491 3170
3180 18.491 18.497 18.503 18.509 18.515 18.521 18.527 18.533 18.539 18.545 18.551 3180
3190 18.551 18.557 18.562 18.568 18.574 18.58 18.586 18.592 18.598 18.603 18.609 3190
3200 18.609 18.615 18.621 18.627 18.633 18.638 18.644 18.65 18.656 18.661 18.667 3200
3210 18.667 18.673 18.679 18.684 18.69             3210






˚F 0 1 2 3 4 5 6 7 8 9 10 ˚F
回到温度检测技术参考索引首页
