NEMA 12型钢倾斜前按钮外壳，用于22mm和30.5mm按钮

SCE-PBA Series Sloping Pushbutton Enclosures

^¥2,485.13 SCE-6PBA

下单

0.075" Carbon Steel
Continuously Welded Seams
Captivated Cover Screws Thread Into Sealed Wells
4-Way Pushbutton Holes Accept All Brands of Oil-Tight Pushbuttons, Switches and Pilot Lights
Oil-Resistant Gasket
NEMA 12/13 Environmental Rating

NEMA标准外壳 - 查看相关产品

产品描述

Application
Designed to offer protection for all standard brands of oil-tight pushbuttons, switches, and pilot lights where slanted surfaces are desired. It offers protection from dust, dirt, oil and water.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

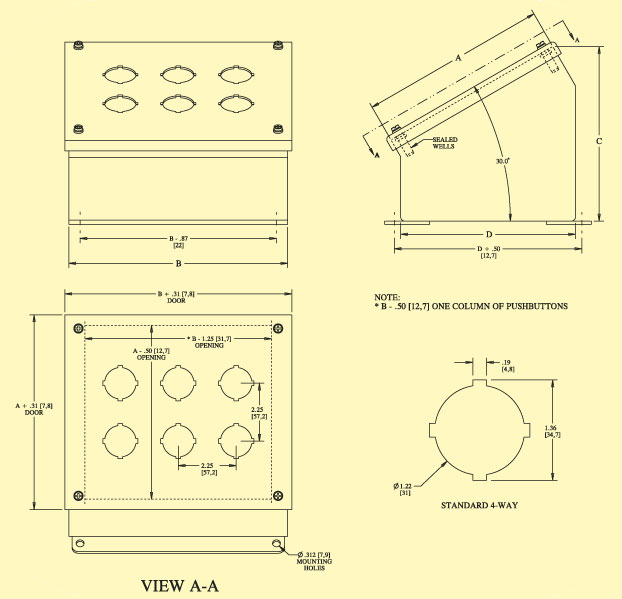

SCE_PBA Series Dimension Diagrams

订购所有价格均为人民币税前价格，不包括13%增值税和运费！(指定型号)

产品编号产品描述

数量

产品描述

NEMA Type 12 Front Sloping Pushbutton Enclosures for 30.5mm Pushbuttons

SCE-1PBA

¥1,443.57

货期: 4 周

1 PB enclosure, Height=3.50 Width=3.25 Depth(C)=4.84 Depth(D)=3.53

SCE-2PBA

¥1,681.11

货期: 4 周

2 PB enclosure, Height=3.50 Width=5.50 Depth(C)=4.84 Depth(D)=3.53

SCE-3PBA

¥1,912.58

货期: 4 周

3 PB enclosure, Height=3.50 Width=7.75 Depth(C)=4.84 Depth(D)=3.53

SCE-4PBA

¥2,156.22

货期: 4 周

4 PB enclosure (1x4), Height=3.50 Width=10.00 Depth(C)=4.84 Depth(D)=3.53

SCE-4SPBA

¥2,271.94

货期: 4 周

4 PB enclosure (2x2), Height=7.25 Width=6.25 Depth(C)=6.75 Depth(D)=6.78

SCE-6PBA

¥2,485.13

货期: 4 周

6 PB enclosure (2x3), Height=7.25 Width=8.50 Depth(C)=6.75 Depth(D)=6.78

SCE-8PBA

¥3,149.04

货期: 4 周

8 PB enclosure (2x4), Height=7.25 Width=10.75 Depth(C)=6.75 Depth(D)=6.78

SCE-9PBA

¥3,283.05

货期: 4 周

9 PB enclosure (3x3), Height=9.50 Width=8.50 Depth(C)=7.88 Depth(D)=8.73

SCE-10PBA

¥3,484.04

货期: 4 周

10 PB enclosure (2x5), Height=7.25 Width=13.00 Depth(C)=6.75 Depth(D)=6.78

SCE-12PBA

¥3,806.86

货期: 4 周

12 PB enclosure (2x6), Height=7.25 Width=15.25 Depth(C)=6.75 Depth(D)=6.78

SCE-12SPBA

¥3,423.14

货期: 4 周

12 PB enclosure (3x4), Height=11.75 Width=8.50 Depth(C)=9.00 Depth(D)=10.69

SCE-16PBA

¥4,068.78

货期: 4 周

16 PB enclosure (4x4), Height=11.75 Width=10.75 Depth(C)=9.00 Depth(D)=10.69

NEMA Type 12 Front Sloping Pushbutton Enclosures for 22mm Pushbuttons

SCE-1PBAI

¥1,443.57

货期: 4 周

1 PB enclosure, Height=3.50 Width=3.25 Depth(C)=4.84 Depth(D)=3.53

SCE-2PBAI

¥1,492.30

货期: 4 周

2 PB enclosure, Height=3.50 Width=5.50 Depth(C)=4.84 Depth(D)=3.53

SCE-3PBAI

¥1,796.85

货期: 6 周

3 PB enclosure, Height=3.50 Width=7.75 Depth(C)=4.84 Depth(D)=3.53

SCE-4PBAI

¥2,156.22

货期: 4 周

4 PB enclosure (1x4), Height=3.50 Width=10.00 Depth(C)=4.84 Depth(D)=3.53

SCE-4SPBAI

¥2,064.85

货期: 6 周

4 PB enclosure (2x2), Height=7.25 Width=6.25 Depth(C)=6.75 Depth(D)=6.78

SCE-6PBAI

¥2,424.23

货期: 4 周

6 PB enclosure (2x3), Height=7.25 Width=8.50 Depth(C)=6.75 Depth(D)=6.78

SCE-8PBAI

¥3,008.95

货期: 6 周

8 PB enclosure (2x4), Height=7.25 Width=10.75 Depth(C)=6.75 Depth(D)=6.78

SCE-9PBAI

¥3,283.05

货期: 4 周

9 PB enclosure (3x3), Height=9.50 Width=8.50 Depth(C)=7.88 Depth(D)=8.73

SCE-10PBAI

¥3,283.05

货期: 6 周

10 PB enclosure (2x5), Height=7.25 Width=13.00 Depth(C)=6.75 Depth(D)=6.78

SCE-12PBAI

¥3,581.51

货期: 4 周

12 PB enclosure (2x6), Height=7.25 Width=15.25 Depth(C)=6.75 Depth(D)=6.78

SCE-12SPBAI

¥3,636.32

货期: 5 周

12 PB enclosure (3x4), Height=11.75 Width=8.50 Depth(C)=9.00 Depth(D)=10.69

SCE-16PBAI

¥4,068.78

货期: 4 周

16 PB enclosure (4x4), Height=11.75 Width=10.75 Depth(C)=9.00 Depth(D)=10.69

Base and Column Accessories

SCE-18SBASE

¥2,241.49

货期: 4 周

Pedestal Base 18.00 x 18.00 x 1.00

SCE-24SBASE

¥4,757.06

货期: 4 周

Pedestal Base 24.00 x 24.00 x 1.00

SCE-44CCOL

¥3,569.33

货期: 4 周

Straight Column 4.00 x 4.00 x 35.00

SCE-44PBCOL

¥4,629.16

货期: 4 周

Angled Column 4.00 x 4.00 x 35.00

SCE-66CCOL

¥5,829.08

货期: 4 周

Straight Column 6.00 x 6.00 x 35.00

SCE-66PBCOL

¥6,980.28

货期: 4 周

Angled Column 6.00 x 6.00 x 35.0

OMPBD7-AHA1

¥368.51

货期: 2 周

30mm to 22mm Adapter (mount 22mm PB's in 30mm holes), stainless steel

POWER CORD-SE-M16

¥154.10

货期: 2 周

8' Power cord with M16 cable gland strain relief, 3x16 AWG, 250Vac max.

† 所有金额以RMB显示
订购示例: (1) SCE - 1PBA Type 12 Sloping Front 30.5mm Pushbutton Enclosure, ¥1,443.57
