SCE-SSLP Series Outdoor Electrical Enclosures

NEMA Type 4x 304 or 316 Stainless Steel Electrical Enclosures and Control Panel for outdoor and waterproof applications. | SCE-SSLP Series Outdoor Electrical Enclosures

^¥9,196.06 SCE-16H1206SSLP

下单

Available in 304 or 316L Stainless Steel
No Holes or Knockouts, Continuously Welded Seams Ground Smooth
Flange Trough Collar Around All Sides Of Door Opening
Oil-Resistant Door Gasket
Collar Studs Provided for Mounting Optional Sub-Panels
Hasp and Staple For Padlocking
Stainless Steel Continuous Hinge
Print Pocket
Ground Stud On Door
Stainless Steel Clamps On Three Sides of Door Will Keep Out All Liquids and Other Contaminants

NEMA标准外壳 - 查看相关产品

产品描述

Application
The SCE-SSLP Series Outdoor Electrical Enclosures are designed to house electrical and electronic controls, instruments and equipment in areas which may be regularly hosed down or are in very wet conditions. These electrical control panels provide protection from dust, dirt, oil and strong jets of water. This outdoor electrical control panel is the solution for waterproof and weatherproof applications

Finish
#4 brushed finish on all exterior surfaces. Optional panels are powder coated white.

IS5 Industry Standards
NEMA Type 4, 4X, 12 & 13
UL Listed Type 4, 4X & 12
CSA Type 4, 4X & 12
IEC 60529 IP 66

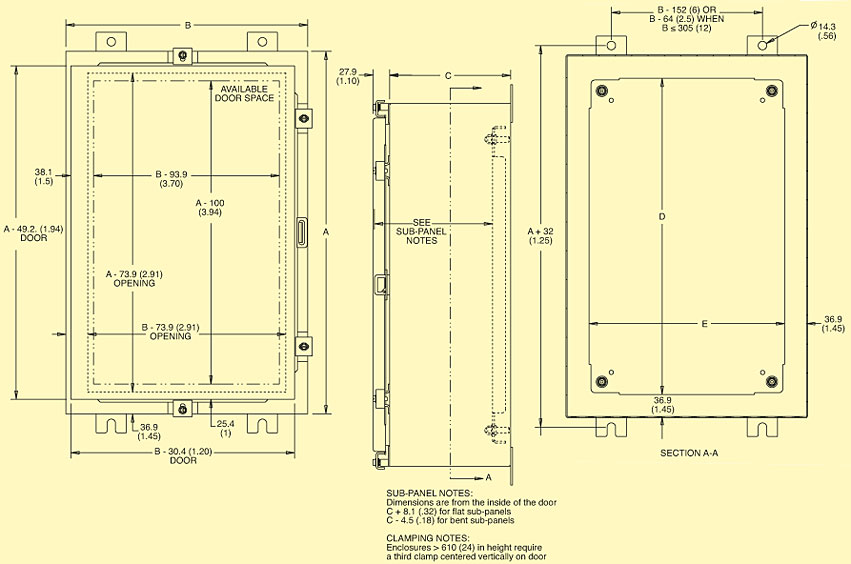

SCE_SSLP Series Enclosure Diagrams

订购所有价格均为人民币税前价格，不包括13%增值税和运费！(指定型号)

其他客户同时购买: 这个图标可以点击扩大，跳出的清单包括了其他客户在购买此产品时同时购买的其它产品。

产品编号产品描述

数量

产品描述

Electrical Enclosures - sub-panels sold separately

SCE-16H1206SSLP

¥9,196.06

货期: 4 周

Enclosures, 16"H x 12"W x 6"D

SCE-16H1208SSLP

¥9,911.37

货期: 4 周

Enclosures, 16"H x 12"W x 8"D

SCE-16P12

¥333.63

货期: 4 周

Sub-Panel for 16x12

SCE-16H1606SSLP

¥10,300.50

货期: 4 周

Enclosures, 16"H x 16"W x 6"D

SCE-16P16

¥535.06

货期: 2 周

Sub-Panel for 16x16

SCE-16H2006SSLP

¥11,256.16

货期: 4 周

Enclosures, 16"H x 20"W x 6"D

SCE-20P16

¥598.01

货期: 4 周

Sub-Panel for 16x20

SCE-20H1606SSLP

¥11,256.16

货期: 4 周

Enclosures, 20"H x 16"W x 6"D

SCE-20H1608SSLP

¥12,051.59

货期: 4 周

Enclosures, 20"H x 16"W x 8"D

SCE-20H1610SSLP

¥12,847.01

货期: 4 周

Enclosures, 20"H x 16"W x 10"D

SCE-20P16

¥598.01

货期: 4 周

Sub-Panel for 20x16

SCE-20H2006SSLP

¥12,446.44

货期: 4 周

Enclosures, 20"H x 20"W x 6"D

SCE-20P20

¥786.69

货期: 2 周

Sub-Panel for 20x20

SCE-20H2408SSLP

¥14,586.65

货期: 4 周

Enclosures, 20"H x 24"W x 8"D

SCE-24P20

¥949.94

货期: 4 周

Sub-Panel for 20x24

SCE-24H1608SSLP

¥13,075.91

货期: 4 周

Enclosures, 24"H x 16"W x 8"D

SCE-24P16

¥761.67

货期: 4 周

Sub-Panel for 24x16

SCE-24H2006SSLP

¥13,579.49

货期: 4 周

Enclosures, 24"H x 20"W x 6"D

SCE-24H2008SSLP

¥14,586.65

货期: 4 周

Enclosures, 24"H x 20"W x 8"D

SCE-24H2010SSLP

¥15,021.56

货期: 4 周

Enclosures, 24"H x 20"W x 10"D

SCE-24P20

¥949.94

货期: 4 周

Sub-Panel for 24x20

SCE-24H2408SSLP

¥16,103.12

货期: 4 周

Enclosures, 24"H x 24"W x 8"D

SCE-24H2412SSLP

¥18,249.05

货期: 4 周

Enclosures, 24"H x 24"W x 12"D

SCE-24P24

¥1,041.50

货期: 4 周

Sub-Panel for 24x24

Enclosures below must ship by Truck - Freight

SCE-24H3008SSLP

¥18,249.05

货期: 4 周

Enclosures, 24"H x 30"W x 8"D

SCE-30P24

¥1,207.45

货期: 4 周

Sub-Panel for 24x30

SCE-30H2008SSLP

¥16,503.69

货期: 4 周

Enclosures, 30"H x 20"W x 8"D

SCE-30P20

¥1,207.45

货期: 4 周

Sub-Panel for 30x20

SCE-30H2408SSLP

¥17,693.97

货期: 4 周

Enclosures, 30"H x 24"W x 8"D

SCE-30H2412SSLP

¥20,005.86

货期: 4 周

Enclosures, 30"H x 24"W x 12"D

SCE-30H2416SSLP

¥23,244.80

货期: 4 周

Enclosures, 30"H x 24"W x 16"D

SCE-30P24

¥1,207.45

货期: 4 周

Sub-Panel for 30x24

SCE-30H3008SSLP

¥20,789.84

货期: 4 周

Enclosures, 30"H x 30"W x 8"D

SCE-30P30

¥1,831.20

货期: 4 周

Sub-Panel for 30x30

SCE-36H2408SSLP

¥20,480.83

货期: 4 周

Enclosures, 36"H x 24"W x 8"D

SCE-36H2410SSLP

¥21,819.89

货期: 4 周

Enclosures, 36"H x 24"W x 10"D

SCE-36P24

¥1,522.19

货期: 4 周

Sub-Panel for 36x24

SCE-36H3008SSLP

¥23,405.03

货期: 4 周

Enclosures, 36"H x 30"W x 8"D

SCE-36H3010SSLP

¥24,967.27

货期: 4 周

Enclosures, 36"H x 30"W x 10"D

SCE-36H3012SSLP

¥26,489.45

货期: 4 周

Enclosures, 36"H x 30"W x 12"D

SCE-36H3016SSLP

¥29,430.82

货期: 4 周

Enclosures, 36"H x 30"W x 16"D

SCE-36P30

¥2,037.21

货期: 4 周

Sub-Panel for 36x30

SCE-36H3612SSLP

¥29,665.44

货期: 4 周

Enclosures, 36"H x 36"W x 12"D

SCE-36P36

¥2,586.57

货期: 4 周

Sub-Panel for 36x36

SCE-42H3010SSLP

¥27,685.46

货期: 4 周

Enclosures, 42"H x 30"W x 10"D

SCE-42P30

¥2,409.17

货期: 4 周

Sub-Panel for 42x30

SCE-42H3608SSLP

¥29,430.82

货期: 4 周

Enclosures, 42"H x 36"W x 8"D

SCE-42P36

¥2,752.52

货期: 2 周

Sub-Panel for 42x36

SCE-48H3608SSLP

¥32,515.25

货期: 4 周

Enclosures, 48"H x 36"W x 8"D

SCE-48H3612SSLP

¥36,234.87

货期: 4 周

Enclosures, 48"H x 36"W x 12"D

SCE-48H3616SSLP

¥40,046.06

货期: 4 周

Enclosures, 48"H x 36"W x 16"D

SCE-48P36

¥2,901.31

货期: 4 周

Sub-Panel for 48x36

SCE-60H3612SSLP

¥42,895.86

货期: 4 周

Enclosures, 60"H x 36"W x 12"D

SCE-60P36

¥4,165.98

货期: 4 周

Sub-Panel for 60x36

Drip Shield Kit - screws and sealing washers included

SCE-DS12SS

¥1,344.79

货期: 4 周

for 12" wide electrical enclosures

SCE-DS16SS

¥1,596.58

货期: 4 周

for 16" wide electrical enclosures

SCE-DS20SS

¥1,728.20

货期: 4 周

for 20" wide electrical enclosures

SCE-DS24SS

¥1,871.26

货期: 4 周

for 24" wide electrical enclosures

SCE-DS30SS

¥2,082.99

货期: 4 周

for 30" wide electrical enclosures

SCE-DS36SS

¥2,340.50

货期: 4 周

for 36" wide electrical enclosures

† 所有金额以RMB显示
订购示例: (1) SCE - 16H1206SSLP Type 4X 304 Stainless Steel Single - Door Enclosure, ¥9,196.06
