Other panels available upon request. Send an email to custom@omega.com for pricing & availability. Custom panels are $1000 minimum order for custom SKU part number.

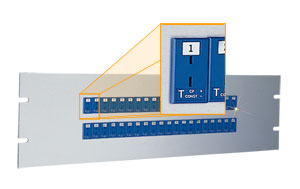

19" Plain Panel Jacks
19" Jack Panels with Switch Cutout
No. of Rows
Panel Height
Max. No. of Jacks
1
88.9 mm (3.5")
30
2
88.9 mm (3.5")
60
3
133.3 mm (5.25")
90
4
177.8 mm(7")
120
No. of Rows
Panel Height
Switch Size
Max. No. of Jacks
1
133.3 mm (5.25")
76.2 mm (3")
20
2
133.3 mm (5.25")
76.2 mm (3")
40
2
177.8 mm (7")
127 mm (5")
40
3
177.8 mm(7")
127 mm (5")
60
4
177.8 mm(7")
127 mm (5")
80
19" Jack Panels with Switch and Meter Cutouts
No. of Rows
Panel Height
Switch Size
Max. No. of Jacks
1
133.35 mm (5.25")
76.2 mm (3")
10
2
133.35 mm (5.25")
76.2 mm (3")
20
3
177.8 mm(7")
127 mm (5")
30
4
177.8 mm(7")
127 mm (5")
40
Switches and Meters Sold Separately
† Price are shown in RMB.
Note: The switch and meter cutouts are not available in the panels containing 12, 18 or 32 connectors. Consult Custom Engineering Department for information on custom color-coded anodized panels. Non-standard panels: $1,000 minimum order. Contact custom@omega.com for pricing and availability.
Part Number Builder
Option Descriptions
(1)
Rows of Connectors
Select 1 for 1 Row 2 for 2 Rows 3 for 3 Rows 4 for 4 Rows
(2)
Total Number of Jacks
Select 10 for 10 Jacks 12 for 12 Jacks 18 for 18 Jacks 20 for 20 Jacks 30 for 30 Jacks 32 for 32 Jacks 40 for 40 Jacks
(3)
Connector Type
Select J for J Type K for K Type T for T Type E for E Type R for R Type S for S Type G for G Type C for C Type D for D Type U for U Type
(4)
Optional Panel Switch Cutout (not available in the panels containing 12 18 or 32 connectors)
Select Nothing(leave field blank) for No Panel Switch Cutout -OSW for Panel Switch Cutout
(5)
Optional Meter Cutout (not available in the panels containing 12 18 or 32 connectors)
Select Nothing(leave field blank) for No Meter Cutout -MTR for Meter Cutout
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
