19 inch Jack Panels 3-Prong Connectors
19TJP Series

19" Jack Panels 3-Prong Connectors
19TJP Series:19 inch Jack Panels 3-Prong Connectors

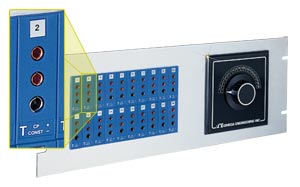

Click for larger image.

• Fully Assembled
• Snap-In Jacks
• Number Labels Included with Packaging
• Easy Installation
• Convenient
• Rugged 1/8" Thick Panels

View related products - Thermocouple Connectors and Panel Systems

Click to scroll below to order See Specs PDF View a printer friendly page

19" Plain Panel Jacks
No.of
Rows 		Panel
Height 		Max. No.
of Jacks
1 3 1/2" 22
2 5 1/4" 44
3 8 3/4" 66
4 10 1/2" 88
19" Panel Jacks with Switch Cutout
No.of
Rows 		Panel
Height 		Switch
Size 		Max. No.
of Jacks
1 7" 5" 15
2 7" 5" 30
3 8 3/4" 5" 45
4 10 1/2" 5" 60

  Most Popular Models Highlighted
Model No. Total No.
of Jacks 		Switch
Cutout 		Meter
Cutout
19TJP1-10-(*) 10 - -
19TJP1-20-(*) 20 - -
19TJP2-20-(*) 20 - -
19TJP2-30-(*) 30 - -
19TJP2-40-(*) 40 - -
19TJP1-10-(*)-OSW 10 5" -
19TJP2-20-(*)-OSW 20 5" -
19TJP3-30-(*)-OSW 30 5" -
19TJP4-40-(*)-OSW 40 5" -
19TJP1-10-(*)-OSW-MTR 10 5" Y
19TJP2-20-(*)-OSW-MTR 20 5" Y
19TJP3-30-(*)-OSW-MTR 30 5" Y
19TJP4-40-(*)-OSW-MTR 40 5" Y
19" Jack Panels with Switch
and Meter Cutouts
No. of
Rows 		Panel
Height 		Switch
Size 		Max. No.
of Jacks
1 7" 5" 10
2 7" 5" 20
3 8 3/4" 5" 30
4 10 1/2" 5" 40
Other panels available upon request. Send an email to custom@omega.com for pricing & availability. Customs Panels are $1000 minimum order for custom SKU part number.
Switches and Meters
Sold Separately
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Example part numbers are shown below. Please use the Part Number Builder below this table to select your exact configuration.
 19TJP1-10-J 11 Weeks   ¥2,245.00    Jack Panel with 10 J Type Jacks(1 row of connectors)
 19TJP1-10-K 11 Weeks   ¥2,245.00    Jack Panel with 10 K Type Jacks(1 row of connectors)
 19TJP1-10-U 11 Weeks   ¥2,245.00    Jack Panel with 10 U Type Jacks(1 row of connectors)
 19TJP1-20-K 11 Weeks   ¥4,125.00    Jack Panel with 20 K Type Jacks(1 row of connectors)
 19TJP1-20-U 11 Weeks   ¥4,125.00    Jack Panel with 20 U Type Jacks(1 row of connectors)
 19TJP2-20-K 11 Weeks   ¥7,970.00    Jack Panel with 20 K Type Jacks(2 rows of connectors)
 19TJP2-30-K 11 Weeks   ¥11,710.00    Jack Panel with 30 K Type Jacks(2 rows of connectors)
 19TJP2-30-T 11 Weeks   ¥11,710.00    Jack Panel with 30 T Type Jacks(2 rows of connectors)
 19TJP2-40-E 11 Weeks   ¥15,440.00    Jack Panel with 40 E Type Jacks(2 rows of connectors)
 19TJP2-40-K 11 Weeks   ¥15,440.00    Jack Panel with 40 K Type Jacks(2 rows of connectors)
 19TJP2-40-U 11 Weeks   ¥15,440.00    Jack Panel with 40 U Type Jacks(2 rows of connectors)
 19TJP1-10-J-OSW    Consult sales   Jack Panel with 10 J Type Jacks and Switch Cutout(1 row of connectors)
† Price are shown in RMB.

 Note: Consult Custom Engineering Department for information on custom color-coded anodized panels. Non-standard Panels: $1,000 minimum order. Contact custom@omega.com for pricing and availability.
