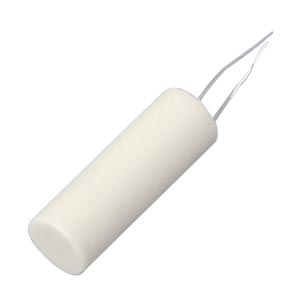

Platinum Resistance Temperature Detector

1PT100FR, 1PT500FR,1PT1000FR, 2PT100FR 2PT500FR and 2PT1000FR

Click for larger image.

•	Designed for High Vibration Use
•	Rugged Cylindrical Element
•	Length: 8mm(0.31") or 13mm(.51"). Diameters: 2.8mm(.11") or 4.5mm(.18")
•	R_o = 100, 500, or 1000 Ω
•	α = .00385. Tolerance = ±.12% at 0°C
•	Single and Dual Elements
•	High Temperature Stability
View related products - RTD (PT100) Probes, Elements and Assemblies

FR series elements are designed for applications where high vibration resistance as well as high temperature stability is vital. Typical industrial applications include analytical equipment, chemical plants and mechanical equipment. Small tolerances on diameter allow problem free installation in protective tubes.

*Dimensions are ±0.3mm(.012")

Note on Assembling Omega "FR" Series RTD Elements to Extension Wires: These RTD elements are made with platinum coated nickel lead wires. Since platinum does not easily wet with most soft solders, we advise that they be spot welded or silver soldered to extension wires when required.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Price below is for 1 element

1PT100FR828	2 Weeks	¥200.00	RTD - 1 x 100 Ohms, 8 x 2.8mm length x diameter	qty.

2PT100FR828	2 Weeks	¥282.00	RTD - 2 x 100 Ohms, 2.8mm diameter	qty.

† Price are shown in RMB.

Note: The measuring point on the leads is 8 mm(.31") from the end of the sensor body.
