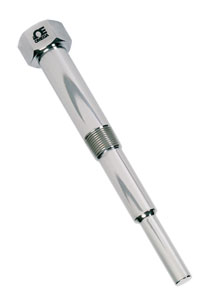

Application:
Fits liquid-in-glass thermometers made to S.A.M.A.
standards. Tapered bore is made 0.008" oversize to
eliminate possibility of thermometer bulb expanding into
the well, thus preventing removal.
Connection Size:
3/4" NPT and 1" NPT are standard. Other thread sizes
are available upon request.
Materials:
Carbon Steel (C-1018); Brass (ASTM B-16),
A.I.S.I. 304, A.I.S.I. 316, Monel. Many other materials
available upon request.
Additional Designs:
Other designs of wells to fit this class of thermometer are
available. These include socket weld, heavy duty and
flanged types.
Maximum Fluid Velocity Chart - feet per second
Well Type
Material
Insertion Length — “U”
2 9/16
5 1/16
8 1/16
11 1/16
14 1/16
17 1/16
20 1/16
231/16
3/4"-445S and 3/4"-445L
Brass
259 (52.3)
142 (26.4)
55.8 (16.6)
29.8 (12.1)
18.4 (9.5)
12.5 (7.8)
9.0 (6.7)
6.8
Carbon Steel
352 (94.6)
198 (48.0)
77.5 (30.1)
41.4 (22.0)
27.8 (17.3)
17.3 (14.2)
12.5 (12.1)
9.5
A.I.S.I. 304 & 316
382 (131)
206 (66.3)
80.9 (41.7)
43.2 (30.2)
26.6 (24.0)
18.1
13.1
9.9
Monel
277 (105)
179 (53.1)
70.3 (33.4)
37.5 (24.3)
23.2 (19.1)
15.7
11.3
8.5
1"-445S and 1"-445L
Brass
259 (76)
156 (38.5)
61.4 (24.2)
32.8 (17.7)
20.2 (13.9)
13.7 (11.4)
9.9
7.5
Carbon Steel
352 (137)
215 (69.4)
34.2 (43.6)
45.0 (31.9)
27.7 (25)
18.9
13.6
10.3
A.I.S.I. 304&316
382 (190)
224 (96.1)
87.8 (60.4)
46.9 (44.1)
28.9
19.7
14.2
10.8
Monel
277 (152)
196 (77.1)
77.2 (48.5)
41.4 (35.4)
25.4
17.2
12.4
9.4
† Price are shown in RMB.
Ordering Example: (1) 3/4-445L-S6E-304SS 304 SS thermowell for 6, ¥1,590.00
Fits liquid-in-glass thermometers made to S.A.M.A.
standards. Tapered bore is made 0.008" oversize to
eliminate possibility of thermometer bulb expanding into
the well, thus preventing removal.
