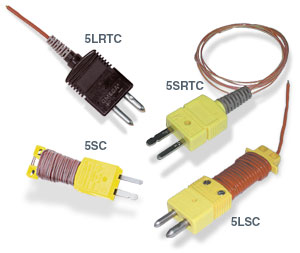

Ready-Made Insulated Thermocouples with Kapton®, PFA, Glass Braid Insulation and Molded Connectors |
| 5LRTC, and 5SRTC Series |
|
 |
|
|
|
|
|
|
|
| • |
Sold in Packs of 5 Economically Priced
|
| • |
New Kapton® Insulation Available Now
(All models)!
|
| • |
J, K, T and E Calibrations Available
|
| • |
Made from Special Limits of Error Wire
|
| • |
20, 24, 30 and 36 AWG Available (SRTC Series)
|
| • |
30 and 36 AWG Wires with PFA Insulation. Max. Service Temp 260°C (500°F)
|
| • |
30 AWG Wires with Glass Braid Insulation. Maximum Service Temp 480°C (900°F)
|
| • |
1 and 2 meter (36 and 72") Lengths Standard
|
| • |
Convenient 5-Pack
|
| • |
Molded Subminiature Connector with Integral Strain Relief/Spool
|
| • |
Max Service Temp for Connector Body 220°C (425°F)
|
| • |
Available from Stock in Convenient 5-Packs
|
| • |
PFA, Kapton®, or Glass Braid Insulation
|
View related products - Thermocouples
|
| |
|
|
|
 |
 PLEASE NOTE! Many different configurations are readily available for delivery. Please review the product specs sheet, for all available models.
5LSC Series - Ready-Made Insulated Thermocouples, Standard Connector with Spool Cap
 |
| Model Number | AWG Gage | Dia. mm(in) | Insulation |
| 5LSC-GG-(*)-20-(**) | 20 | 0.81 (0.032) | Glass Braid |
| 5LSC-GG-(*)-24-(**) | 24 | 0.51 (0.020) | Glass Braid |
| 5LSC-TT-(*)-20-(**) | 20 | 0.81 (0.030) | PFA |
| 5LSC-TT-(*)-24-(**) | 24 | 0.51 (0.020) | PFA |
| 5LSC-KK-(*)-20-(**) | 20 | 0.81 (0.032) | Kapton® |
| 5LSC-KK-(*)-24-(**) | 24 | 0.51 (0.020) | Kapton® |
* Insert calibration J, K, T, or E.
**Specify length, insert “36” for 1 m or “72” for 2 m length
|
5SC Series - Ready-Made Insulated Thermocouples, Subminiature Connector with Spool Cap
 |
| Model Number | AWG Gage | Dia. mm(in) | Insulation |
| 5SC-GG-(*)-30-(**) | 30 | 0.25 (0.010) | Glass Braid |
| 5SC-TT-(*)-30-(**) | 30 | 0.25 (0.010) | PFA |
| 5SC-TT-(*)-36-(**) | 36 | 0.13 (0.005) | PFA |
| 5SC-TT-(*)-40-(**) | 40 | 0.076 (0.003) | PFA |
| 5SC-KK-(*)-30-(**) | 30 | 0.25 (0.010) | Kapton® |
* Insert calibration J, K, T, or E.
**Specify length, insert “36” for 1 m or “72” for 2 m length
|
5LRTC Series - Ready-Made Insulated Thermocouples, Standard Connector without Spool Cap
 |
| Model Number | AWG Gage | Dia. mm(in) | Insulation |
| 5LRTC-GG-(*)-20-(**) | 20 | 0.81 (0.032) | Glass Braid |
| 5LRTC-GG-(*)-24-(**) | 24 | 0.51 (0.020) | Glass Braid |
| 5LRTC-TT-(*)-20-(**) | 20 | 0.81 (0.030) | PFA |
| 5LRTC-TT-(*)-24-(**) | 24 | 0.51 (0.020) | PFA |
| 5LRTC-KK-(*)-20-(**) | 20 | 0.81 (0.032) | Kapton® |
| 5LRTC-KK-(*)-24-(**) | 24 | 0.51 (0.020) | Kapton® |
* Insert calibration J, K, T, or E.
**Specify length, insert “36” for 1 m or “72” for 2 m length
|
5SRTC Series - Ready-Made Insulated Thermocouples, Subminiature Connector without Spool Cap
 |
| Model Number | AWG Gage | Dia. mm(in) | Insulation |
| 5SRTC-GG-(*)-20-(**) | 20 | 0.81 (0.032) | Glass Braid |
| 5SRTC-GG-(*)-24-(**) | 24 | 0.51 (0.020) | Glass Braid |
| 5SRTC-GG-(*)-30-(**) | 30 | 0.25 (0.010) | Glass Braid |
| 5SRTC-TT-(*)-20-(**) | 20 | 0.81 (0.032) | PFA |
| 5SRTC-TT-(*)-24-(**) | 24 | 0.51 (0.020) | PFA |
| 5SRTC-TT-(*)-30-(**) | 30 | 0.25 (0.010) | PFA |
| 5SRTC-TT-(*)-36-(**) | 36 | 0.13 (0.005) | PFA |
| 5SRTC-TT-(*)-40-(**) | 40 | 0.076 (0.003) | PFA |
| 5SRTC-KK-(*)-20-(**) | 20 | 0.81 (0.032) | Kapton® |
| 5SRTC-KK-(*)-24-(**) | 24 | 0.51 (0.020) | Kapton® |
| 5SRTC-KK-(*)-30-(**) | 30 | 0.25 (0.010) | Kapton® |
* Insert calibration J, K, T, or E.
**Specify length, insert “36” for 1 m or “72” for 2 m length
|
OMEGA offers a diverse variety of thermocouples. Models are available with standard size
(round pin) connectors and miniature size (flat pin) connectors. OMEGA also offers models
with the exclusive spool cap design. The spool cap provides a simple convenient means of
containing any excess thermocouple wire.
View the Thermocouple Accuracy and Color Code charts
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) 5LSC-TT-K-20-72 STANDARD Connector, K Thermocouple, PFA Insulation, 20AWG, 72 inch Length, 5 PACK, ¥1,475.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Connector Style
|
| |
Select
LSC for Large OST Connector with Spool Cap
SC for Sub-Miniature Connector with Spool Cap
LRTC for Standard Connector with NO Spool Cap
SRTC for Sub-Miniature Molded Connector
|
(2)
|
Insulation Type
|
| |
Select
GG for Glass Braid
TT for PFA
KK for Kapton®
|
(3)
|
Thermocouple Type
|
| |
Select
J for J Thermocouple
K for K Thermocouple
T for T Thermocouple
E for E Thermocouple
|
(4)
|
Wire Gage(Not all sizes are availabe for all styles please see tables above)
|
| |
Select
20 for 20 AWG
24 for 24 AWG
30 for 30 AWG
36 for 36 AWG
40 for 40 AWG
|
(5)
|
Thermocouple Length
|
| |
Select
36 for 36 Inches
72 for 72 inches
CUSTOM for custom length in inches(whole numbers from 12 to 600 inches)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
