1/16 DIN Proportional or On-Off Temperature Controllers with Dedicated Inputs & Ranges
6100 Series

On Off Temperature Controllers

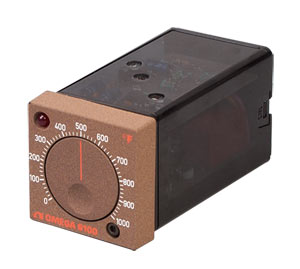

6100 Series:1/16 DIN Proportional or On-Off Temperature Controllers with Dedicated Inputs & Ranges
Click for larger image.

• 1/16 DIN Panel Cutout - Model 6102
• 11-Pin Connector - Model 6102
• Thermocouple and RTD Models - Model 6102 and 6103
• Time Proportional Temperature Control - Model 6102 and 6103
• 10 AMP Capacity - Model 6102 and 6103
• 1/4" Terminal Lugs - Model 6103

View related products - Temperature and Process Controllers and Power Switching Devices

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The Model 6102 Temperature Controller is one of OMEGA’s lowest cost units with all the features of big controllers. Packaged in a small size to save you space and money, Model 6102 temperature controllers plug into an unbreakable nylon socket which can be mounted individually or snapped onto the Model 6000-TRK mounting track. The unbreakable nylon socket and mounting track make installations in chassis, control panel and O.E.M. applications fast and easy, using a minimum of space.

The Model 6103 Temperature Panel Mount Controller with its small size is the logical choice for use on today’s multi-zone extruding and molding machines. It is available off-the-shelf in a wide selection of thermocouple types and ranges. Omega's Custom Engineering Department can fabricate a variety of custom panels for your specific needs. A complete Terminal Accessories Kit (6100-ACC) is included.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 6102J-0-300F    Consult sales   Socket Mount, proportional temperature control, J input type, 0 to 300°F
 6102J-0-500F    Consult sales   Socket Mount, proportiona temperature control, J input type, 0 to 500°F
 6102J-0-1000F    Consult sales   Socket Mount, proportional temperature control, J input type, 0 to 1000°F
 6102J-0-300C    Consult sales   Socket Mount, proportional temperature control, J input type, 0 to 300°C
 6102K-0-500F    Consult sales   Socket Mount, proportional temperature control, K input type, 0 to 500°F
 6102K-0-1000F    Consult sales   Socket Mount, proportional temperature control, K input type, 0 to 1000°F
 6102K-0-1500F    Consult sales   Socket Mount, proportional temperature control, K input type, 0 to 1500°F
 6102K-0-1200C    Consult sales   Socket Mount, proportional temperature control, K input type, 0 to 1200°C
 6102RTD-0-600C    Consult sales   Socket Mount, proportional temperature control, RTD input type, 0 to 600°C
 6103J-0-300F    Consult sales   Quick disconnect, proportional temperature control, J input type, 0 to 300°F
 6103J-0-500F    Consult sales   Quick disconnect, proportional temperature control, J input type, 0 to 500°F
 6103J-0-1000F    Consult sales   Quick disconnect, proportional temperature control, J input type, 0 to 1000°F
 6103J-0-300C    Consult sales   Quick disconnect, proportional temperature control, J input type, 0 to 300°C
 6103K-0-500F    Consult sales   Quick disconnect, proportional temperature control, K input type, 0 to 500°F
 6103K-0-1000F    Consult sales   Quick disconnect, proportional temperature control, K input type, 0 to 1000°F
 6103K-0-1500F    Consult sales   Quick disconnect, proportional temperature control, K input type, 0 to 1500°F
 6103K-0-1200C    Consult sales   Quick disconnect, proportional temperature control, K input type, 0 to 1200°C
 6103RTD-0-600C    Consult sales   Quick disconnect, proportional temperature control, RTD input type, 0 to 600°C
 6132H-J-0-300F    Consult sales   Socket mount, On/Off temperature control, J input type, 0 to 300°F
 6132H-J-0-500F    Consult sales   Socket mount, On/Off temperature control, J input type, 0 to 500°F
 6132H-J-0-1000F    Consult sales   Socket mount, On/Off temperature control, J input type, 0 to 1000°F
 6132H-J-0-300C    Consult sales   Socket mount, On/Off temperature control, J input type, 0 to 300°C
 6132H-K-0-500F    Consult sales   Socket mount, On/Off temperature control, K input type, 0 to 500°F
 6132H-K-0-1000F    Consult sales   Socket mount, On/Off temperature control, K input type, 0 to 1000°F
 6132H-K-0-1500F    Consult sales   Socket mount, On/Off temperature control, K input type, 0 to 1500°F
 6132H-K-0-1200C    Consult sales   Socket mount, On/Off temperature control, K input type, 0 to 1200°C
 6132H-S-0-1600C    Consult sales   Socket mount, On/Off temperature control, S input type, 0 to 1600°C
 6132H-RTD-0-600C    Consult sales   Socket mount, On/Off temperature control, RTD input type, 0 to 600°C
 Accessories
 6000-TRK 7 Weeks   ¥140.00    Mounting Track- 3 Foot for use with socket mount 6102 and 6132 series temperature controllers
 6100-ACC    Consult sales   Extra Terminal Accessory Kit for 6103 panel mount temperature controllers. (Note: one kit is included with every 6103 temperature controller)
 MHP16 5 Weeks   ¥120.00    Spare Part: Replacement relay for 6102, and 6103 series temperature controllers
 MHP1632    Consult sales   Spare Part: Replacement relay for 6132 series temperature controllers
† Price are shown in RMB.

 Note: To order 230 V, add suffix “-230V” to model number; no additional charge. If 110V model is in stock, quote one week for Factory Conversion to 230V.
