Magnetic Mount Thermocouple Probes
88401 Series, 88402 Series

Magnetic Mount Thermocouple Probes
88401 Series, 88402 Series:Magnetic Mount Thermocouple Probes
Click for larger image.

¥ 2,020.00  88401K
• Magnetic Mounts Provide Quick Placement for Contact Temperature Measurements on Pipes, Ducts, etc.

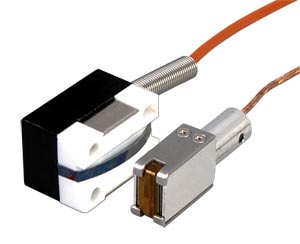

• Model 88401 (left photo) Measures to 250°C (480°F)
• Model 88402 (right photo) Measures to 400°C (750°F)
• Relatively Small Size Allows Use in Tight Spaces
• 88401 Dimensions: 19 mm (0.75") x 27 mm (1.06") x 19 mm (0.75")
• 88402 Dimensions: 9.5 mm (0.38") x16 mm (0.63") x 38 mm (1.5")
• Reuse Over and Over Again

View related products - Thermocouples

Click to scroll below to order See Specs PDF View a printer friendly page

Magnetized probes, suitable for long term contact pressure. The 88401 uses PFA insulated lead wire and is rated to a max. surface temperature of 250°C (480°F). The 88402 uses "GG" fiberglass insulated lead wire and is rated to a max. service temperature of 400°C (750°F). Sold Separately SMPW connector and TAS adaptor. K Calibration uses CHROMEGA™-ALOMEGA™ metals. E Calibration uses CHROMEGA™- Constantan metals.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 88401K In Stock   ¥2,020.00    Magnetic K thermocouple, max temp. 250°C (480°F) with 6 feet of cable.
 88401E 7 Weeks   ¥2,095.00    Magnetic E thermocouple, max temp. 250°C (480°F) with 6 feet of cable.
 88402K 12 Weeks   ¥2,215.00    Magnetic K thermocouple, max temp. 400°C (750°F) with 6 feet of cable.
 88402E 7 Weeks   ¥2,295.00    Magnetic E thermocouple, max temp. 400°C (750°F) with 6 feet of cable.
 Accessories
 88401K-RE 12 Weeks   ¥352.00    Replaceable K element for Model 88401K
 88401E-RE 7 Weeks   ¥389.00    Replaceable E Element for Model 88401E
 SMPW-K-M In Stock   ¥30.50    Glass-filled nylon, with window, K thermocouple type, male connector
 SMPW-K-F In Stock   ¥36.00    Glass-filled nylon, with window, K thermocouple type, female connector
 TAS-K-3 5 Weeks   ¥103.00    K type thermocouple, male standard to female mini
 TAS-K-4 20 Weeks   ¥104.00    K type thermocouple, female standard to female mini
† Price are shown in RMB.

 Note: Sold Separately Transition Adapter from Flat pin to Round pin male, TAS-*-3, where * is for calibration type.
88401 probes come with a replaceable element. Due to the design of the 88402, the element is not replaceable.
  Ordering Example: (1) 88401K Magnetic K thermocouple, max temp. 250°C (480°F), ¥2,020.00
