Signal Converters and Repeaters For D1000 and D2000 Digital Transmitters
A1000
1 year warranty OmegaCare

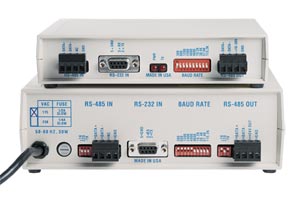

A1000:Signal Converters and Repeaters For D1000 and D2000 Digital Transmitters
Click for larger image.

¥ 2,825.00  A1000
• Fully Adjustable Baud Rates
• Integral 24 V, 1 A Power Supply Can Power up to 32 Transmitter Modules (A1000 Only)
• Repeater Function Amplifies RS-485 Signal to Drive 32 Additional Modules
• Optically Isolated Bi-directional Data Flow

View related products - USB, RS232, RS485 and Ethernet Data Acquisition Systems

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The A1000 and A2000 signal converters allow users to establish an effective data acquisition system over long distances. These converters change RS-232 communication signals to RS-485, to accommodate remote field communications, allowing bus lengths to 4,000 feet and baud rates to 115k.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 A1000 2 Weeks   ¥2,825.00    RS-232 to RS-485 Converter, 115 Vac power
 A1000-230 6 Weeks   ¥2,825.00    RS-232 to RS-485 Converter, 230 Vac power
 A2000 10 Weeks   ¥2,270.00    RS-232 to RS-485 Converter, 10-30 Vdc power
† Price are shown in RMB.

 Note: Each unit supplied with operator’s manual.
  Ordering Example: (1) A1000  RS-232 to RS-485 Converter, 115 Vac power, ¥2,825.00
