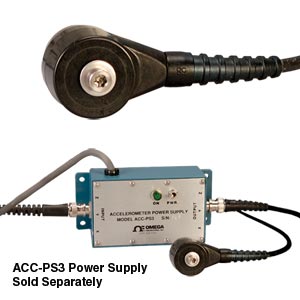

The ACC102A accelerometer uses a shear mode design for high performance. It has a rugged stainless steel inner structure covered by a molded polymer. This construction makes the ACC102 impervious to harsh environments, such as alkaline coolants, hot oil and water sprays, resulting in long, reliable service. Additional features include high shock protection (to protect from dropping or mishandling), cross wire protection (protects against miswiring), and up to 1000 volt static discharge protection. The ACC102 has a high 100 mV/g output and measures across wide frequency and acceleration ranges. A low impedance cable allows for runs up to 1000 ft. The ACC102 exhibits the low noise floor and high amplitude linearity you’d expect in more expensive units.
SPECIFICATIONS Excitation: 2 mA @ 24 to 30 Vdc, constant current (18 V supply can be used but will limit amplitude range) Rated Output: 100 mV/g nominal at 100 Hz Frequency Range: 3 Hz to 5 kHz (up to ±5% rated output shift) Amplitude Range: ±40 g peak w/ACC-PS1, ±75 g peak w/ACC-PS2, ACC-PS3 Amplitude Linearity: 1% up to 65 g peak Temperature Range: -40 to 82°C (-40 to 180°F) Temperature Sensitivity Effect: -54 to 38°C (-65 to 100°F): ≤5% FS; 38 to 121°C (100 to 250°F): ≤8% FS Thermal Shock: 1.2 g/°C Transverse Sensitivity: 7% of axial max Maximum g Without Damage: 5000 g peak Maximum g Without Clipping: 75 g peak Mounted Resonance Frequency: >23 kHz nominal Output Impedance: 200 Ω nominal Bias Voltage: 13 V nominal Base Strain: 0.04 g/microstrain nominal Noise Floor (Wideband): 0.0003 g (rms) Weight: 50 g (1.8 oz) nominal (without cable) Material: Inner Housing: 303 SS Outer Jacket: Non-conductive composite polymer Dimensions: 2.16 H x 2.54 cm D (0.85 x 1.00") Connector: 2.5 m (10') integral coaxial cable to BNCM Mounting: 10-32 removable stud Mounting Torque Max: 22 cm-kg (20 in-lb)
