General Purpose Top-Mount Industrial Accelerometer
ACC310

General Purpose Accelerometer

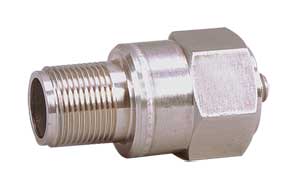

ACC310:General Purpose Top-Mount Industrial Accelerometer
Click for larger image.

• 2-Pin MIL-Style Connector
• Splashproof Design
• Ground Isolated
• Hermetic Seal
• For Motors, Pumps, Gearboxes, and General Industrial Applications

View related products - Dynamic Measurement

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

-
SPECIFICATIONS
Sensitivity @ 100 Hz, ±10%: 100 mV/g
Frequency Range:
    ±5%  5Hz to 10kHz
±10%  4Hz to 12kHz
±3dB  2Hz to 20kHz
Turn-On Time: ≤0.5 s
Amplitude Range: ±75 g peak
Mounting Resonance: >40 kHz
Transverse Sensitivity: ≤5%
Amplitude Linearity: <1%
Noise (Typical):
    Broadband:
2.5 Hz to 20 kHz  350µg
Spectral:
10 Hz  30µg/µHz
100 Hz  8µg/µHz
1000 Hz  3µg/µHz
Output Impedance: 100 Ω
Grounding: Isolated
Bias Voltage: 10 to 14 Vdc
Power Requirement: 24 to 30 Vdc
Current Regulating Diode: 1 to 6 mA cc
Temperature Range: -40 to 121°C (-40 to 250°F)
Base Strain Sensitivity, Max: 0.001 g/microstrain
Shock Limit: 5000 g peak

PHYSICAL
Weight: 68 g (2.4 oz)
Case Material: 304L SS
Design: Piezoelectric-ring shear
Sealing: Welded-hermetic
Mounting: ¼-28 stud (not included)
Mounting Torque: 2.8 N-m (25 in-lb)
Mating Connector: Amphenol 97-3106A-10SL-4S
Recommended Cabling: ACC-CB7-10
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 ACC310    Consult sales   General purpose accelerometer with top exit connector
 Accessories
 ACC-CB7-10 5 Weeks   ¥1,395.00    3.05 m (10') MIL/BNC twisted-pair shielded cable
 ACC-CB7-10WP 11 Weeks   ¥2,245.00    3.05 m (10') waterproof twisted-pair shielded cable
 ACC-PS2    Consult sales   3-range battery-powered signal conditioner
 ACC-PS3    Consult sales   AC-powered signal conditioner
 ACC-CB6 2 Weeks   ¥267.00    17.8 cm (7") BNCM/pigtail coaxial cable
 ME-0904    Consult sales   Reference Book: Vibration Analysis for Electronic Equipment
† Price are shown in RMB.

 Ordering Example: (1) ACC-CB7-10 10 foot cable, ¥1,395.00,
