Top-Mount Industrial Grade Accelerometer
ACC786A

Industrial Accelerometers

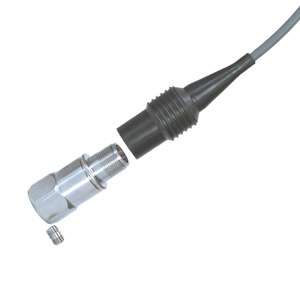

ACC786A:Top-Mount Industrial Grade Accelerometer
Click for larger image.

¥ 2,105.00  ACC786A
• Top Mount Design
• Rugged Industrial Designed Accelerometers
• Corrosion Resistant
• Hermetic Seal
• Case Isolated
• ESD Protection
• Reverse Wiring Protection

View related products - Dynamic Measurement

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The OMEGAROMETER series accelerometers are designed for industrial vibration measurements. They feature a hermetically sealed 316L stainless steel case suitable for harsh environments. The ACC786A is a general purpose accelerometer with a top cable exit.

SPECIFICATIONS
DYNAMIC
Sensitivity, ±5%, 25°C (77°F): 100 mV/g
Acceleration Range: 80 g peak
Amplitude Non-Linearity: 1%
Frequency Response:
   ±5%: 3 to 5000 Hz
   ±10%: 1 to 9000 Hz
   ±3 dB: 0.5 to 14,000 Hz
Resonance Frequency: 30 kHz
Transverse Sensitivity, Max: 5% of axial
Temperature Response:
   -50°C (-58°F) = -5%
   120°C (248°F) = 5%
ELECTRICAL
Power Requirement:
   Voltage Source: 18 to 30 Vdc
   Current Regulating Diode: 2 to 10 mA
Electrical Noise, Equiv. g:
   Broadband: 2.5 Hz to 25 kHz: 700 µg
   Spectral: 10 Hz: 10 µg√Hz
   100 Hz: 5 µg√Hz
   1000 Hz: 5 µg√Hz
Output Impedance, Max: 100 Ω
Bias Output Voltage: 12 Vdc
Grounding: Isolated case, internally shielded
ENVIRONMENTAL
Temperature Range: -50 to 120°C (-58 to 248°F)
Vibration Limit: 500 g peak
Shock Limit: 5000 g peak
Electromagnetic Sensitivity, Equiv. g, Max: 70 µg/gauss
Sealing: Hermetic
Base Strain Sensitivity, Max: .0002 g/microstrain
PHYSICAL
Sensing Element Design: PZT ceramic/shear
Weight: 90 g (3.2 oz)
Case Material: 316L SS
Mounting: 1?4-28 UNF tapped hole
Connections:
   Pin A: Power/signal
   Pin B: Common
Output Connector: 2 pin, MIL-C-5015 style
Mating Connector: Amphenol 97-3106A-10SL-4S type
Recommended Cabling: ACC-CB7-10
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 ACC786A 7 Weeks   ¥2,105.00    Industrial accelerometer with top exit connector
 Accessories
 ACC-CB7-10 5 Weeks   ¥1,395.00    3.05 m (10') twisted pair shielded cable
 ACC-CB7-10WP 11 Weeks   ¥2,245.00    3.05 m (10') waterproof twisted pair shielded cable
 ACC-B3    Consult sales   Magnetic mounting base for flat surfaces, 30 lbf
 ACC-B5    Consult sales   Magnetic mounting base for curved surfaces, 30 lbf
 ACC-PS2    Consult sales   Rechargeable power supply with built-in amplifier
 ACC-PS3    Consult sales   115 Vac powered power supply
 ACC-PS3-230VAC    Consult sales   230 Vac powered power supply
† Price are shown in RMB.

 Note: ACC786A includes mounting stud and calibration data. Specify cable separately, see Accessories.
  Ordering Example: (1) ACC-CB7-10 Shielded cable, ¥1,395.00,  plus (1) ACC786A Accelerometer, ¥2,105.00, ¥1,395.00 + 2,105.00 = $3,500.00
