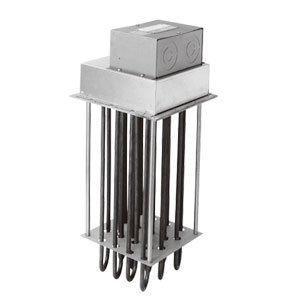

HIGH TEMPERATURE AIR DUCT HEATERS |
| ADH and ADHT Series |
|
 |
|
|
|
|
|
¥
14,610.00
ADH-005/480V/3P
|
|
| |
|
|
|
 |
APPLICATIONS
Heating air for various drying/curing operations up to 1200°F (648°C) air temperature, heat treating, re-heating or dehumidification, and other similar air heating applications.
FEATURES
Rugged construction. Sturdy 0.475" diameter tubular elements mounted to a heavy 14" or 38" thick steel flange. Terminal housing made of 18 gage aluminized steel. Element support plates of 16 gage aluminized steel are held in place by stainless steel support rods. High temperature units have the additional feature of stainless steel material for the 3" insulation housing and element support plate—all of which provides superior rigidity, strength and reliability. Long life metal sheath tubular elements—Corrosion/oxidation resistant sheath. High grade Incoloy sheath material for excellent corrosion/oxidation resistance at high operating temperatures.
Please review pdf data sheet (Related Links below) for complete product specifications
Examples of partnumbers in the "To Order" box, use the Part Number Builder for other Models.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) ADH-035/480V/3P 3-phase, 480V high temperature air duct heater, ¥47,265.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Style
|
| |
Select
ADH for Series ADH Outlet Air Temperatures to 800°F (426°C)
ADHT for Series ADHT Outlet Air Temperatures to 1200°F (648°C)
|
(2)
|
Power rating
|
| |
Select
005 for 5 kW
010 for 10 kW
020 for 20 kW
025 for 25 kW
030 for 30 kW
035 for 35 kW
040 for 40 kW
045 for 45 kW
050 for 50 kW
060 for 60 kW
100 for 100 kW
120 for 120 kW (ADHT Only)
160 for 160 kW (ADHT Only)
162 for 162 kW (ADH Only)
180 for 180 kW (ADHT Only)
216 for 216 kW (ADH Only)
240 for 240 kW (ADHT Only)
270 for 270 kW (ADH Only)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
