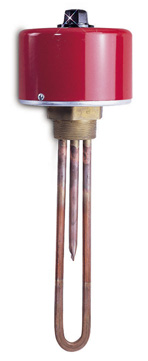

The OMEGALUX™ ARMT-2 Series clean water immersion heater
feature 2" NPT brass fitting screw plug for direct heating of the process
fluid in your tank or vessel. Tested design characteristics assure years
of dependable performance.
Please Note: The integral thermostat functions as a
temperature control only. This is not a fail safe device.
An approved pressure or temperature control should
be used with these heaters to assure safe operation.
See the Temperature Section for our full selection of control devices.
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or
installed or used by non-qualified personnel. See inside back cover
for additional warning.
T-2 Temp.Range (60°-250°F) Model No.
T-1 Temp.Range (0°-100°F) Model No.
kW
Phase
W/in2
No. Elem.
Dim. B in (cm)
ARMT-2155/*
ARMT-2155T1/*
1.5
1
48
1
12 (30)
ARMT-2205-3/**
ARMT-2205-3T1/**
2
1
51
2
8 (20)
ARMT-2255/***
ARMT-2255T1/***
2.5
1
48
2
91/2 (20)
ARMT-2305/**
ARMT-2305T1/**
3
1
48
2
12 (30)
ARMT-2405/***
ARMT-2405T1/***
4
1
48
2
18 (46)
ARMT-2505/***
ARMT-2505T1/***
5
1
53
2
19 13/16 (39)
ARMT-2605/***
ARMT-2605T1/***
6
1
47
2
251/8 (64)
ARMT-2705/***
ARMT-2705T1/***
7
1
49
2
28 (71)
ARMT-2105/***
ARMT-2105T1/***
10
1
46
2
40 1/2 (103)
ARMT-2125/240
ARMT-2125T1/240
12
1
46
2
48 (122)
ARMT-2125/480
ARMT-2125T1/240
12
1
46
2
48 (122)
ARMT-21505/240
ARMT-21505T1/240
15
1
50
2
54 (137)
/* Designate voltage; 120, 208, 240 VAC.
/** Designate voltage; 120, 208, 240 480 VAC.
/*** Designate voltage; 208, 240 480 VAC.
To order the unit with the optional E2 enclosure, insert E2 into the part number as shown, ARMT-2255E2T1/240.
* E2 enclosure not intended for use in hazardous areas.
† Price are shown in RMB.
Part Number Builder
Option Descriptions
(1)
kW
Select 15 for 1.5 kW 20 for 2 kW 25 for 2.5 kW 30 for 3 kW 40 for 4 kW 50 for 5 kW 60 for 6 kW 70 for 7 kW 10 for 10 kW 12 for 12 kW 150 for 15 kW
(2)
P/N ARMT-2205-3/** & ARMT-2205-3T1/**
Select Nothing(leave field blank) for Valid for all p/n except ARMT-2205-3/** & ARMT-2205-3T1/** -3 for Only valid for ARMT-2205-3/** & ARMT-2205-3T1/**
(3)
Enclosure
Select Nothing(leave field blank) for General Purpose NEMA-1
rated E2 for Moisture
Tight/Explosion Resistant
(4)
Temperature Range
Select Nothing(leave field blank) for Temp Range (60 to 250°F) T1 for Temp Range (0 to 100°F)
(5)
Voltage
Select 120V for 120 Vac 208V for 208 Vac 240V for 240 Vac 480V for 480 Vac
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
