Please Note: The integral thermostat functions as a temperature control only. This is not a fail safe device. An approved pressure or temperature control should be used with these heaters to assure safe operation. See Section P for our selection of control devices.

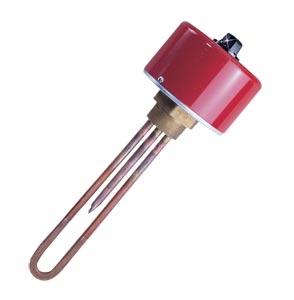

SPECIFICATIONS Wattage: 2 to 15 kW Power: 240, or 480V: 1 phase Sheath: 475" diameter Incoloy Screw Plug: 2" NPT Stainless Steel Thermostat: Bulb and capillary Enclosure: General Purpose, NEMA-1 rated, or type E2 moisture resistant/explosion resistant enclosure.
† Price are shown in RMB.
Part Number Builder
Option Descriptions
(1)
Wattage
Select 205-3 for 2 kW 255 for 2.5 kW 305 for 3 kW 405 for 4 kW 505 for 5 kW 605 for 6 kW 705 for 7 kW 1005 for 10 kW 1205 for 12 kW 1505 for 15 kW
(2)
Temperature Range and Enclosure Style
Select Nothing(leave field blank) for 60-250°F with a General Purpose Terminal Enclosure T1 for 0-100°F General Purpose Terminal Enclosure E2 for 60-250°F with a Moisture Resistant/Explosion Resistant Enclosure E2T1 for 0-100°F with a Moisture Resistant/Explosion Resistant Enclosure
(3)
Select 240V for 240 Vac 480V for 480 Vac
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
