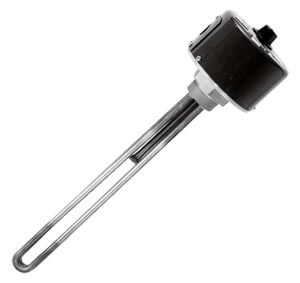

APPLICATIONS Heating medium viscosity oil — Suitable for heating medium bodied
oils such as industrial gear oils or numbers 4 and 5 residual fuel oils.
Heating provides low ambient temperature protection, ensuring
that oil remains fluid to lubricate effectively and reduce load on gear
motor drives.
Please Note: This integral thermostat functions as a temperature control only. This is not a fail safe device. An
approved pressure and/or temperature limit control should be used with these heaters to assure safe operation.
See Section P for our selection of controllers.
kW
W/in2
No. Htg. Elem.
Dim.B in(cm)
T3 Temp.Range (200-550°F) Model No.
T2 Temp. Range (60-250°F) Model No.
T1 Temp.Range (0-100°F) Model No.
Wt. Ib(kg)
ARMTO -2 Series with General Purpose Enclosure 1
2
15
2
24 7/8 (16)
ARMTO-2020/*
ARMTO-2020T2/*
ARMTO-2020T1/*
8 (4)
2.66
15
2
32 3/4 (16)
ARMTO-2026/*
ARMTO-2026T2/*
ARMTO-2026T1/*
9 (4)
3.33
15
2
40 1/4 (20)
ARMTO-2033/*
ARMTO-2033T2/*
ARMTO-2033T1/*
9 (4)
4
15
2
47 3/4 (23)
ARMTO-2040/**
ARMTO-2040T2/**
ARMTO-2040T1/**
10 (5)
5
15
2
57 1/2 (31)
ARMTO-2050/*
ARMTO-2050T2/*
ARMTO-2050T1/*
11 (5)
6
15
2
67 3/4 (41)
ARMTO-2060/*
ARMTO-2060T2/*
ARMTO-2060T1/*
12 (5)
ARMTO-2 Series with Moisture Tight/Explosion Resistant Enclosure 2†
0.2
15
2
24 7/8 (16)
ARMTO-2020E2/*
ARMTO-2020E2T2/*
ARMTO-2020E2T1/*
13 (6)
2.66
15
2
32 3/4 (16)
ARMTO-2026E2/*
ARMTO-2026E2T2/*
ARMTO-2026E2T1/*
14 (6)
3.33
15
2
40 1/4 (20)
ARMTO-2033E2/*
ARMTO-2033E2T2/*
ARMTO-2033E2T1/*
14 (6)
4
15
2
47 3/4 (23)
ARMTO-2040E2/**
ARMTO-2040E2T2/**
ARMTO-2040E2T1/**
15 (7)
5
15
2
57 1/2 (31)
ARMTO-2050E2/*
ARMTO-2050E2T2/*
ARMTO-2050E2T1/*
16 (7)
6
15
2
67 3/4 (31)
ARMTO-2060E2/*
ARMTO-2060E2T2/*
ARMTO-2060E2T1/*
17 (8)
/*Designate voltage, i.e., insert 240 for 240 Vac, or 480 for 480 Vac.
/** Designate voltage, ie., insert 208 for 208 Vac, 240 for 240 Vac, or 480 for 480 Vac.
†Caution: Explosion resistant type E2 construction refers to heater design features which provide explosion resisting containment of electrical
wiring according to National Electric Code. Abnormal application or use of heaters which in excessive temperatures can create hazardous
conditions which can lead to fire Consult Section Z for data on allowable watt densities for more viscous materials.
1 Heaters with General Purpose Enclosures are UL Listed with T1 or T2 Temps and CSA Certified with T1, T2 or T3 Temps.
2 Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C Certified with T1, T2 or T3 Temps.
† Price are shown in RMB.
Ordering Example: (1) ARMTO-2020/240V 2 kW heater with a thermostat range of 200-550°F powered by 240 Vac, ¥12,545.00
Part Number Builder
Option Descriptions
(1)
Wattage
Select 020 for 2 kW 026 for 2.66 kW 033 for 3.33 kW 040 for 4 kW 050 for 5 kW 060 for 6 kW
(2)
Temperature Range and Enclosure Style
Select Nothing(leave field blank) for 200-550°F with a general purpose terminal enclosure T1 for 0-100°F with a general purpose terminal enclosure T2 for 60-250°F with a general purpose terminal enclosure E2 for 200-550°F with a moisture tight/explosion resistant enclosure E2T1 for 0-100°F with a moisture tight/explosion resistant enclosure E2T2 for 60-250°F with a moisture tight/explosion resistant enclosure
(3)
Voltage
Select 208V for 208 Vac 240V for 240 Vac 480V for 480 Vac
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
