Please Note: The integral thermostat functions as a temperature control only. This is not a fail safe device. An approved pressure or temperature control should be used with these heaters to assure safe operation. See Section P for our selection of control devices.
SPECIFICATIONS Wattage: 2 to 18 kW Power: 208, 240 or 480 V; 3 phase power Sheath: Passivated stainless steel Screw Plug: 21/2" NPT passivated stainless steel Thermostat: Bulb and capillary Enclosure: General Purpose, NEMA-1 rated, or type E2 moisture resistant/explosion resistant enclosure
† Price are shown in RMB.
Ordering Example: (1) ARMTS-3305T1/240V/3P A 3 kW heater with a thermostat range of 0-100°F powered by 240 Vac, ¥16,725.00
Part Number Builder
Option Descriptions
(1)
Wattage
Select 305 for 3 kW 455 for 4.5 kW 605 for 6 kW 755 for 7.5 kW 905 for 9 kW 120 for 12 kW 150 for 15 kW 180 for 18 kW
(2)
Temperature Range and Enclosure Type
Select Nothing(leave field blank) for 60°-250°F with a General Purpose Terminal Enclosure T1 for 0°-100°F with a General Purpose Terminal Enclosure E2 for 60°-250°F with Moisture Resistant/Explosion Resistant Enclosure E2T1 for 0°-100°F with Moisture Resistant/Explosion Resistant Enclosure
(3)
Voltage
Select 240V for 240 Vac 480V for 480 Vac 208V for 208 Vac
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.

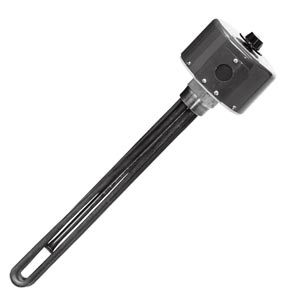

Keywords:Heavy Duty Immersion Heater with Integral Thermostat— 2 1/2" NPT Fitting
