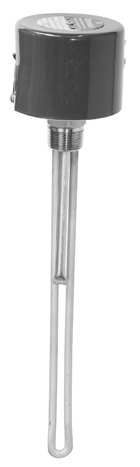

Lightweight Oil Immersion Heater with Thermostat—1" NPT Steel Fitting |
| ARTMO Series |
|
 |
|
|
|
|
|
¥
5,550.00
ARTMO-500/120V
|
| • |
Built in Thermostat— Three Temperature Ranges Available
|
| • |
0.25 to 0.50 kW
|
| • |
120 and 240 V, 1 Phase
|
| • |
0.315" Diameter Heavy Duty Steel Sheath
|
| • |
Lower Watt Density for Heating Light Weight Oils
|
| • |
Single Heating Element Design
|
View related products - Immersion Heaters
|
| |
|
|
|
 |
Heating low viscosity oil — For better flow, improved characteristics, and maintenance of bulk oil at predetermined temperature levels. Also suitable for hydrocarbon based coolants and heat transfer oils where adequate flow conditions are maintained.
Features rugged construction — Sturdy heating steel screw plugs provide superior rigidity and strength. Heavy duty jumper straps and terminal posts assure permanent tightness of connection’s carrying capacity.
High conductivity elements — Filled with highest purity blends of magnesium oxide refractory (MgO) compacted to a rock hard density to insure maximum thermal conductivity, maximum electrical resistance, and assure long element life.
|
|
|
|
|
|
† Price are shown in RMB.
Note: 1Heaters with General Purpose Enclosures are UL Listed and CSA certified.
2Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas.
Ordering Example: (1) ARTMO-250E2/120V Temp.Range (60-187°F), .250 kW, 20 W/in2, 120 V, ¥8,120.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Killowatt Rating
|
| |
Select
250 for .250 kW
375 for .375 kW
500 for .500 kW
|
(2)
|
Temperature Range
|
| |
Select
Nothing(leave field blank) for (60-187°F)
TH for (60-240°F)
TL for (0--127°F)
|
(3)
|
Voltage Rating
|
| |
Select
120V for 120 Volts
240V for 240 Volts
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
