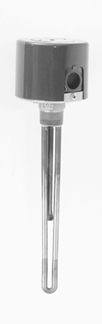

The OMEGALUX™ ARTMS Series Immersion Heaters feature all passivated stainless steel wetted construction, ideal for process solutions with a pH 5 to pH 9 range.
Please Note: This integral thermostat functions as a temperature control only. This is not a fail safe device. An approved pressure and/or temperature control should be used with these heaters to assure safe operation.
Note: For more details click on download at the bottom of this page under Related Links Ordering Example: (1) ARTMS-750/120V a 750 watt heater powered with a thermostat range of 60-187°F powered by 120 Vac, ¥8,985.00
Part Number Builder
Option Descriptions
(1)
Wattage
Select 750 for .75 kW 1000 for 1 kW 1250 for 1.25 kW 1500 for 1.5 kW 2000 for 2 kW 2500 for 2.5 kW 3000 for 3 kW
(2)
Temperature Range and Enclosure Style
Select Nothing(leave field blank) for 60-187°F with General Purpose Enclosure TH for 60-240°F with General Purpose Enclosure TL for 0-127°F with General Purpose Enclosure E2 for 60-187°F with a Moisture Resistant/Explosion Resistant Enclosure E2TH for 60-240°F with a Moisture Resistant/Explosion Resistant Enclosure E2TL for 0-127°F with a Moisture Resistant/Explosion Resistant Enclosure
(3)
Select 120V for 120 Vac 240V for 240 Vac
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
Keywords:Immersion Heater with Stainless Steel Wetted Construction, 1"NPT
