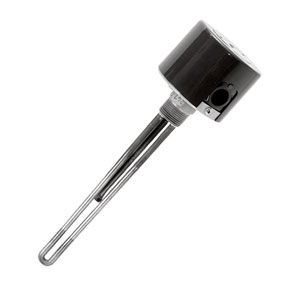

Clean Water Immersion Heater with Integral Thermostat, 1" NPT Fitting

Clean Water Immersion Heater with Integral Thermostat, 1" NPT Fitting

Americas

Europe

Asia/Pacific

ARTM Series

Tank Heater

ARTM Series:Clean Water Immersion Heater with Integral Thermostat, 1

Click for larger image.

^¥ 3,215.00 ARTM-750TL/240V

•	1" Brass Screw Plug
•	Copper Sheath for Clean Water Applications
•	Integral Bulb and Capillary Thermostat— 3 Temperature Ranges Available
•	U.L. Listed with General Purpose NEMA-1 Rated Enclosure
View related products - Immersion Heaters

ARTM Series screw plug immersion heaters are designed for direct contact heating in clean water applications. Please Note: The integral thermostat functions as a temperature control only. this not a fail safe device. An approved pressure or temperature control should be used with these heaters to assure safe operation. See section P for our full selection of control devices.

SPECIFICATIONS
Wattage: .75 to 3 kW Power: 120 or 240 VAC, 1 phase Sheath: 0.315" (.800 cm) diameter copper Screw Plug: 1" NPT brass Thermostat: bulb and capillary type, 3 temperature ranges available; 60-187°F, 60-240°F, or 0-127°F Watt Density: 64-68 W/in2 Enclosure: General Purpose NEMA-1; optional moisture tight/explosion resistant

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
ARTM-750TL/240V	7 Weeks	¥3,215.00	Temp.Range 0-127F,.75kW.,240Vac	qty.

ARTM-1500TL/240V	2 Weeks	¥3,755.00	Temp.Range 0°-127° F, 1.5 kW, 240 Vac	qty.

ARTM-2000E2/120V	7 Weeks	¥6,245.00	Temp.Range 60-187F, 2kW, 120Vac	qty.

ARTM-2000TL/120V	7 Weeks	¥3,875.00	Temp.Range 0-127F, 2kW, 120 Vac	qty.

ARTM-3000TH/240V	7 Weeks	¥3,985.00	Temp.Range 60°-240° F, 3 kW, 240 Vac	qty.

† Price are shown in RMB.

Note: For More details click on Download at the bottom of this page under Related Links

Part Number Builder

Option Descriptions

(1)

Wattage

Select
750 for .75 kW
1000 for 1.0 kW
1250 for 1.25 kW
1500 for 1.5 kW
2000 for 2.0 kW
2500 for 2.5 kW
3000 for 3.0 kW

(2)

Enclosure

Select
Nothing(leave field blank) for General Purpose Terminal Enclosure (Standard)
E2 for Moisture Tight/Explosion Resistant Enclosure

(3)

Temperature Range

Select
Nothing(leave field blank) for 60°-187°F
TH for 60°-240°F
TL for 0°-127°F

(4)

Voltage

Select
120V for 120 Vac
240V for 240 Vac

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
