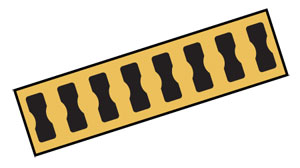

Strain Gage Accessories: Resistance Wire, Bondable Terminal Pads (BTP), Bridge Completion Resistors
BTP-1, RES-120, SGB-36

BTP-1, RES-120, SGB-36:Strain Gage Accessories: Resistance Wire, Bondable Terminal Pads (BTP), Bridge Completion Resistors
Click for larger image.

¥ 690.00  BTP-1
• FAST IMMEDIATE DELIVERY ON LARGE ORDERS! Stock to 1-Week!
• Bondable Terminal Pads for Easy Strain Gage Installation
• Balco, Copper and Manganin Resistance wire for Temp Comp and Zero Balance
• High Accuracy Bridge Completion Resistors

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

SPECIFICATIONS
RESISTANCE WIRE
Balco:
   Ohms/ft: 19.7
   Temp Coef: 0.45%/°C
Copper:
   Ohms/ft 0.415
   Temp Coef: 0.39%/°C
Manganin:
   Ohms/ft: 15.2
   Temp Coef: 0.002%/°C

BRIDGE COMPLETION RESISTORS
Accuracy: 0.1%
Temperature Compensation: 5 ppm; -20 to 80°C (-4 to 176°F)
Power: 1/4 W

BONDABLE TERMINAL PADS
Material: Copper
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Bridge Completion Resistors
 RES-120 13 Weeks   ¥157.00    120 ohm precision resistor
 RES-250 2 Weeks   ¥152.00    250 ohm Precision Resistor
 RES-350 2 Weeks   ¥149.00    350 ohm Precision Resistor
 Resistance Wire
 SGB-36 8 Weeks   ¥1,000.00    Balco Resistance Wire, 500 ft. spool
 SGC-36    Consult sales   Copper Resistance Wire, 1500 ft. spool
 SGM-36 10 Weeks   ¥335.00    Manganin Resistance Wire, 200 ft. spool
 Bondable Terminal Pads
 BTP-1 2 Weeks   ¥690.00    Bondable Terminal Pads (see specifications for size and layout) 70 Strips per Pack
 BTP-2 2 Weeks   ¥690.00    Bondable Terminal Pads (see specifications for size and layout) 60 Strips per Pack
 BTP-3 2 Weeks   ¥720.00    Bondable Terminal Pads (see specifications for size and layout) 50 Strips per Pack
 BTP-4 In Stock   ¥650.00    Bondable Terminal Pads (see specifications for size and layout) 30 Strips per Pack
 BTP-5 2 Weeks   ¥650.00    Bondable Terminal Pads (see specifications for size and layout) 20 Strips per Pack
 BTP-6 2 Weeks   ¥650.00    Bondable Terminal Pads (see specifications for size and layout) 10 Strips per Pack
 BTPB-1 2 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 70 Strips per Pack
 BTPB-2 2 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 60 Strips per Pack
 BTPB-3 2 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 50 Strips per Pack
 BTPB-4 2 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 30 Strips per Pack
 BTPB-5 6 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 20 Strips per Pack
 BTPB-6 6 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 10 Strips per Pack
 BTPC-1 6 Weeks   ¥685.00    Bondable Terminal Pads (see specifications for size and layout) 30 Strips per Pack
 BTPC-2 6 Weeks   ¥685.00    Bondable Terminal Pads (see specifications for size and layout) 25 Strips per Pack
 BTPC-3 6 Weeks   ¥685.00    Bondable Terminal Pads (see specifications for size and layout) 20 Strips per Pack
 BTPC-4 2 Weeks   ¥690.00    Bondable Terminal Pads (see specifications for size and layout) 15 Strips per Pack
 BTPD-1 6 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 25 Strips per Pack
 BTPD-2 2 Weeks   ¥545.00    Bondable Terminal Pads (see specifications for size and layout) 25 Strips per Pack
 BTPD-3 6 Weeks   ¥690.00    Bondable Terminal Pads (see specifications for size and layout) 20 Strips per Pack
 BTPE-1 2 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 25 Strips per Pack
 BTPE-2 2 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 25 Strips per Pack
 BTPE-3 2 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout) 20 Strips per Pack
 BTPE-3 2 Weeks   ¥510.00    Bondable Terminal Pads (see specifications for size and layout)
† Price are shown in RMB.

 Ordering Example: (1) BTP-2 1 package of 60 strips, bondable terminal pads with 0.6 mm spacing, ¥690.00
