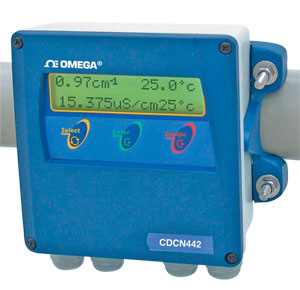

Toroidal Conductivity or Concentration Analyzer
 |
| Click for larger image. |
|
|
¥
9,060.00
CDCN442
|
| • |
NEMA 4X (IP68) Case
|
| • |
2 x 16 Digit LCD Readout
|
| • |
Assembly in 51 mm (2") Tube or Flat Surface or Panel 144 x 144 x 100 mm DIN (5.7 x 5.7 x 4")
|
| • |
Simple 3 Key Operation
|
| • |
Offers Cell Check
|
| • |
RS485 Output, ModBus and Proprietary Communication Protocol
|
View related products - Conductivity Instrumentation
|
| |
|
|
|
 |
The CDCN442 toroidal conductivity system
isdesigned for online monitoring of chemically
aggressive process solutions, water applications
that coat or foul traditional sensors, and plating
bath operations in which high current densities are
present. The sensor consists of 2 metallic ribbon
coils that are fixed in place by the sensor jacket
material. The drive coil is used to induce a current in
the process solution. The second sensing coil is used
to measure the current in the process solution; the magnitude
of this current is proportional to the conductivity of the process
solution. Toroidal sensors are available in polypropylene, and
PEEK™ to ensure that sensor-wetted materials are chemically
resistant to process chemicals. The sensor material is nonconductive,
thereby isolating the sensor from electrical noise and
ground loops that can influence the integrity of the measurement.
This material also makes the sensor resistant to electrode coating,
since most substances do not adhere to the sensor material.
Sensors can be submersion mounted for easy installation in open
tanks or pipe mounted in the optional 51 mm (2") tee fitting, which
is keyed to the sensor for proper alignment. Tee fitting material is
polypropylene. For larger pipe diameters, the sensor can be
insertion mounted through a 11.2 NPT ball valve for easy retraction.
The monitor comes with concentration/temperature tables for
sodium hydroxide, potassium hydroxide, hydrochloric acid, nitric
acid, and sulfuric acid. A configurable table allows the user to enter
data points for a custom concentration curve. Typical
applications include waste water treatment, power plants,
thermo electric plants, pharmaceutical, photographic industries,
soft drinks industries.
| Element |
Range |
Element |
Range |
| HNO3 |
0 to 280 g/L |
H2SO4 |
940 to 998 g/L |
| HF |
0 to 300 g/L |
H2CrO4 |
0 to 100 g/L |
| NaOH |
0 to 150 g/L |
NaCl |
0 to 260 g/L |
| NaOH |
150 to 500 g/L |
K2CO3 |
0 to 315g/L |
| H2SO4 |
0 to 300 g/L |
Na2SO4 |
0 to 220 g/L |
| H2SO4 |
350 to 800 g/L |
HCl |
200 to 350 g/L |
SPECIFICATIONS
General
Construction Materials:
Case: Aluminum (SAE323)
Faceplate: ABS
Anti-Corrosion Treatment: Finished with electrostatic epoxy paint
Power Consumption: 3.5 VA
Operation: 90-240 Vac 50/60Hz
Weight: 1.3 kg (2.8 lb)
Analyzer
Conductivity Range: 1 µS/cm to 1 S/cm
Resistivity Range: 10 MΩ/cm to infinity
Resolution: 0.1 or 0.01
Temperature Compensation: 0 to 100°C (32 to 212°F), Automatic or Manual
Operating Temperature: 5 to 40°C (41 to 104°F)
Cell Constants Offered: 0.01, 0.1, 1, 5 or 10 cm-1
Transmitter
Analog Output: 4 to 20 mA (2), recorder output
Impedance: 600 Ω
Optical Galvanic Isolation: 2000 Vac
Controller
On/Off Alarm Outputs (2): NO (1A / 240 Vac)
Control Output (4 to 20mA): can be programmed as P + I + D Control
CDE-442
Range: 1 mS to 1 S
Body Material: PVDF
Temperature: 0 to 130°C (32 to 266°F)
Insertion length: 100 mm (3.93")
Process Connection: ¾ NPT
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with hardware for 51 mm (2") tube installation, wall mount brackets, and operator's manual (sensor sold separately).
|
|
|
|
|
| |
|
