Extruder RTD Probes, Compression Fitting and Bayonet Styles

CF-000-RTD, BT-000-RTD, CF-090-RTD and BT-090-RTD

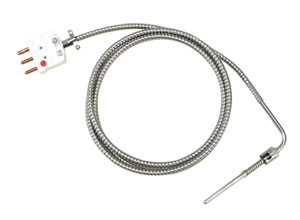

Click for larger image.

^¥ 1,535.00 BT-090-RTD-2 1/4-60-1

•	Ideal for Plastic Process Machinery and Applications Requiring Bayonet Locking Installation (BT Style) or Installations Using a Compression Fitting and SST Flex Hose Over the Cable (CF Style)
•	Sensors Contain Precision 100 Ohm Class A DIN Platinum Elements
•	All Models Incude 3/16" Diameter 304SS Sheaths and 60 Inches of Flex Armor
•	Temperature Range: -200 to 260ºC (Optional 480ºC Cable Available).
View related products - RTD (PT100) Probes, Elements and Assemblies

These RTD sensors are used extensively in plastic processing for measuring mold and equipment temperatures, and other applications where easy installation and removal are required. These sensors are installed using a spring loaded bayonet cap (BT Style) or compression fittings (CF Style). Mating adapters for the bayonet style mounting are also available (see BTA-1 through 6 depending on length needed)

Standard configurations are based on the most popular lengths with straight sheaths or with 90º bends. The included flex hose over the cable protects the wires from damage in rough environments. Standard terminations include spade lugs and Omega's OTP heavy duty connectors.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Compression Style

CF-000-RTD-2-60-1	8 Weeks	¥1,440.00	Straight compression style probe, 2" long “A” dimension, 60" of flexible armor cable, and a spade lug termination	qty.

CF-000-RTD-2-60-2	8 Weeks	¥1,530.00	Straight compression style probe, 2" long “A” dimension, 60" of flexible armor cable, and a OTP standard size connector termination	qty.

CF-000-RTD-4-60-1	2 Weeks	¥1,520.00	Straight compression style probe, 4" long “A” dimension, 60" of flexible armor cable, and a spade lug termination	qty.

CF-000-RTD-4-60-2	2 Weeks	¥1,560.00	Straight compression style probe, 4" long “A” dimension, 60" of flexible armor cable, and a OTP standard size connector termination	qty.

CF-090-RTD-2-60-1	2 Weeks	¥1,535.00	90° compression style probe, 2" long “A” dimension, 60" of flexible armor cable, and a spade lug termination	qty.

CF-090-RTD-2-60-2	8 Weeks	¥1,575.00	90° compression style probe, 2" long “A” dimension, 60" of flexible armor cable, and a OTP standard size connector termination	qty.

CF-090-RTD-4-60-1	8 Weeks	¥1,535.00	90° compression style probe, 4" long “A” dimension, 60" of flexible armor cable, and a spade lug termination	qty.

CF-090-RTD-4-60-2	8 Weeks	¥1,575.00	90° compression style probe, 4" long “A” dimension, 60" of flexible armor cable, and a OTP standard size connector termination	qty.

CF-090-RTD-6-360-1	2 Weeks	¥2,885.00	Bayonet style, 90° bend probe, 6" long “A” dimension, 360" of flexible armor cable, and a spade lug termination	qty.


Bayonet Style

BT-000-RTD-2 1/4-60-1	8 Weeks	¥1,605.00	Straight bayonet style, 2 1/4" long “A” dimension, 60" of flexible armor cable, and a spade lug termination	qty.

BT-000-RTD-2 1/4-60-2	8 Weeks	¥1,615.00	Straight bayonet style, 2 1/4" long “A” dimension, 60" of flexible armor cable, and a OTP standard size connector termination	qty.

BT-000-RTD-3 1/2-60-1	8 Weeks	¥1,605.00	Straight bayonet style, 3 1/2" long “A” dimension, 60" of flexible armor cable, and a spade lug termination	qty.

BT-000-RTD-3 1/2-60-2	8 Weeks	¥1,615.00	Straight bayonet style, 3 1/2" long “A” dimension, 60" of flexible armor cable, and a OTP standard size connector termination	qty.

BT-090-RTD-2 1/4-60-1	8 Weeks	¥1,535.00	Bayonet style, 90° bend probe, 2 1/4" long “A” dimension, 60" of flexible armor cable, and a spade lug termination	qty.

BT-090-RTD-2 1/4-60-2	8 Weeks	¥1,660.00	Bayonet style, 90° bend probe, 2 1/4" long “A” dimension, 60" of flexible armor cable, and a OTP standard size connector termination	qty.

BT-090-RTD-3 1/2-60-1	8 Weeks	¥1,620.00	Bayonet style, 90° bend probe, 3 1/2" long “A” dimension, 60" of flexible armor cable, and a spade lug termination	qty.

BT-090-RTD-3 1/2-60-2	8 Weeks	¥1,660.00	Bayonet style, 90° bend probe, 3 1/2" long “A” dimension, 60" of flexible armor cable, and a OTP standard size connector termination	qty.


Bayonet Adaptors

BTA-1		¥87.00	Overall Length: 7/8 Inches Thread Size:1/8-27 NPT	qty.

BTA-2	2 Weeks	¥87.00	Overall Length: 7/8 Inches Thread Size:3/8-24	qty.

BTA-3		¥107.00	Overall Length: 1 3/8 Inches Thread Size:1/8-27 NPT	qty.

BTA-4	2 Weeks	¥101.00	Overall Length: 1 3/8 Inches Thread Size:3/8-24	qty.

BTA-5	2 Weeks	¥122.00	Overall Length: 2 1/2 Inches Thread Size:1/8-27 NPT	qty.

BTA-6	2 Weeks	¥116.00	Overall Length: 2 1/2 Inches Thread Size:3/8-24	qty.

† Price are shown in RMB.

Note:
* For other lengths of armored cable, change “60” in model number to length desired and add $3.50 per foot over 5 feet (60 inches).
Other "A" lengths available. Price: $5 plus $1 per inch over 6"

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Adaptors for insertion and pipe clamp use also available.
Ordering Example: (1) CF-000-RTD-2-60-2 Straight compression style probe, 2, ¥1,530.00

Part Number Builder

(1)		(2)			(3)			(4)
	- -		- - R R T T D D	- -		- - 6 6 0 0	- -
Qty:

Option Descriptions

(1)

Styles

Select
BT for Bayonet style
CF for Compression style

(2)

Bend Options

Select
000 for No bend
090 for 90° Bend

(3)

Length Options

Select
2 1/4 for 2 1/4 in (BT Only)
3 1/2 for 3 1/2 in (BT Only)
2 for 2 in (CF Only)
4 for 4 in (CF Only)

(4)

Termination Options

Select
1 for Spade Lugs
2 for OTP Connector

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
