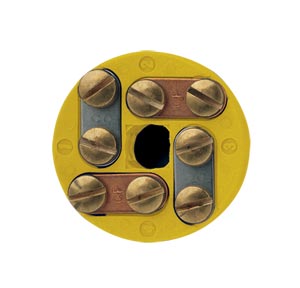

Round Terminal Blocks

CH62, CH63, CH64

Click for larger image.

^¥ 171.00 CH64-K

•	ANSI or IEC^† Color-Coded
•	Allows Single or Dual Wire Pair Connection
•	Rugged Glass-Filled Nylon Terminal Block Construction
•	-29 to 220°C (-20 to 425°F) Temperature Rating
•	Fits 1.5 to 6 mm (1/16 to 1/4") Probes, Tubes and Cable Sheaths
View related products - Thermocouple Connectors and Panel Systems

OMEGA's color-coded CH series terminal blocks are designed to fit metal-sheathed cable or probes between 1.5 and 6 mm (1/16 and 1/4") in diameter. The CH terminal blocks use a 1/8 NPT compression fitting to adapt to probes or cables (sold separately; please see page A-131).

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

2 Terminals

CH62-K	2 Weeks	¥184.00	Two Position Round Terminal Block, Type K Thermocouple	qty.

CH62-J	8 Weeks	¥171.00	Two Position Round Terminal Block, Type J Thermocouple	qty.

CH62-T	2 Weeks	¥171.00	Two Position Round Terminal Block, Type T Thermocouple	qty.

CH62-E	5 Weeks	¥171.00	Two Position Round Terminal Block, Type E Thermocouple	qty.

CH62-U	2 Weeks	¥171.00	Two Position Round Terminal Block, Uncompensated	qty.


3 Terminals

CH63-U	2 Weeks	¥171.00	Three Position Round Terminal Block, Uncompensated	qty.


4 Terminals

CH64-K	2 Weeks	¥171.00	Four Position Round Terminal Block, Type K Thermocouple	qty.

CH64-J	5 Weeks	¥174.00	Four Position Round Terminal Block, Type J Thermocouple	qty.

CH64-T	5 Weeks	¥171.00	Four Position Round Terminal Block, Type T Thermocouple	qty.

CH64-E	2 Weeks	¥171.00	Four Position Round Terminal Block, Type E Thermocouple	qty.

CH64-U	5 Weeks	¥171.00	Four Position Round Terminal Block, Uncompensated	qty.

† Price are shown in RMB.

Note: ^†add suffix "-IEC" for IEC color code
Ordering Example: (1) CH62-K Two-position round terminal block, type K, ¥184.00

Part Number Builder

	(1)	(2)
C C H H
Qty:

Option Descriptions

(1)

Model

Select
62 for 2 terminals
63 for 3 terminals
64 for 4 terminals

(2)

Calibration Code

Select
-J for J thermocouple
-K for K thermocouple
-T for T thermocouple
-E for E thermocouple
-S for S thermocouple
-U for Uncompensated lugs

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
