Compact Immersion Heater for Difficult Clean Liquids–2" NPT Fitting |
| CH-SD Series |
|
 |
|
|
|
|
|
¥
12,555.00
CH-SD-5043
|
| • |
Incoloy Sheath for Compatibility with More Difficult Clean Liquids
|
| • |
2" NPT Brass Screwplug with Compact 3 Element Design
|
| • |
5 to 10 kw
|
| • |
General Purpose, NEMA-1 Rated Enclosure
|
View related products - Immersion Heaters
|
| |
|
|
|
 |

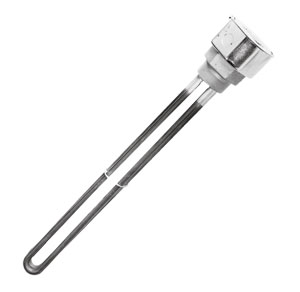

The OMEGALUX™ CH-SD Series features a compact 3 element heater design with a 2" brass screw plug. The Incoloy sheath allows compatibility with difficult clean liquids. A popular application for CH-SD Series is heating for industrial dishwashing equipment.
Please Note: This immersion heater should be used with an approved temperature control device to assure safe operation. See Section P for our selection of process controllers.
SPECIFICATIONS
Wattage: 5 to 10 kW
Power: 208, 240, or 480V
Sheath: .430" 1(cm) Diameter Incoloy
Screw Plug: NPT brass 2"
Watt Density: 50 W/in2
Enclosure: Compact General Purpose
|
|
|
|
|
|
† Price are shown in RMB.
Note: CAUTION AND WARNING! Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel.
Ordering Example: (1) CH-SD-504 a 240 volt, 5 kW heater, ¥12,555.00
|
|
|
|
|
| |
|
