Dry Block Calibrators
CL-770A, 780A, 790A Series
3 year warranty CE OmegaCare

Dry Block Calibrators

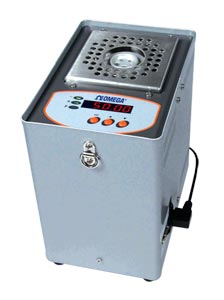

CL-770A, 780A, 790A Series:Dry Block Calibrators
Click for larger image.

¥ 27,600.00  CL-780A
• CE Marked
• Housed in a Rugged Metal Case for Field Use
• RS232 Computer Interface for Data and Program Transfer or Real Time Control
• High Accuracy and Stability for Certifying Temperature Sensors and Hydraulic Thermostats
• Fast Setting Time for Rapid Testing
• Large Interchangeable Insert Format for Flexibility of Use
• Fast Heat-Up and Cool-Down Times
• Improved Uniformity and Control Stability of the Temperature Zone
• Display Resolution: 0.01
• NIST-Traceable Calibration Certificate

View related products - Precision Calibration Equipment and Ice Point References

Click to scroll below to order See Specs PDF Manuals Software Related Items View a printer friendly page

Models are shipped ready for use right out of the box AC power cord, insert removal tool, NIST-traceable calibration and RS232 interface. The CL-700A Series range is covered by an industry leading 3-year parts and labor warranty. The CL-700A Series models use the same inserts as previous models, so you can easily upgrade without the need to replace any custom inserts you may already have. For those who want to run a unit from a PC we offer Calsoft software which is free for download from our website.

SPECIFICATIONS

CL-770A
Minimum Temperature: 45ºC (113ºF) below ambient
Maximum Temperature: 140ºC (284ºF)
Temperature Accuracy: ±0.3ºC (32.5ºF)
Temperature Uniformity (Radial): ±0.2ºC (32.3ºF)
Temperature Stability (After 10 Min): ±0.05ºC (32.09ºF)
Display Resolution: 0.01ºC or 0.1ºF
Setpoint Resolution: 0.1ºC or 0.1ºF
Heating Rate, 20 to 100ºC (68 to 212ºF): 5 min
Cooling Rate, 100 to 0ºC (212 to 32ºF): 9 min
Large Well Inserts: 38 x 114.3 mm (1.5 x 4.5")
Dimensions: 267 H x 206 W x 290 D mm (10.7 x 8.1 x 11.4")
Weight: 12.7 kg (28 lb)
RS232 Interface: Included

CL-780A
Minimum Temperature: 20ºC (68ºF) above ambient
Maximum Temperature: 425ºC (797ºF)
Temperature Accuracy: ±0.3ºC (32.5ºF)
Temperature Uniformity (Radial): ±0.2ºC (32.3ºF)
Temperature Stability (After 10 Min): 200ºC (392ºF): ±0.03ºC 425ºC (797ºF): ±0.05ºC
Display Resolution: 0.01ºC or 0.1ºF
Setpoint Resolution: 0.1ºC or 0.1ºF
Heating Rate, 20 to 400ºC: 12 min
Cooling Rate, 400 to 100ºC: 21 min
Large Well Inserts: 38 x 114.3 mm (1.5 x 4.5")
Dimensions: 269 H x 170 W x 254 D mm (10.6 x 6.7 x 10.0")
Weight: 6.3 kg (14 lb)
RS232 Interface: Included

CL-790A
Minimum Temperature: 25ºC (77ºF) above ambient
Maximum Temperature: 650ºC (1202ºF)
Temperature Accuracy: ±0.4ºC (32.7ºF)
Temperature Uniformity (Radial): ±1.0ºC (33.8ºF)
Temperature Stability (After 10 Min): ±0.09ºC (32.2ºF)
Display Resolution: 0.01ºC or 0.1ºF
Setpoint Resolution: 0.1ºC or 0.1ºF
Heating Rate, 20 to 600ºC: 34 min
Cooling Rate, 600 to 100ºC: 33 min
Large Well Inserts: 38 x 152 mm (1.5 x 6.0")
Dimensions: 277 H x 170 W x 300 D mm (10.9 x 6.7 x 11.8")
Weight: 10.8 kg (24 lb)
RS232 Interface: Included
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Temperature Calibrators
 CL-770A    Consult sales   Block calibrator 120 V, 900 W, 50/60 Hz
 CL-770A-230    Consult sales   Block calibrator 240 V, 900 W, 50/60 Hz
 CL-780A 101 Weeks   ¥27,600.00    Block calibrator 120 V, 900 W, 50/60 Hz
 CL-780A-230    Consult sales   Block calibrator 240 V, 900 W, 50/60 Hz
 CL-790A In Stock   ¥48,275.00    Block calibrator 120 V, 1100 W, 50/60 Hz
 CL-790A-230 2 Weeks   ¥62,375.00    Block calibrator 240 V, 1100 W, 50/60 Hz
 Inserts
 CL701A 2 Weeks   ¥7,135.00    Insert, 5 x 1/4"
 CL702A 2 Weeks   ¥8,100.00    Insert, 5 x 3/8", 5/16", 1/4", 3/16", 1/8"
 CL703A 16 Weeks   ¥4,610.00    Insert, 2 x 1/4", 2 x 3/8"
 CL704A 16 Weeks   ¥4,610.00    Insert, 2 x 1/4", 2 x 1/2"
 CL705A    Consult sales   Insert, 1 x 1/4", 9/16"
 CL706A 16 Weeks   ¥4,610.00    Insert undrilled
 CL707A 16 Weeks   ¥4,635.00    Insert, 1 x 1/4", 5/8"
 CL708A    Consult sales   Insert, 1 x 1/4", 11/16"
 CL709A    Consult sales   Insert, 1 x 1/4", 3/4"
 Accessories
 CL780-CASE 16 Weeks   ¥2,915.00    Soft carrying case for model CL-780A
 CL7A-CASE 16 Weeks   ¥3,135.00    Soft carrying case for models CL-770A and CL-790A
† Price are shown in RMB.

 Note: Comes with complete operator’s manual, power cord, insert extractor tool, NIST-traceable calibration and RS232C interface.
