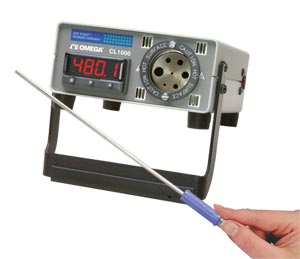

Miniature hot point™ Dry Block Calibrator
CL1000 Series
3 year warranty

Hot Point Dry Block Calibrator, Portable
CL1000 Series:Miniature hot point™ Dry Block Calibrator
Click for larger image.

¥ 22,990.00  CL1000A
•

There is a component issue on this part. Please see the DBCL-400 Series as a possible replacement.
• Calibrates from Ambient plus 11°C to 260°C (Ambient plus 20°F to 500°F )
• Rugged Miniature Handheld, Benchtop and Portable Design
• Fast, Accurate, Stable Readings
• Fast Heat-Up/ Cool-Down Time
• Standard and Metric Well Designs Available
• CE Marked Models
• NIST Calibration Certificate With 2 Data Points Included
• Soft Carrying Case, Power Cord and Complete Operator’s Manual Included
• Built-in Digital 1/32 Temperature Controller

View related products - Calibration Equipment

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

Available Well Styles* Dimensions: mm(inch)
STYLE A STYLE B
STYLE C STYLE D
OMEGA’s new CL1000 Series Mini hot point™ dry block probe calibrator offers a fast, accurate, stable solution for calibrating temperature probes in both the laboratory and in the field by providing a lightweight, rugged miniature design. There are 4 different probe well styles available in either 115V or 230V versions. The CL1000 Series has been engineered into a custom fabricated metal enclosure together with a high performance 1/32 DIN controller, and has been designed to meet a high level of quality, reliability and safety. 230 Vac units carries the CE mark and have achieved performance results high above the required levels. The calibrator has a temperature calibration range of ambient plus 11°C to 260°C (ambient plus 20°F to 500°F). Each CL1000 comes complete with power cord, soft carrying case and operator’s manual and NIST traceable celibration certificate.

PLEASE NOTE: Items listed as "Stock" require 5 Business Days for NIST Certification and Order Processing. Due to a shortage of material the Soft Case will be back ordered and shipped at a later date.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Temperature Calibrators
 CL1000A 11 Weeks   ¥22,990.00    DBCL-400 Series as a possible replacement. Mini hot point® Dry Block Calib., Well Style A, 115Vac, range: Amb. +11 to 260C (Amb. +20 to 500F)
 CL1000A-C2 11 Weeks   ¥24,610.00    Mini hot point® Dry Block Calib., Well Style A, 115Vac, range: Amb. +11 to 260C (Amb. +20 to 500F) with communications output
 CL1000A-230V 11 Weeks   ¥22,990.00    Mini hot point® Dry Block Calib., Well Style A, 230Vac, range: Amb. +11 to 260C (Amb. +20 to 500F)
 CL1000B 11 Weeks   ¥24,730.00    Mini hot point® Dry Block Calib., Well Style B, 115Vac, range: Amb. +11 to 260C (Amb. +20 to 500F)
 CL1000B-230V    Consult sales   Mini hot point® Dry Block Calib., Well Style B, 230Vac, range: Amb. +11 to 260C (Amb. +20 to 500F)
 CL1000C 11 Weeks   ¥22,990.00    Mini hot point® Dry Block Calib., Well Style C, 115Vac, range: Amb. +11 to 260C (Amb. +20 to 500F)
 CL1000C-230V 11 Weeks   ¥22,990.00    Mini hot point® Dry Block Calib., Well Style C, 230Vac, range: Amb. +11 to 260C (Amb. +20 to 500F)
 CL1000D 11 Weeks   ¥22,990.00    Mini hot point® Dry Block Calib., Well Style D, 115Vac, range: Amb. +11 to 260C (Amb. +20 to 500F)
 CL1000D-230V 11 Weeks   ¥22,990.00    Mini hot point® Dry Block Calib., Well Style D, 230Vac, range: Amb. +11 to 260C (Amb. +20 to 500F)
† Price are shown in RMB.

 Note: Only 230 Vac model is available as CE marked.
  Ordering Example: (1) CL1000A Mini hot point™ Dry Block Probe Calibrator, Well Style A, 115 Vac (includes owner's manual and soft carry case), ¥22,990.00
   Part Number Builder
(1) (2) (3)
C
C
L
L
1
1
0
0
0
0
0
0
Qty:
Option Descriptions
(1) Style Options
  Select
A for Mini hot point dry block probe calibrator 115 Vac
B for Mini hot point dry block probe calibrator 115 Vac
C for Mini hot point dry block probe calibrator 115 Vac
D for Mini hot point dry block probe calibrator 115 Vac
(2) Additional Option
  Select
Nothing(leave field blank) for None
-230V for Mini hot point dry block probe calibrator 230 Vac
(3) Communications Option
  Select
Nothing(leave field blank) for None
-C2 for RS232 communications and free CN9-SW software pre-wired 1.8 m (6in) cable included
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
