Thermocouple Calibrator - Discontinued |
| CL130 |
|
 |
|
|
|
|
 |
The CL-130 model has been discontinued. Please see the CL541-Plus as a possible alternative or contact our Temperature Engineering department.

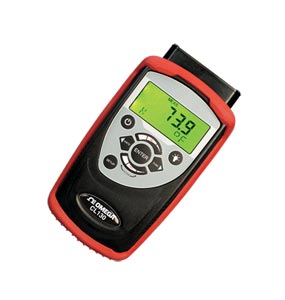

The CL130 thermocouple calibrator has been designed
using the latest technology to provide reliable accuracy
throughout its entire operating temperature range. The
compact design makes the unit easy to carry and the
intuitive user interface makes it easy to use. Temperature
measurements/simulations are displayed on a large, easyto-
read liquid crystal display (LCD). This unit has two
backlights: a green backlight which is user activated to
improve readability in low light conditions, and an automatic
red backlight which indicates an over-range condition.
Twelve keys provide access to the functional modes and
menus, including measure, simulate, setup, run, record,
edit, and backlight activation.
SPECIFICATIONS
mV Range, Accuracy: -15 to 80 mV, 0.005% Rdg ±6 mV
mV Temp. Effect: ±2 µV/°C (Ref. Temp = 23°C)
Cold Junction Effect: ±0.05°C/°C
Cold Junction Accuracy: ±0.1°C at 25°C
Resolution:
Thermocouple Types E, J, K, N, T: 0.1°C
Thermocouple Types B, R, S: 1°C
mV: 0.001 mV (1 µV)
Environmental:
Storage: -40 to 85°C (-40 to 185°F)
Operating: -10 to 50°C (14 to 122°F)
Humidity: 10 to 90% RH
Maximum Input Voltage: 30 Vdc
Power Requirement
Batteries: 3 “AA” batteries (included), field replaceable
Dimensions:
Enclosure: 165 H x 81 W x 28 mm D (6.5 x 3.2 x 1.1")
Polycarbonate, Permanently Static Dissipative, ESD Protection Enclosure with Boot: 173 H x 89 W x 33 mm D (6.8 x 3.5 x 1.3")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator’s manual, shock resistant holster, 3 “AA” alkaline batteries.
|
|
|
|
|
| |
|
