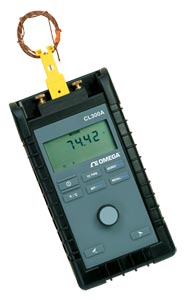

Multifunction Thermocouple Calibrator |
| CL300A |
|
 |
|
|
|
|
 |
The CL300A multifunction
thermocouple/mV calibrator
combines high accuracy with
ease of use. Its accuracy of
±0.3°C (±0.5ºF) includes all errors,
at resolutions of 0.01°C or °F in
measure mode and 0.1°C or °F
in source mode. Features include
min/max recall in measure mode,
3 setpoints per thermocouple type,
a large knob for decade control of
the output in source mode, and
compatibility with both bare-wire
and miniplug inputs.
SPECIFICATIONS
(1 Year at 23 ±5°C; % of Reading
Unless Otherwise Noted)
Output Voltage
Range: -10 to 75 mV
Resolution: 1 µV
Accuracy: ±0.007% rdg, ±10 µV
Output Impedance: 1 Ω
Input Voltage
Range: -10 to 75 mV/thermocouple source/measure
Thermocouple Types: J, K, T, E, R, S, B, L, U, C
Resolution
Source: ±0.1°C or °F
Measure: ±0.01°C or °F
Accuracy:
J: ±0.5°C; -210 to -100°C, ±0.3°C; -100 to 1200°C
K: ±0.6°C; -200 to -100°C, ±0.35°C; -100 to 1000°C, ±0.5°C; 1000 to 1372°C
T: ±0.7°C; -200 to -150°C, ±0.3°C; -150 to 400°C
E: ±0.5°C; -200 to -100°C, ±0.3°C; -100 to 1000°C
R: ±1.8°C; 0 to 250°C, ±1.0°C; 250 to 1767°C
S: ±1.8°C; 0 to 250°C, ±1.0°C; 250 to 1767°C
B: ±1.7°C; 600 to 1000°C, ±1.2°C; 1000 to 1820°C
L: ±0.5°C; -200 to -100°C, ±0.4°C; -100 to 900°C
U: ±0.7°C; -200 to 0°C, ±0.3°C; 0 to 600°C
C: ±0.4°C; 0 to°C 1000°C, ±0.7°C; 1000 to 1800°C, ±1.2°C; 1800 to 2316°C
Resolution: 1 ΩV
Accuracy: ±0.007% rdg, ±10 ΩV
Input Impedance: >1 MΩ
CJC Temp Offset: ±0.05°C/°C outside of 23 ±5°C
Warm-Up Time: 1 minute to specification
Environmental
Operating Temperature:-10 to 55°C (14 to 131ºF)
Storage Temperature: -20 to 70°C (-4 to 158ºF)
Power Requirement: 9 Vdc
Battery: 9 V alkaline (included)
Optional Power: Ni-Cad battery, AC adaptor/charger
Mechanical
Dimensions: 144.7 H x 80.0 W x 36.3 mm D (5.7 x 3.15 x 1.43")
Weight: 340 g (12 oz)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with flexible protective sleeve, 9 V battery, Type K thermocouple, operator’s manual and calibration certificate.
|
|
|
|
|
| |
|
