Calibrator/Thermometer |
| CL3515R |
|
 |
|
|
|
|
|
|
|
| • |
USB and RS232 Interface with Windows Software
|
| • |
11 Types of Thermocouples: K, J, T, E, R, S, N, L, U, B, and C (in °C, °F, or K), and mV Signal Output
|
| • |
NIST-Traceable Calibration Certificate with 7 Data Points (Included)
|
| • |
2 Channels for Thermocouple Temperature Measurement (T1 and T2) with Offset Adjustment
|
| • |
Ergonomic Rotary Knob Allows for One-Handed Operation
|
View related products - Precision Calibration Equipment and Ice Point References
|
| |
|
|
|
 |

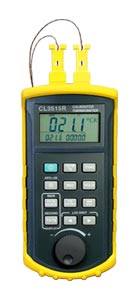

The CL3515R is a portable
calibrator/thermometer with a 4-digit
LCD. It is designed to use external
K/J/T/E/R/S/N/L/U/B/C type
thermocouples as temperature
sensors. OMEGA™ offers a complete
selection of thermocouples, or we
can custom-design parts to meet
your specifications. The
thermometer features a dual
thermocouple input and an
adjustable thermocouple offset.
The thermocouple types comply
with the NIST monograph 175,
revised to ITS-90 standards.
SPECIFICATIONS
Thermocouple (Resolution) Measurement Range*:
K: (0.1°) -200 to 1372°C(-328 to 2501°F)
J: (0.1°) -210 to 1200°C(-346 to 2192°F)
T: (0.1°) -250 to 400°C(-418 to 752°F)
E: (0.1°) -250 to 1000°C(-418 to 1832°F)
R: (1°) 0 to 1767°C(32 to 3212°F)
S: (1°) 0 to 1767°C(32 to 3212°F)
N: (0.1°) -200 to 1300°C(-328 to 2372°F)
L: (0.1°) -200 to 900°C(-328 to 1652°F)
U: (0.1°) -200 to 600°C(-328 to 1112°F)
B: (1°) 600 to 1820°C(1112 to 3308°F)
C: (1°) 0 to 2316°C(32 to 4200°F)
* According to temperature standard ITS-90.
Accuracy:
Thermocouple Types K/J/T/E/L/U:
±(0.05% rdg + 0.5°C) -50 to 1372°C[±(0.05% rdg + 1.0°F) -58 to 2501°F]
±(0.05% rdg + 1.0°C) -50 to -250°C[±(0.05% rdg + 2.0°F) -58 to -346°F]
Thermocouple Type N:
±(0.05% rdg + 1.0°C) -50 to 0°C[±(0.05% rdg + 2.0°F) -58 to 32°F]
±(0.05% rdg + 0.5°C) 0 to 1300°C[±(0.05% rdg + 1.0°F) 32 to 2372°F]
Thermocouple Types R/S/B/C:
±(0.05% rdg + 2°C) 0 to 1767°C[±(0.05% rdg + 4°F) 32 to 3212°F]
Thermocouple Simulation Range:
Resolution: 0.1° (1° for R/S/B/C)
Accuracy*: ±(0.3°C + 10 µV)
* Accuracy is specified for operating temperatures from 18 to 28°C (64 to 82°F) for 1 year, not including thermocouple error.
mV Range: -25 to 75 mV
Resolution: 10 µV
Accuracy: ±0.025% + 1 digit
Temperature Coefficient: 0.1 times the applicable accuracy specification per °C from 0 to 18°C and 28 to 50°C (32 to 64°F and 82 to 122°F)
Display: 4-digit LCD with max reading of 19999
Input Connector: Miniature thermocouple connector (SMP type)
Power: 9V battery (included)
Battery Life: 17.5 hours nominal with low-battery indicator
Dimensions: 192 H x 91 W x 52.5 mm D(7.5 x 3.5 x 2.1")
Weight: 320 g (0.7 lb)
Environmental Ambient Operating Ranges: 0 to 50°C (32 to 122°F), <80% RH
Storage Ranges: -20 to 60°C (-4 to 140°F), <70% RH
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with 2 Type K beaded thermocouples [max temperature 260°C (500°F)], 9 V battery, TAS transition adaptor, 1 Type K cable, 2 PC interface cables (USB and RS232C) and software and operator’s manual.
Ordering Example: (1) CL3515R Calibrator/Thermometer, ¥3,485.00, plus (1) RSC-J-1-4-4 J Cable with 2 male connectors, ¥294.00, ¥3,485.00 + 294.00 = $3,779.00
|
|
|
|
|
| |
|
