Portable Dry Block Calibrator
CL-355A
1 year warranty CE OmegaCare

Portable Dry Block Calibrator
CL-355A:Portable Dry Block Calibrator
Click for larger image.

¥ 46,350.00  CL-355A
• 10 Insert Formats Available
• One Multi-Well Insert Included (1/8, 3/16, 1/4, 5/16, 3/8")
• Maximum Operating Temperature of 400°C (752°F)
• Independent Over- Temperature Cutout
• Temperature Sensor Burnout Protection
• NIST-Traceable Calibration Certificate
• Shoulder Carrying Strap, Mains Cable and Insert Removal Tool

View related products - Precision Calibration Equipment and Ice Point References

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

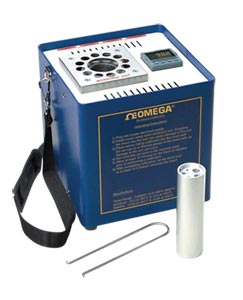

The CL-355A is a small, lightweight, portable dry block calibrator, that offers fast heat-up and cooldown times with excellent performance specifications at a wide operating temperature range. It’s a good choice for standard bench lab work or as a portable field unit. The unit covers the temperature range from 5°C (9ºF) above ambient up to 400°C (752ºF) using a large multi-well machined aluminum insert block as the heat transfer medium to the sensors under test. The CL-355A uses the same aluminum inserts as the CL-740A calibrator. This calibrator is designed to work safely under the following conditions: ambient temperature range: 5 to 40°C (9 to 104°F), up to 95% relative humidity, non-condensing.

SPECIFICATIONS
Minimum Temperature: 5°C (9°F) above ambient
Maximum Temperature: 400°C (752°F)
Cooling Rate,400 to 100°C(752 to 212ºF): 21 min
Heating Rate, 20 to 400°C(68 to 752ºF): 12 min
Independent Over-Temperature Cutout: 450°C (842ºF) approx.
Fan Cooling: Automatic
Display Resolution: 0.1°
Weight: 4 kg (9 lb)
Insert Immersion Depth: 4.5
Dimensions: 222.25 H x 203.2 W x 203.2 D mm(8.8 x 7.9 x 7.9")
    Stability After 15 Min:: ±0.15°C (±0.27ºF)
    Display Accuracy: : ±0.6°C (±1.1ºF)
Well to Well Uniformity: 0.015 to 0.025°C(32.02 to 32.04ºF)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CL-355A 6 Weeks   ¥46,350.00    Portable block calibrator, 120 Vac
 CL-355A-230 11 Weeks   ¥43,885.00    Portable block calibrator, 240 Vac
 Accessories
 CL-350A-CASE 2 Weeks   ¥2,695.00    Carrying Case
 CL701B In Stock   ¥4,610.00    Insert 5 x 1/4"
 CL702B 101 Weeks   ¥4,865.00    Insert 5 x 3/8", 5/16", 1/4", 3/16", 1/8"
 CL703B 16 Weeks   ¥4,610.00    Insert 2 x 1/4", 2 x 3/8"
 CL704B 16 Weeks   ¥5,415.00    Insert 2 x 1/4", 2 x 1/2"
 CL705B 16 Weeks   ¥5,040.00    Insert 1 x 1/4", 9/16"
 CL707B 16 Weeks   ¥5,415.00    Insert 1 x 1/4", 5/8"
 CL708B 16 Weeks   ¥5,415.00    Insert 1 x 1/4", 11/16"
 CL708B 16 Weeks   ¥5,415.00    Insert 1 x 1/4", 11/16"
 CL709B 2 Weeks   ¥5,135.00    Insert 1 x 1/4", 3/4"
 CL710B 16 Weeks   ¥2,505.00    Insert 1 x 1/4"
 CL706B 2 Weeks   ¥2,925.00    Insert undrilled
† Price are shown in RMB.

 Note: Comes with complete operator’s manual, insert removal tool and power cord.
  Ordering Example: (1) CL-355A Portable block calibrator, 120 Vac, ¥46,350.00
