RTD Simulators |

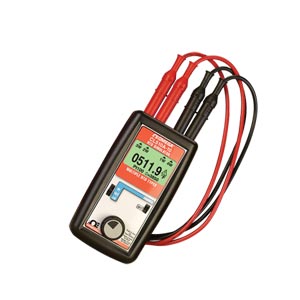

| CL510A Series |
|
 |
|
|
|
|
 |
The CL510A Series can check and
calibrate all your RTD instruments.
Take it into the shop, plant or field
without worry. It’s easy to operate
even in the dark areas of the plant
with the backlit display. Stop
carrying around a decade box
and RTD resistance tables, with the
CL510A you can calibrate directly in
temperature (°C and °F). Choose
between a single RTD type model,
CL510A-1 (Pt100, 0.00385), or a
CL510A-10 for multiple RTD types.
The CL510A-10 works with a wide
variety of RTD curves including
Platinm 100 (alpha = 3850,
3902, 3916, 3926) and 1000
(alpha = 3850, 3750) Ω, Copper
10 and 50 Ω, Nickel 100 and 120 Ω.
Easily set any value quickly to
within 0.1° with the adjustable
digital potentiometer "DIAL".
Connect directly to RTD inputs of
smart transmitters, PLCs,
controllers and multichannel
recorders and verify their displays.
SPECIFICATIONS (Unless otherwise indicated, all specifications are rated from a nominal 23°C (73°F), 70% RH)
Accuracy: ±(0.015% of Rdg + 0.05 Ω)
Temperature Drift: ±0.05 Ω/°C
Operating Temperature Range: -25 to 60°C (-10 to 140°F)
Relative Humidity Range, 10% ≤RH:
≤90%: 0 to 35°C (32 to 95°F), non-condensing
≤70%: 35 to 60°C (95 to 140°F), non-condensing
Size: 126 L x 69 W x 45 mm H (4.96 x 2.73 x 1.79")
Weight: 0.24 kg (8.4 oz) (including batteries)
Batteries: 4 "AA" alkaline 1.5V (included)
Battery Life: 50 hr
Low Battery: Low battery indication with nominal 1 hour of operation left
Protection Against Misconnection: Over-voltage protection to 60 Vdc (rated for 30 sec)
Display: High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Source
Accuracy: From 1 to 10.2 mA
External Excitation Current: ±(0.015% of rdg + 0.05 Ω) Below 1 mA of External
Excitation Current: ±(0.015% of rdg + 0.01 mV/mA excitation current + 0.05 Ω)
Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω
Allowable Excitation Current Range, Steady or Pulsed/Intermittent:
<410 Ω: 10.2 mA max
410 to 001 Ω: 1 mA max Pulsed Excitation Current
Compatibility: DC to 0.01 second pulse width
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 4 "AA" alkaline batteries, NIST certificate of calibration (no points), RTD wire kit with 2 red and 2 black leads with retractable shield banana plugs and spade lugs, and operator’s manual.
|
|
|
|
|
| |
|
