Automated Universal RTD Calibrator |
| CL514-PLUS |
|
 |
|
|
|
|
 |

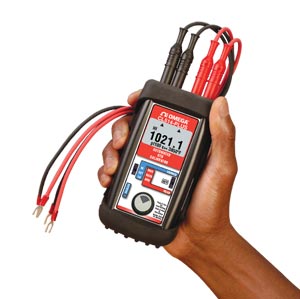

With the CL514-PLUS you can
check and calibrate all your RTD
instruments and measure RTD
sensors. Automatic indication of
connections on the display for simple
hookups. Take it without worry into
the shop, plant or field. It comes
protected with a rubber boot and
rugged, low profile switch. Easy to
operate even in the dark areas of the
plant with the backlit display.
Stop carrying around a decade box
and RTD resistance tables, you can
calibrate directly in temperature
(°C and °F). The CL514-PLUS works
with a wide variety of RTD curves
including Platinm 100 (alpha = 3850,
3902, 3926) and 1000 (alpha =
3850, 3750) Ω, Copper 10 and 50 Ω,
Nickel 100 and 120 Ω. Easily set any
value quickly to within 0.1° with the
adjustable digital potentiometer
"DIAL" plus store any three
temperatures for instant recall.
Calibrate quickly with automatic
output stepping. Choose between
2, 3, 5, 11 and 21 steps to
automatically increment the output
in 100%, 50%, 25%, 10% or 5% of
span. Select the step time to match
your system from 5, 6, 7, 8, 10, 15,
20, 25, 30 and 60 seconds.
Connect directly to RTD inputs of
smart transmitters, PLCs,
controllers and multichannel
recorders and verify their
outputs or displays.
Measure and trouble
shoot RTD sensor
connections and find
broken wires. Connect
your 2, 3 or 4 wire RTD
sensor and the
CL541-PLUS
automatically measures
the RTD in °C or °F.
SPECIFICATIONS (Unless otherwise indicated
all specifications are rated
from a nominal 23°C,
70% RH)
Accuracy: ±(0.025% of Reading + 0.05 Ω)
Temperature Drift: ±0.01% of span outside of 23°C ±10°C (73°C ±18°F)
Operating Temperature Range: -25 to 60°C (-10 to 140°F)
Relative Humidity Range: 10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH ≤70% (35 to 60°C), non-condensing
Dimensions: 143 L x 76.2 W x 40.64 mm H (5.63 x 3.00 x 1.60")
Weight: 12.1 oz (including boot and batteries)
Batteries: 4 "AA" Alkaline 1.5V (included)
Battery Life: 50 Hours
Low Battery: Low battery indication with nominal 1 hour of operation left
Protection Against Misconnection: Over-voltage protection to 60 V dc (rated for 30 seconds)
Display: High contrast graphic liquid crystal display. LED backlighting for use in low lit areas.
READ
Excitation Current: 0.5 mA nominal
Normal Mode Rejection: 50/60 Hz, 50 dB
Common Mode Rejection: 50/60 Hz, 120 dB
Source
Accuracy From 1 to 10.2 mA External Excitation Current: ±(0.025% of Reading + 0.05 Ω) Below 1 mA of External Excitation
Current: ±(0.025% of Reading + 0.025 mV/ mA Excitation Current + 0.05 Ω)
Resistance Ranges: 0.00 to 410.00, 410.1 to 2001.0 Ω Allowable Excitation Current Range:
<410 Ω: 10.2 mA max; steady or pulsed/intermittent
410 to 2001 Ω: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current
Compatibility: DC to 0.01 second pulse width
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with rubber boot, 4 “AA” alkaline batteries, NIST certificate of calibration, carrying case, RTD wire kit with 2 red and 2 black leads with retractable shield banana plugs and spade lugs and operator’s manual.
Ordering Example: (1) CL514-PLUS Automated universal RTD calibrator, ¥12,400.00
|
|
|
|
|
| |
|
