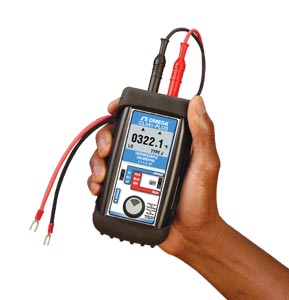

Automated Thermocouple Calibrator |
| CL541-PLUS |
|
 |
|
|
|
|
 |
With the CL541-PLUS you can
check and calibrate all your
thermocouple instruments and
measure thermocouple sensors.
Automatic indication of connections
on the display for simple hookups.
Take it without worry into the shop,
plant or field. It comes protected
with a rubber boot and rugged, low
profile switch. Easy to operate even
in the dark areas of the plant with
the backlit display. Stop carrying
around a millivolt source and
thermocouple tables, you can
calibrate directly in temperature
(°C and °F).
The CL541-PLUS
works with the T/Cs you use
including types J, K, T and E. Easily
set any value quickly to within 0.1°
with the adjustable digital
potentiometer "DIAL" plus store any
three temperatures for instant recall.
Calibrate quickly with automatic
output stepping. Choose between
2, 3, 5, 11 and 21 steps to
automatically increment the output
in 100%, 50%, 25%, 10% or 5% of
span. Select the step time to
match your system from 5, 6, 7, 8,
10, 15, 20, 25, 30 and 60 seconds.
Connect directly to the
thermocouple inputs of smart
transmitters, PLCs, controllers
and multichannel recorders and
verify their outputs or displays.
Measure and trouble shoot
thermocouple sensor connections
and find broken wires or high
resistance junctions. Connect
your sensor and the CL541-PLUS
automatically measures the
thermocouple in degrees C or F.
SPECIFICATIONS
(Unless otherwise indicated all specifications are rated from a nominal 3°C, 70% RH)
Accuracy: ±(0.008% of Reading + 0.006 mV) Cold Junction
Compensation: ±0.1°F (±0.06°C)
Millivolt Range: -13.000 to 80.000 mV Operating Temperature
Range: -25 to 60°C (-10 to 140°F)
Relative Humidity Range: 10% ≤RH ≤90% (0 to 35°C), non-condensing; 10% ≤RH ≤70% (35 to 60°C), non-condensing
Dimensions: 143 L x 76.2 W x 40.64 mm H (5.63 x 3.00 x 1.60")
Weight: 12.1 oz (including boot and batteries)
Power: 4 "AA" Alkaline 1.5V (included)
Battery Life: 50 Hours
Low Battery: Low battery indication with nominal 1 hour of operation left
Protection Against Misconnection: Over-voltage protection to 60 Vdc (rated for 30 seconds)
Display: High contrast graphic liquid crystal display. LED backlighting for use in low lit areas.
Read
Input Impedance: >10 Megohms
Open Thermocouple
Threshold: 10,000Ω nominal
Pulse: <10 microamp pulse for 300 milliseconds
Normal Mode Rejection: 50/60 Hz, 50 dB
Common Mode Rejection: 50/60 Hz, 120 dB Source
Output Impedance: < 0.3Ω
Source Current: > 20 mA (drives 80 mV into 10Ω)
Noise: ≤4 microvolts p-p for frequencies of 10 Hz or below
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with rubber boot, 1 red and 1 black leads with retractable shield banana plugs and aligator clips, 4 "AA" alkaline batteries, NIST certificate of calibration, carrying case and operator’s manual.
Ordering Example: (1) CL541-PLUS Automated thermocouple calibrator, ¥14,110.00
|
|
|
|
|
| |
|
