OMEGA SCIENTIFIC™ Calibration Simulators

CL601K

Click for larger image.

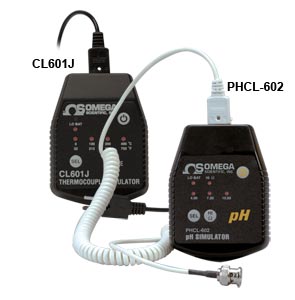

•	Model CL601 Thermocouple Simulator K (Model CL601K) J (Model CL601J) 0.61 m (2') Cable with Male SMP Connector Common Check Points in °C and °F
•	Model PHCL-602 pH Simulator Simulates Values for pH 4.00, 7.00 and 10.00 0.61 m (2') Cable with BNC Connector
•	Model CL603 Current Loop Simulator Simulates Output Ranges of 4 mA, 12mA, 20mA Overload Protection When Load > 240W Ideal for Checking Calibration as a Current Source for Indicators and Controller Setup 0.61 m (2') Cable with Spade Lugs
View related products - Industrial pH Instrumentation and Electrodes

SPECIFICATIONS:

Model CL601
Type J: 0° (32°F), 100°C (212°F), 400°C (752°F)
Type K: 0°C (32°F), 100°C (212°F), 500°C (932°F), 1000°C (1832°F)
Accuracy: ±0.5°C (±1°F)

Model PHCL-602
Accuracy: ±0.1% FS

Model CL-603
Accuracy: ±0.1mA

All Models
Battery: 9V alkaline battery included
Weight: 85g (3 oz.) without battery
Dimensions: 100H x 75W x 30D mm (3.9 x 3.0 x 1.2")

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
CL601K		Consult sales	Type K thermocouple simulator	qty.

CL601J		Consult sales	Type J thermocouple simulator	qty.

PHCL-602		Consult sales	pH simulator	qty.

CL603		Consult sales	Current loop simulator	qty.

SC-300A	2 Weeks	¥133.00	Soft carrying case	qty.

† Price are shown in RMB.

Note: All units come with 9V alkaline battery, cable, and complete operator’s manual.
