Home >> Automation Products >> Process Measurement... >> Process Controllers... >> CN4000 Series

1/16, 1/8, and 1/4 DIN Temperature/Process Controllers with Fuzzy Logic
CN4000 Series
2 year warranty CE

DIN Temperature/Process Controllers with Fuzzy Logic

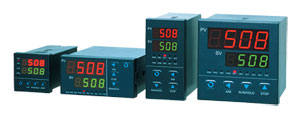

CN4000 Series:1/16, 1/8, and 1/4 DIN Temperature/Process Controllers with Fuzzy Logic
Click for larger image.

• Dual Display
• Front Panel Programmability
• Single Control Output
• Fuzzy Logic
• Autotune
• Dual 4-Digit LED Display and Indicators for Output and Alarm Status
• Single Alarm Output
• Universal Power Supply
• Isolated Analog Control Output (Selected Models)
• 10 Segments of Ramp/Soak (Selected Models)

View related products - Process Measurement and Control Instruments

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The CN4000 Series temperature/process controllers set a new standard for ease-of-use and value. Units feature dedicated input models with thermocouple and RTD inputs, and models with universal inputs for both temperature and process inputs. Standard features include autoune, fuzzy logic, fully adjustable PID or on/off single control output with one alarm. Selected thermocouple and RTD input models can show whole or tenth of degree display resolution. Output types include relay, dc pulse, or an isolated analog 0 to 20 mA output.

SPECIFICATIONS
Selectable Inputs: Thermocouple, RTD, DC voltage, DC current, resistance (dependent on model)
Display: Two 4-digit, 7 segment, LED (red PV, green SV)
Resolution: 1.0, 0.1 (dependent on model)
Sample Rate: 8 per second
Accuracy: ±0.3% FS (thermocouple and RTD dedicated models), ±0.2% FS (universal input models)
Supply Voltage: 100 to 240 Vac (-15%, +10%); 50 to 60Hz or Optional 24 Vdc
Power Consumption: 3 W (thermocouple and RTD dedicated models), 6 W (universal input models)
Operating Temperature: -10 to 60‹C (14 to140‹F)
Humidity: 0 to 90 RH%
Control Output Ratings:
    Relay: SPDT, 30 Vdc/1A, 250 Vac/1A (1⁄8 and ¼ DIN models)
    Relay: SPST, 30 Vdc/1A, 250 Vac/1A (1⁄16 DIN models)
    Proportional Current (Isolated): 0 to 20 mA DC,
    DC Pulse: 12 Vdc/30 mA
Alarm Output Ratings:
    Relay: SPDT, 30 Vdc/1A, 250 Vac/1A
    DC Pulse: 12 Vdc/30 mA
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 1/16 DIN MODELS Outputs, Inputs and Resolution
 CN4116-R1-R2 101 Weeks   ¥1,200.00    Relay/relay T/C, RTD/1.0
 CN4116-R1-R2-LV    Consult sales   Relay/relay, low voltage T/C, RTD/1.0
 CN4116-DC1-R2    Consult sales   DC pulse/relay T/C, RTD/1.0
 CN4116-DC1-DC2 101 Weeks   ¥1,265.00    DC pulse/DC pulse T/C, RTD/1.0
 CN4216-R1-R2    Consult sales   Relay/relay T/C, RTD/0.1
 CN4216-R1-R2-LV    Consult sales   Relay/relay, low voltage T/C, RTD/0.1
 CN4216-DC1-R2    Consult sales   DC pulse/relay T/C, RTD/0.1
 CN4216-DC1-DC2    Consult sales   DC pulse/DC pulse T/C, RTD/0.1
 CN4316-R1-R2    Consult sales   Relay/relay Universal/0.1
 CN4316-R1-R2-LV 101 Weeks   ¥1,340.00    Relay/relay, low voltage Universal/0.1
 CN4316-DC1-R2    Consult sales   DC pulse/relay Universal/0.1
 CN4316-DC1-DC2 101 Weeks   ¥1,265.00    DC pulse/DC pulse Universal/0.1
 CN4316-F1-R2    Consult sales   0 to 20 mA/relay Universal/0.1
 CN4416-R1-R2    Consult sales   Ramp and soak, relay/relay Universal/0.1
 CN4416-R1-R2-LV 101 Weeks   ¥1,995.00    Ramp and soak, relay/relay, low voltage Universal/0.1
 CN4416-DC1-R2    Consult sales   Ramp and soak, DC pulse/relay Universal/0.1
 CN4416-DC1-DC2    Consult sales   Ramp and soak, DC pulse/DC pulse Universal/0.1
 CN4416-F1-R2 101 Weeks   ¥1,995.00    Ramp and soak, 0 to 20 mA/relay Universal/0.1
 1/4 DIN MODELS Outputs, Inputs and Resolution
 CN414-R1-R2    Consult sales   relay/relay T/C, RTD/1.0
 CN414-R1-R2-LV 101 Weeks   ¥1,745.00    relay/relay, low voltage T/C, RTD/1.0
 CN414-DC1-R2 2 Weeks   ¥1,670.00    dc pulse/relay T/C, RTD/1.0
 CN414-DC1-DC2 101 Weeks   ¥1,670.00    dc pulse/dc pulse T/C, RTD/1.0
 CN424-R1-R2 101 Weeks   ¥1,670.00    relay/relay T/C, RTD/0.1
 CN424-R1-R2-LV 101 Weeks   ¥1,670.00    relay/relay, low voltage T/C, RTD/0.1
 CN424-DC1-R2 2 Weeks   ¥1,670.00    dc pulse/relay T/C, RTD/0.1
 CN424-DC1-DC2 101 Weeks   ¥1,670.00    dc pulse/dc pulse T/C, RTD/0.1
 CN434-R1-R2 101 Weeks   ¥1,670.00    relay/relay Universal/0.1
 CN434-R1-R2-LV 101 Weeks   ¥1,745.00    relay/relay, low voltage Universal/0.1
 CN434-DC1-R2 101 Weeks   ¥1,670.00    dc pulse/relay Universal/0.1
 CN434-DC1-DC2 101 Weeks   ¥1,670.00    dc pulse/dc pulse Universal/0.1
 CN434-F1-R2    Consult sales   0 to 20 mA/relay Universal/0.1
 CN444-R1-R2 101 Weeks   ¥2,185.00    Ramp and soak, relay/relay Universal/0.1
 CN444-R1-R2-LV 101 Weeks   ¥2,270.00    Ramp and soak, relay/relay, low voltage Universal/0.1
 CN444-DC1-R2 2 Weeks   ¥2,185.00    Ramp and soak, dc pulse/relay Universal/0.1
 CN444-DC1-DC2 101 Weeks   ¥2,185.00    Ramp and soak, dc pulse/dc pulse Universal/0.1
 CN444-F1-R2 101 Weeks   ¥2,270.00    Ramp and soak, 0 and 20 mA/relay Universal/0.1
 1/8 DIN HORIZONTAL MODELS Outputs, Inputs and Resolution
 CN418H-R1-R2 101 Weeks   ¥1,395.00    Relay/relay T/C, RTD/1.0
 CN418H-R1-R2-LV 2 Weeks   ¥1,470.00    Relay/relay, low voltage T/C, RTD/1.0
 CN418H-DC1-R2 101 Weeks   ¥1,395.00    DC pulse/relay T/C, RTD/1.0
 CN418H-DC1-DC2 101 Weeks   ¥1,395.00    DC pulse/DC pulse T/C, RTD/1.0
 CN428H-R1-R2 101 Weeks   ¥1,395.00    Relay/relay T/C, RTD/0.1
 CN428H-R1-R2-LV 101 Weeks   ¥1,470.00    Relay/relay, low voltage T/C, RTD/0.1
 CN428H-DC1-R2 2 Weeks   ¥1,395.00    DC pulse/relay T/C, RTD/0.1
 CN428H-DC1-DC2 2 Weeks   ¥1,395.00    DC pulse/DC pulse T/C, RTD/0.1
 CN438H-R1-R2    Consult sales   Relay/relay Universal/0.1
 CN438H-R1-R2-LV 101 Weeks   ¥1,470.00    Relay/relay, low voltage Universal/0.1
 CN438H-DC1-R2 2 Weeks   ¥1,395.00    DC pulse/relay Universal/0.1
 CN438H-DC1-DC2 2 Weeks   ¥1,395.00    dc pulse/dc pulse Universal/0.1
 CN438H-F1-R2 101 Weeks   ¥1,395.00    0 to 20 mA/relay Universal/0.1
 CN448H-R1-R2 2 Weeks   ¥1,985.00    Ramp and soak, relay/relay Universal/0.1
 CN448H-R1-R2-LV 101 Weeks   ¥2,060.00    Ramp and soak, relay/relay, low voltage Universal/0.1
 CN448H-DC1-R2 2 Weeks   ¥1,970.00    Ramp and soak, dc pulse/relay Universal/0.1
 CN448H-DC1-DC2 101 Weeks   ¥1,960.00    Ramp and soak, dc pulse/dc pulse Universal/0.1
 CN448H-F1-R2 2 Weeks   ¥2,060.00    Ramp and soak, 0 to 20 mA/relay Universal/0.1
 1/8 DIN VERTICAL MODELS Outputs, Inputs and Resolution
 CN418V-R1-R2 101 Weeks   ¥1,395.00    Relay/relay T/C, RTD/1.0
 CN418V-R1-R2-LV 101 Weeks   ¥1,470.00    Relay/relay, low voltage T/C, RTD/1.0
 CN418V-DC1-R2 2 Weeks   ¥1,395.00    DC pulse/relay T/C, RTD/1.0
 CN418V-DC1-DC2 101 Weeks   ¥1,395.00    DC pulse/DC pulse T/C, RTD/1.0
 CN428V-R1-R2 2 Weeks   ¥1,395.00    Relay/relay T/C, RTD/0.1
 CN428V-R1-R2-LV 101 Weeks   ¥1,470.00    Relay/relay, low voltage T/C, RTD/0.1
 CN428V-DC1-R2 101 Weeks   ¥1,395.00    DC pulse/relay T/C, RTD/0.1
 CN428V-DC1-DC2 101 Weeks   ¥1,395.00    DC pulse/DC pulse T/C, RTD/0.1
 CN438V-R1-R2 101 Weeks   ¥1,395.00    Relay/relay Universal/0.1
 CN438V-R1-R2-LV 101 Weeks   ¥1,470.00    Relay/relay, low voltage T/C, RTD/0.1
 CN438V-DC1-R2 2 Weeks   ¥1,395.00    DC pulse/relay Universal/0.1
 CN438V-DC1-DC2 101 Weeks   ¥1,395.00    DC pulse/dc pulse Universal/0.1
 CN438V-F1-R2 2 Weeks   ¥1,395.00    0 to 20 mA/relay Universal/0.1
 CN448V-R1-R2 101 Weeks   ¥1,985.00    Ramp and soak, relay/relay Universal/0.1
 CN448V-R1-R2-LV 101 Weeks   ¥2,060.00    Ramp and soak, relay/relay, low voltage Universal/0.1
 CN448V-DC1-R2 101 Weeks   ¥1,970.00    Ramp and soak, dc pulse/relay Universal/0.1
 CN448V-DC1-DC2 101 Weeks   ¥1,960.00    Ramp and soak, dc pulse/dc pulse Universal/0.1
 CN448V-F1-R2 101 Weeks   ¥2,060.00    Ramp and soak, 0 to 20 mA/relay Universal/0.1
† Price are shown in RMB.

 Ordering Example: (1) CN428H-DC1-R2 1/8 DIN horizontal universal input controller, DC pulse/relay outputs, low voltage, $79, ¥1,395.00

 Related Links - Manual
 Product Manual
   Download  CN4300 and CN4400 Series - Programmable Temperature Controllers
   Download  CN4100 and CN4200 Series - Temperature Controllers
