1/16 DIN High/Low Limit Controller |
| CN63500 Series |
|
 |
|
|
|
|
|
|
|
| • |
Dual 4-Digit LED Display
|
| • |
Thermocouple or RTD Sensor Input
|
| • |
Remote Reset Input
|
| • |
Main Limit Output: 5 A Relay, Selectable for High or Low Trip Activiation
|
| • |
5 A Relay Alarms (Optional)
|
| • |
Parameters Security Via Programmable Lockouts
|
| • |
FM, UL, and cUL Approved
|
View related products - Controllers, Meters and Switching Devices
|
| |
|
|
|
 |

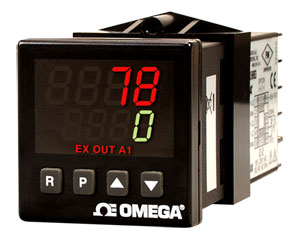

The CN63500 Series are temperature limit controllers,
intended to provide an independent shutdown for
thermal processes. The CN63500 accepts signals
from a variety of temperature sensors (thermocouple or
RTD elements),and its comprehensive programming
allows it to meet a wide variety of application
requirements. Dual 4-digit displays allow viewing of the
process temperature and limit setpoint simultaneously.
Front panel indicators inform the operator of the
process and output status. The main limit output and
alarm outputs are field-replaceable. The limit output is
selectable for high or low trip activation. If the process
temperature goes above the limit setpoint for a high
trip, or below the limit setpoint for a low trip, the limit
relay will de-energize to initiate a process shutdown.
The limit output cannot be reset until the process
temperature returns to the proper operating range;
manual reset is required (local or remote). Sensor
failure will initiate a process shutdown. Relay alarm(s)
can be configured to activate according to a variety of
actions (absolute high or low, deviation high or low
and band in or out) with adjustable hysteresis. A
standby feature suppresses the alarm during power-up
unit the process stabilizes outside the alarm region.
The unit is constructed of lightweight, high-impact
plastic case with a tinted front panel. the front panel
meets NEMA 4X (IP65) specifications when properly
installed. Multiple units can be stacked horizontally or
vertically. Modern surface-mount technology,
extensive testing, plush high-immunity to noise
interference makes the CN63500 extremely reliable in
industrial environments.
Thermocouple
Type |
Display
Range |
Wire Color |
| ANSI |
BS1843 |
| T |
-200 to 400°C
-328 to 752°F |
(+) Blue
(-) Red |
(+) White
(-) Blue |
| E |
-200 to 750°C
-328 to 1382°F |
(+) Violet
(-) Red |
(+) Brown
(-) Blue |
| J |
-200 to 760°C
-328 to1400°F |
(+) White
(-) Red |
(+) Yellow
(-) Blue |
| K |
-200 to 1250°C
-328 to 2282°F |
(+) Yellow
(-) Red |
(+) Brown
(-) Blue |
| R |
0 to 1768°C
32 to 3214°F |
(+) Black
(-) Red |
(+) White
(-) Blue |
| S |
0 to 1768°C
32 to 3214°F |
(+) Black
(-) Red |
(+) White
(-) Blue |
| B |
149 to 1820°C
300 to 3308°F |
(+)Grey
(-)Red |
No standard |
| N |
-200 to 1300°C
-328 to 2372°F |
(+) Orange
(-) Red |
(+) Orange
(-) Blue |
| mV |
-5.00 to 56.00mV |
No standard |
No standard |
|
| |
| RTD Type |
Range |
| 385 |
-200 to 600°C (-328 to 1100°F) |
| 392 |
-200 to 600°C (-328 to 1100°F) |
| Ω |
2.0 to 320.0Ω |
|
SPECIFICATIONS
Display: 2-line by 4-digit LED
Upper (Main) Display: 10.2 mm (0.4") H red LED
Lower (Secondary) Display: 7.6 mm (0.3") H green LED
Power:
Line Voltage Models: 85 to 250 Vac, 50/60 Hz, 8 VA
Low-Voltage Models:
DC Power: 18 to 36 Vdc,7W
AC Power: 24 Vac ±10%, 50/60 Hz, 9 VA
Memory: Non-volatile E2PROM retains all programmable parameters and values
Environmental Conditions
Operating Range: FM rated @ 0 to 65°C, UL rated @ 0 to 55°C
Storage Range: -40 to 80°C (-40 to 176°F)
Operating and Storage Humidity: 85% max relative humidity (non-condensing) from 0°C to 65°C (32 x 149°F)
Altitude: Up to 2000 m
Isolation Breakdown Ratings
AC Line With Respect to All Inputs and Outputs: 2300 V for 1 minute (250 V working)
Relay Contacts to All Other Inputs and Outputs: 2300 Vac
DC Power With Respect to Sensor Input: 50 V working (500 V for 1 minute)
Connection: Wire clamping screw terminals
Weight: 0.17 kg (0.38 lb)
Input Specifications
Sensor Input
Sample Period: 100 ms
Step Response Time: Less than 300 ms typical, 400 ms max (to within 99% of final value)
Normal Mode Rejection: >40 dB @ 50/60 Hz
Common Mode Rejection: >120 dB, DC to 60 Hz
Overvoltage Protection: Input overload 120 Vac for 15 s max
Failed Sensor Response:
Main Output: Sensor failure will initiate a process shutdown
Display: "OPEN"
Alarms: Upscale
Indication Accuracy: ±(0.3% of span +1°C) @ 23°C ambient after 20 minute warm-up (includes NIST conformity, cold-junction effect, A/D conversion errors and linearization conformity
Span Drift (Maximum): 130 PPM/°C
Rtd Input: 2- or 3-wire, 100 Ù platinum, alpha = 0.00385 (DIN43760), alpha = 0.0039162
Excitation: 150 A typical
Lead Resistance: 15 Ω max per input lead
Remote Resent Input: Internally pulled up to 5 Vdc 1 mΩ
VIL: 0.85 V max
VIH: 3.65 V min
VIN Max: 5.25 Vdc
IOFF:1 µA max
Output Specifications
Limit and Alarm Output Relays
Contact Rating: 5 A @ 250 Vac or 30 Vdc (resistive load) 1/10 HP @ 120 Vac (inductive load)
Life Expectancy: 100,000 cycles at max load rating (decreasing load increases life expectancy)
Limit Output:
CN63500-R1-AL1: Form "C" relay
CN63500-R1-AL2: Form "A" relay
Selectable for high or low trip activation, if the process temperature goes above the limit setpoint for a high trip, or below the limit setpoint for a low trip, the limit relay will deenergize to initiate a process shutdown; the limit output cannot be reset until the process temperature returns to the proper operating range; manual reset is required (local or remote)
AlarmOutputs: 1 or 2 form "A" relays
Modes: Absolute high-acting, absolute low-acting, deviation high-acting, deviation low-acting, inside band-acting, outside band-acting
Reset Action: programmable, automatic or latched; latched alarms can be reset regardless of limit exceed condition
Standby Mode: Programmable, enable or disable
Hysteresis: Programmable
Thermocouple Inputs
Types: T, E, J, K, R, S, B, N, linear mV, software selectable
Input Impedance: 20 MΩ, all types
Lead Resistance Effect: 0.25 µV/Ω
Cold-Junction Compensation: <±1°C typical, (±1.5°C max), error over 0 to 65°C (32 to 149°F) max ambient temperature range; defeated for linear mV indication mode
Resolution: 1° for all types, or 0.1° for T, E, J, K, and N only
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
|
|
|
|
|
| |
|
