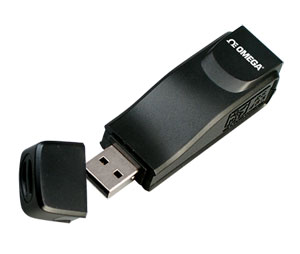

The CN7-485-USB-1 mini-node
communication signal converter is
a low cost device that converts half
duplex RS-485 serial
communications signals into a
signal that can be read by any
computer with a USB port. The
integral USB connector and RJ-45
connector reduces set up time by
eliminating extra wiring. The
CN-485-USB-1 is powered via the
USB connection which eliminates
the need for an external power
source. The compact size is great
for field installation, control panels,
and lab testing.
SPECIFICATIONS Power Requirements: No external power required Power Consumption: 0.4 W Isolated Voltage: 3000 Vdc Input Impedance: 96 kΩ USB Connector: B-Type (female) RS-485 Connector: RJ-45 Baud Rate: 75, 150, 300, 600, 1200, 2400, 4800, 9600, 19,200, 38,400, 57,600, and 115,200 bps Compatibility: Full compliance with USB V.2.0 specification
† Price are shown in RMB.
Note: Comes with driver software, complete operator's manual and cable.
