Home >> Heaters Products >> Controllers, Meters... >> Limit Controllers >> CN700 Series

Limit Controller with Audible Buzzer
CN700 Series
1 year warranty CE

Limit Controller
CN700 Series:Limit Controller with Audible Buzzer

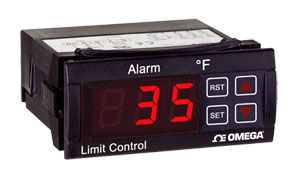

Click for larger image.

• Bright Red 3-Digit LED Display
• J, K or S Thermocouple Inputs
• High or Low Limit
• 15 A Relay Output
• Front Key Reset Button or Remote Reset
• Internal Audible Buzzer

View related products - Controllers, Meters and Switching Devices

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The CN700 Series thermocouple FM approved high limit controllers provide audible alarm status along with a robust 15 amp relay output. Unit allows the user to easily select automatic or manual reset along with 10 other parameters. The CN700 series has a built in reset button on the front panel or can accept an external reset. The ease of programming and low price make the CN700 series the best value limit control on the market.

SPECIFICATIONS
Temperature Range:
    T/C Type J: 0 to 700°C (32 to 999°F)
    T/C Type K or S: 0 to 999°C (32 to 999°F)
Input: Type J, K or S thermocouple
Output: 15 A SPDT relay @ 250 Vac resistive
Horsepower Rating (HP): ¾ HP
Control Type: ON/OFF manual/ automatic reset
Power Requirements: 110 Vac, 230 Vac, 12 or 24 Vac/Vdc (depending on model)
Power Consumption: 4 VA
Accuracy: ±1% FS
Display: 3-digit, red, 12.7 mm (½") digits, plus sign
Display Update Rate: 16 seconds
Resolution: 1°
Memory Backup: Nonvolatile memory
Ambient Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -20 to 80°C (-4 to 176°F)
Weight: 65 g (2.3 oz)
Panel Cutout: 71 x 29 mm (2.80 x 1.14")
Front Panel Rating: IP64
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CN701 2 Weeks   ¥1,345.00    Limit controller, 110 Vac, °F
 CN702 2 Weeks   ¥1,345.00    Limit controller, 110 Vac, °C
 CN703 In Stock   ¥1,345.00    Limit controller, 230 Vac, °F
 CN704 In Stock   ¥1,345.00    Limit controller, 230 Vac, °C
 CN705 101 Weeks   ¥1,345.00    Limit controller, 12 Vac/Vdc, °F
 CN706 2 Weeks   ¥1,345.00    Limit controller, 12 Vac/Vdc, °C
 CN707 2 Weeks   ¥1,345.00    Limit controller, 24 Vac/Vdc, °F
 CN708 2 Weeks   ¥1,345.00    Limit controller, 24 Vac/Vdc, °C
 Accessories
 CNQUENCHARC 2 Weeks   ¥394.00    Noise Suppression RC snubber (2 leads), 110 to 230 Vac
† Price are shown in RMB.

 Note: Comes with operator’s manual.
  Ordering Example: (1) CN701 Limit controller, 110V, °F with audible buzzer, ¥1,345.00,  plus (1) CN705 Limit controller, 12 Vac/Vdc, °F with audible buzzer, ¥1,345.00, ¥1,345.00 + 1,345.00 = $2,690.00


Keywords:Limit Controller with Audible Buzzer, overtemp, temperature controller, temperature controllers
