1/4 DIN Temperature Controllers
CN730 Series
1 year warranty CE

1/4 DIN Temperature Controllers

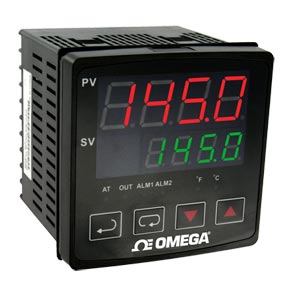

CN730 Series:1/4 DIN Temperature Controllers
Click for larger image.

• Dual Display
• Autotune
• RS-485 Communications
• Free Software
• Alarm Functions
• Thermocouple/ RTD Inputs
• Output Status

View related products - Controllers, Meters and Switching Devices

Click to scroll below to order See Specs PDF Manuals Software Related Items View a printer friendly page

Input Types Range
Pt100Ω RTD 0 to 100°C (32 to 212°F)
-20 to 500°C (-4 to 932°F)
-200 to 600°C (-328 to 1112°F)
B Thermocouple100 to 1800°C (212 to 3272°F)
S Thermocouple 0 to 1700°C (32 to 3092°F)
R Thermocouple 0 to 1700°C (32 to 3092°F)
N Thermocouple -200 to 1300°C (-328 to 2372°F)
E Thermocouple 0 to 600°C (32 to 1112°F)
T Thermocouple -20 to 400°C (-4 to 752°F)
-200 to 400°C (-328 to 752°F)
J Thermocouple -20 to 400°C (-4 to 752°F)
-100 to 850°C (-148 to 1562°F)
K Thermocouple -200 to 1300°C (-328 to 2372°F)
-200 to 500°C (-328 to 932°F)
L Thermocouple -200 to 500°C (-328 to 932°F)
U Thermocouple -200 to 800°C (-328 to 1472°F)
The CN730 Series ¼ DIN temperature controllers offer easy-to-use programming menus designed for quick installation. Control functions include ON/OFF, PID, auto-tuning or manual tuning. The CN730 Series is available with relay, dc pulse or current output with two additional alarm outputs. The alarm outputs can be configured from 12 different preprogrammed settings. The CN730 Series accepts a variety of thermocouple and RTD inputs. Process value and set-point value are simultaneously displayed with the process value in red and setpoint in green.

SPECIFICATIONS
Inputs: Thermocouple or RTD, see chart
Display: Two 4-digit, 7-segment, LEDs
Resolution: 1 degree
PV: Red, 19 mm (0.75") H
SV: Green, 12.7 mm (0.5") H
Accuracy: ±0.25% span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, 50/60 Hz
Power Consumption: 5 VA max
Operating Temperature: 0 to 50°C (32 to 122°F)
Memory Backup: Nonvolatile memory
Control Output Ratings:
Relay: SPST, 5A @ Vac resistive
Voltage Pulse: 14V, 10 to -20% (max 40 mA)
Current: 4 to 20 mA
Communication: RS-485 MODBUSR communication protocol
Panel Cutout: ¼DIN, 92 mm square (3.622 square")
Dimensions: 96 x 96 x 15.8 mm bezel (3.78 x 3.78 x 0.625")
Panel Depth: 79.2 mm (3.125")
Weight: 425 g (15 oz)
Front Panel Rating: IP66
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CN732 2 Weeks   ¥1,445.00    DC pulse output, with RS-485 communications*
 CN733 2 Weeks   ¥1,525.00    5 AMP Relay output, with RS-485 communications*
 CN735 2 Weeks   ¥1,525.00    4 to 20 mA output, with RS-485 communications*
 Accessories
 CNQUENCHARC 2 Weeks   ¥410.00    Noise Suppression RC snubber (2 leads), 110 to 230 Vac
 CN7-485-USB-1    Consult sales   RS-485 to USB Mini-Node Converter
† Price are shown in RMB.

 Note: Comes with operator’s manual.
* Free CN7-A software download
  Ordering Example: (1) CN733 Single output controller, mechanical relay, RS-485 communications, ¥1,525.00
