Temperature/Process Limit Controllers 1/16 Din |
| CN7400 Series |
|
 |
|
|
|
|
 |

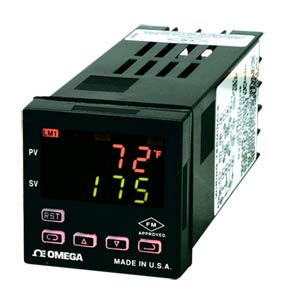

The CN7400 Series temperature/process
FM-approved limit controllers set a new
standard in 1/16 DIN limit controls. They
have universal inputs (10 thermocouple
and 4 RTD types, voltage, and
current). Standard features include
remote reset capability. Outputs
include normally open (form "A") and
normally closed (form "B") relays. Form
"A" and form "B" relays can be set up
for each setpoint output and logically
linked to emulate a form "C" output.
| Input Types | Range |
|---|
| K Thermocouple | -200 to 2500°F (-129 to 1371°C) |
| J Thermocouple | -100 to 1600°F (-73 to 871°C) |
| T Thermocouple | -350 to 750°F (-212 to 398°C) |
| E Thermocouple | -100 to 1800°F (-73 to 982°C) |
| N Thermocouple | -100 to 2372°F (-73 to 1300°C) |
| R Thermocouple | 0 to 3200°F (-17 to 1760°C) |
| S Thermocouple | 0 to 3200°F (-17 to 1760°C) |
| B Thermocouple | 75 to 3308°F (24 to 1820°C) |
| L (J DIN) Thermocouple | -100 to 1600°F (-73 to 871°C) |
| C Thermocouple | 0 to 4208°F (-17 to 2320°C) |
| Pt100 RTD (0.00385) | -200 to 875°C (-328 to 1607°F) |
| Pt100 RTD (0.00392) | -200 to 875°C (-328 to 1607°F) |
| RTD, 120 Ω Nickel (0.00628) | -80 to 320°C (-112 to 608°F) |
| RTD, Pt1000 (0.00385) | -200 to 875°C (-328 to 1607°F) |
| 0 to 20 mA*, 4 to 20 mA* | -1999 to 9999 |
0 to 10Vdc*, -10 to 10 Vdc*,
-10 to 10 mVdc* | -1999 to 9999 |
SPECIFICATIONS
Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current Display: Two 4-digit, 7-segment, 7.62 mm (0.3") high LEDs
Accuracy: ±0.25% of span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20%
Power Consumption: 5 VA max
Operating Temperature: -10 to 55°C (14 to 131°F)
Memory Backup: Non-volatile memory
Relay Control Output Ratings:
Resistive: SPST, 3 A @ 240 Vac
Inductive: 1.5 A @ 240 Vac
Weight: 227 g (8 oz)
Panel Cut-Out: 45 +0.6 mm square (1.77 +0.02" square)
Maximum Panel Thickness: 6.35 mm (0.25")
Panel Depth: 133 mm (5.24")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
Ordering Example: (1) CN7434-PV1 Dual output controller, N.O. relay/N.C. relay, 0 to 20 mA isolated retransmission output, ¥4,205.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Model
|
| |
Select
0 for Single output N.O. relay
4 for Dual output N.O. relay N.C. relay
|
(2)
|
Options
|
| |
Select
-PV1 for 0 to 20 mA isolated retransmission output
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
