1/32 DIN Ramp/Soak Controllers |
| CN74000 Series |
|
 |
|
|
|
|
 |

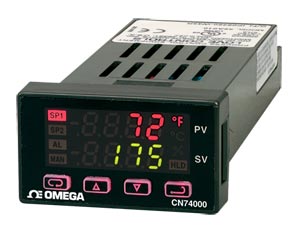

The CN74000 Series controllers set a new standard in
1/32 DIN power, flexibility, and value. Despite their small
size, these controllers are loaded with features,
including multiple universal inputs, fuzzy logic,
autotune, auto/manual capability, and 16-segment ramp
and soak with adjustable time base. RS485 serial
communication is optional.
SPECIFICATIONS
Selectable Inputs: Thermocouple, RTD, DC voltage or DC current
Display: Two 4-digit, 7-segment, 6.35 mm H (0.25") LEDs
Accuracy: ±0.25% of span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz
Single Phase: 132 to 240 Vdc, nominal, 10 to 20%
Power Consumption: 5 VA max
Operating Temperature: -10 to 55°C (14 to 131°F)
Memory Backup: Non-volatile memory, no batteries required
Control Output Ratings:
Relay: SPST, 3 A @ 240 Vac resistive;
1.5 A @ 240 Vac inductive;
Pilot Duty Rating: 250 VA, 2 A @ 120 Vac or 1 A @ 240 Vac
Switched Voltage (Non-Isolated): 5 Vdc @ 20 mA
Weight: 114 g (4 oz)
Front-Panel Rating: NEMA 4X (IP66)
Panel Cut-Out: 45 x 22 mm (1.772 x 0.874")
Maximum Panel Thickness: 6.35 mm (0.25")
Panel Depth: 111.60 mm (4.395")
| Input Types | Range |
|---|
| K Thermocouple | -200 to 2500°F (-129 to 1371°C) |
|---|
| J Thermocouple | -100 to 1600°F (-73 to 871°C) |
|---|
| T Thermocouple | -350 to 750°F (-212 to 398°C) |
|---|
| E Thermocouple | -100 to 1800°F (-73 to 982°C) |
|---|
| N Thermocouple | -100 to 2372°F (-73 to 1300°C) |
|---|
| R Thermocouple | 0 to 3200°F (-17 to 1760°C) |
|---|
| S Thermocouple | 0 to 3200°F (-17 to 1760°C) |
|---|
| B Thermocouple | 75 to 3308°F (24 to 1820°C) |
|---|
| L (J DIN) Thermocouple | -100 to 1600°F (-73 to 871°C) |
|---|
| C Thermocouple | 0 to 4208°F (-17 to 2320°C) |
|---|
| Pt100 RTD (0.00385) | -200 to 875°C (-328 to 1607°F) |
|---|
| Pt100 RTD (0.00392) | -200 to 875°C (-328 to 1607°F) |
|---|
| RTD, 120 Ω Nickel (0.00628) | -80 to 320°C (-112 to 608°F) |
|---|
| RTD, Pt1000 (0.00385) | -200 to 875°C (-328 to 1607°F) |
|---|
| 0 to 20 mA*, 4 to 20 mA* | -1999 to 9999 |
|---|
0 to 10Vdc*, -10 to 10 Vdc*,
-10 to 10 mVdc* | -1999 to 9999 |
|---|
Note: All thermocouple and RTD inputs can be set for 0.1° display.
If temperature goes above 999.9° or less than -199.9° the display
will return to whole degree resolution.
* Process Input Types: The 0 to 20 mAdc, 4 to 20 mAdc, 0 to 10 Vdc,
and 2 to 10 Vdc, inputs are fully scalable from a minimum of
100 counts span placed anywhere within the within the range of
-1999 to 9999. Decimal point position is adjustable from the zero place
(9999), tenths (999.9), hundredths (99.99), or thousandths (9.999). |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator's manual.
Ordering Example: (1) CN74133 Dual output controller, two mechanical relays, one alarm, ¥3,805.00
|
|
|
|
|
| |
|
