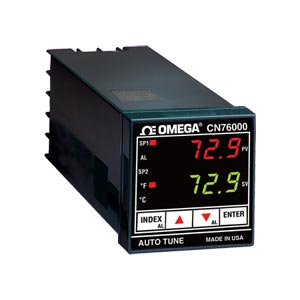

1/16 DIN Autotune Controller |
| CN76000 Series |
|
 |
|
|
|
|
|
|
|
| • |
Dual 4-Digit Display
|
| • |
Adaptive Tuning
|
| • |
Autotune PID, PID, or On-Off Control
|
| • |
Thermocouple Input with 1° or 0.1° Resolution
|
| • |
RTD Input with 1° or 0.1° Resolution
|
| • |
Scalable Voltage and Current Inputs
|
| • |
Displays in °F, °C, or Engineering Units
|
| • |
Password Protection
|
| • |
Front-Panel Programming
|
| • |
Relay, DC Pulse, AC SSR, Voltage, or Current Output(s) Optional Features
|
| • |
Analog Process or RS485 Digital Output
|
| • |
Tracking/Non-Tracking Alarms Additional Features
|
| • |
Loop Break Protection
|
| • |
Min/Max Indication
|
| • |
Auto/Manual Operation
|
| • |
Percent Output Indication
|
| • |
Single-Segment Ramp and Soak
|
View related products - Temperature and Process Controllers and Power Switching Devices
|
| |
|
|
|
 |
The Newest PLATINUM Series Controller CNPT is Available Now!
The CN76000 1/16 DIN controllers provide economical
control for a wide variety of processes, including
heating, cooling, and heat/cool. When used with the
proper transmitters, these devices can also control
pressure, flow, humidity, motion, or pH. The front
panel is NEMA 2, 3R, and 12 rated for waterproof
protection and is corrosion resistant.
The sophisticated design of the CN76000 incorporates
the latest microprocessor and surface mount
technology, compressing an unprecedented number of
standard features into a compact 1/16 DIN package. The
user can program control functions from the front
panel; input types are DIP switch selectable. Multiple
tuning modes allow the user to select from 3 standard
tuning presets, manual tuning, or autotuning.
Standard features include self-diagnosis with fault
indication. Non-volatile memory retains all process
parameters when power is off, without battery backup.
Settings for the optional alarm are configurable. The
alarm action may be defeated on startup, or until the
process value exceeds the alarm setpoint. The power
interrupt feature will reset on power-up if the alarm
condition no longer exists.
Other standard features include min/max storage and
display, auto/manual control, percent output indication,
ramp and soak operation, 4 user-selectable security
levels with password protection, and jumper-selected
5 Vdc pulse output to drive external solid state relays.
Optional features include RS485 communications,
process recorder output.
Note: CE not available with -485 commmunications option
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each unit supplied with mounting bracket and complete operator's manual.
*These outputs are logic jumper selectable between relay and DC pulse, or between DC pulse and AC SSR.
Ordering Example: (1) CN76133 CN76000 controller with dual relay/DC pulse outputs, alarm, ¥9,780.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Alarm
|
| |
Select
0 for Standard unit
1 for Alarm unit
|
(2)
|
Output
|
| |
Select
30 for Relay/DC Pulse
20 for DC pulse/AC SSR
50 for 0 to 20 mA
60 for 0 to 10 Vdc
33 for Dual Relay/DC pulse outputs
22 for Dual DC pulse/AC SSR
53 for Output 1 0 to 20 mA and Output 2 Relay/pulse
63 for Output 1 0 to 10 Vdc and Output 2 Relay/DC pulse
|
(3)
|
Additional Options
|
| |
Select
Nothing(leave field blank) for None
-PV for Scalable recorder and output 0 to 10 Vdc
-485A for RS485 communications
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
Related Links -
Manual, Related Products
|
|
|
|
Product Manual
|
|
Download
CN76000 Series 1/16 DIN Controller
|
|
Download
CN76000 - Protocol for RS-485 Communications Option (-485)
|
|
