  Discontinued - 1/4 DIN, PID, On/Off, or Limit Controllers
CN8100 Series
2 year warranty CE OmegaCare

Limit Controller
CN8100 Series:  Discontinued - 1/4 DIN, PID, On/Off, or Limit Controllers

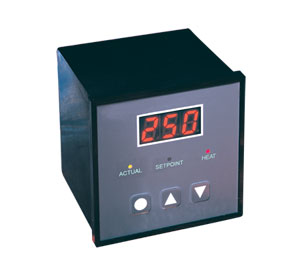

Click for larger image.

• This product is no longer available. For a possible alternate, please see CNI-AL

• Large, Easy-to-Read LED Display, Selectable for Either Setpoint or Process Temperature
• Type J or K Thermocouple Input For PID Controllers
• Type J Thermocouple Input For ON-OFF or Limit Controllers
• ON-OFF and PID Contollers Can Be Ordered with One or Two Outputs. Output One: 5 Amp Relay or 2 Aac SSR. Output Two: 5 Amp Relay or 1 Aac SSR
• Limit Controllers have One 5 Amp Relay and Are FM Approved
• Adjustable Output Hysteresis to Prevent Rapid Cycling Around Setpoint Temperature
• Adjustable Deviation Alarm Flashes When Measured Temperature Exceeds or Falls Below Setpoint Temperature
• NEMA-4X Front Bezel, Splash-Proof and Resistant to Dust
• Discrete Status Indicators Illuminate When Temperature Display, Setpoint Display or Heat/Cool Output Is Active
• UL Recognized (C), (US)

View related products - Temperature and Process Controllers and Power Switching Devices

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

This product has been discontinued


The CN8100 Series may be ordered as either a PID or On/Off controller or as a Limit Safety Device. The ¼ DIN models are low cost and ideal for OEM or replacement applications. They are microprocessor-based and accurate to ±0.3% FS.

As a separate safety feature to your control application, the CN8121-R1 high limit safety device provides reliable high/low temperature limit shut-off control for most machine and process control applications including environmental chambers, furnaces, ovens and packaging machinery. As a high limit device, these controllers have a normally energized SPDT latching output relay which becomes de-energized whenever the process variable (PV) exceeds a selected setpoint value. Reset of the latching output relay is done from a reset pushbutton on the front panel of the controller.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CN8101-R1    Consult sales   1/4 DIN PID controller, J and K T/C input with relay output and 85 to 250 Vac power
 CN8101-T1    Consult sales   1/4 DIN PID controller, J and K T/C input with ac SSR output and 85 to 250 Vac power
 CN8102-R1-R2    Consult sales   1/4 DIN PID controller, J and K T/C input with dual relay outputs and 85 to 250 Vac power
 CN8102-R1-T2    Consult sales   1/4 DIN PID controller, J and K T/C input with one relay, one ac SSR output and 85 to 250 Vac power
 CN8102-T1-T2    Consult sales   1/4 DIN PID controller, J and K T/C input with dual ac SSR outputs and 85 to 250 Vac power
 CN8111-R1    Consult sales   1/4 DIN On/Off controller, J T/C input with one relay output and 85 to 250 Vac power
 CN8111-T1    Consult sales   1/4 DIN On/Off controller, J T/C input with one ac SSR output and 85 to 250 Vac power
 CN8112-R1-R2    Consult sales   1/4 DIN On/Off controller, J T/C input with dual relay outputs and 85 to 250 Vac power
 CN8121-R1    Consult sales   1/4 DIN FM approved hi limit controller, J T/C input with one 5 Amp relay outputs and 85 to 250 Vac power
† Price are shown in RMB.
