Universal Temperature/Process Controllers

CN8541TC-R1

Thermocouple Controller

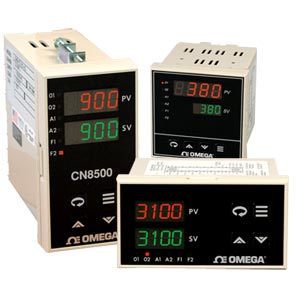

CN8541TC-R1:Universal Temperature/Process Controllers

Click for larger image.

•	NEMA 4X (IP66) Front Panel Standard
•	Universal Power Supply
•	User-Selectable Ramp to Setpoint
•	Smooth Auto/Manual Operation
•	Optional RS232 or RS485 Communications
•	Autotuning Heat or Cool
•	Thermocouple, RTD, Voltage, or Current Input
•	Plug-In Outputs Modules (Field Installable)
•	Dual Outputs and Alarms
•	Optional Heater Break Alarm, Remote Setpoint, Transducer Power Supply, and Recorder Output
View related products - Temperature and Process Controllers and Power Switching Devices

The CN8500 Series temperature controller is versatile and user-friendly. The operator needs to review only those parameters relevant to the particular application. A dual digital display offers optimal process information at a glance. The dedicated upper display shows the process temperature, while the lower display displays setpoint and setup parameters. Individual LEDs identify the status outputs, alarms, digital communications, and special options. The CN8500 Series features a NEMA 4X front panel and a universal power supply that accepts 103 to 253 Vac and 103 to 330 Vdc. Control algorithms available are P, PI, PD, PID, and on/off. The autotune feature automatically sets proportional band, rate, and reset before the process reaches setpoint. These parameters provide quick stabilization of both the heating and cooling process without overshoot, hunting, or cycling. The standard dual control outputs can be configured in a variety of control and alarm applications such as heat, heat/cool, heat/alarm, cool, or cool/alarm. The ramp-to-setpoint feature allows the user to define the rate of rise to reach the setpoint, thus minimizing thermal shock to the load during start-up.

SPECIFICATIONS

Input Code	Type	Range	Resolution
TC	J Iron-constantan	-18 to 760°C	1°C
		0 to 1400°F	1°F
	K CHROMEGA™-ALOMEGA	-18 to 1349°C	1°C
		0 to 2460°F	1°F
	T Copper-constantan	-129 to 316°C	1°C
		-200 to 600°F	1°F
	N OMEGALLOY™	-18 to 1299°C	1°C
		0 to 2370°F	1°F
	R Pt/13% Rh-Pt	-18 to 1299°C	1°C
		0 to 3200°F	1°F
	S Pt/10% Rh-Pt	-18 to 1299°C	1°C
		0 to 3200°F	1°F
RTD	RTD 3-wire, 100 Ω Pt	-200 to 850°C	1°C
		-328 to 1562°F	1°F
	RTD 3-wire, 100 Ω Pt	-128.8 to 232.2°C	0.1°C
		-199.0 to 450.0°F	0.1°F
V5	1 to 5 V	Scalable (-1999 to 9999)	Selectable
	0 to 5 V
V10	2 to 10 V	Scalable (-1999 to 9999)	Selectable
	0 to 10 V
MV	10 to 50 mV	Scalable (-1999 to 9999)	Selectable
	0 to 50 mV
MA	4 to 29 mA	Scalable (-1999 to 9999)	Selectable
	0 to 20 mA

Performance
Accuracy: ±0.2% FS, ±1 digit
Setpoint Resolution: 1 count/0.1 count
Repeatability: ±1.0 count
Temperature Stability: 5 µV/°C max; 3 ìV/°C typical
Thermocouple Cold-Junction Tracking: 0.05°C/°C ambient
Common Mode Rejection: >100 dBA
Series Mode Rejection: >70 dBA
Process Sampling: 10 Hz (100 ms)

Inputs
Thermocouple Lead Resistance: 100 Ω max for rated accuracy
Response Time: 0.1, 1.0 or 10 s
Decimal Position: Selectable

Outputs
Output #1: Reverse acting (heating)
Output #2: Direct acting (cooling)
Mechanical Relay: Rated 5 A @ 120 Vac, 3 A @ 240 Vac
Current: 4 to 20 mA, 500 Ω max
Voltage: 20 Vdc pulse, 1 kΩ min load
Triac: Solid state relay, 120/240 Vac, zero voltage switched rated 1 A continuous, 10 A surge @ 25°C (77°F)
Alarms: Optically isolated triac rated 1 A, 120/240 Vac @ 25°C (77°F)

Control Characteristics
Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range
Alarms: Adjustable for high/low, process or deviation
Rate: 0 to 900 s
Reset: 0 to 3600 s
Cycle Time: 0.2 to 120 s
Gain: 0 to 400
Gain Ratio: 0 to 2.0 (in 0.1 increments)
On/Off Deadband: 1 to 100 counts
Spread (Output 2): 0 to 100 counts (above setpoint)
Damping: Adjustable (low, normal or high)
Ramp to Setpoint: 1 to 100 minutes
Autotune: Operator-initiated from front panel
Manual Control: Operator-initiated from front panel

General
Power: 115 to 230 Vac ±10%, 50/60 Hz; 115 to 300 Vdc ±10% (auto-polarity)
Display: Dual LED, 4-digit process display, green menu/parameter display; 9.2 mm (0.37") high for 1/8 DIN models; 14 mm (0.55") process display for 1/4 DIN units
Power Consumption: Less than 6 VA (instrument) @ 120 Vac
Weight (1/8 DIN): 0.34 kg (12 oz)
Weight (1/4 DIN): 0.425 kg (15 oz)
Panel Cutout (1/8 DIN): 45 x 92 mm (1.772 x 3.622")
Panel Cutout (1/4 DIN): 92 mm (3.622") square
Dimensions (1/8 DIN Horizontal): 53 x 100 mm (2.1 x 3.95"); 18.3 mm (0.72") depth
Dimensions (1/4 DIN): 100 W x 100 H x 18.3 min bezel (3.95 x 3.95 x 0.72")
Panel Depth: 100 mm (3.937")
Front-Panel Rating: NEMA 4X (IP66)
Operating Ambient Range: 0 to 55°C (32 to 131°F) @ 90% RH max, non-condensing
Memory Protection: Solid state non-volatile memory
Connections: Rear barrier strip with locking terminals
Contacts: Twin bifurcated

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
CN8541MA-F2		Consult sales	1/8 DIN vertical, MA input, 4-20 mA output	qty.

CN8541MA-F1-RSP7		Consult sales	1/8 DIN vertical, MA input, 4-20 mA output, 4-20 mA remote setpoint	qty.

CN8541MA-F2-RSP7		Consult sales	1/8 DIN vertical, MA input, 4-20 mA output 2 (direct action), 4-20 mA remote setpoint	qty.

CN8541MA-R1-XP2		Consult sales	1/8 DIN vertical, relay output, transducer power supply, 15 Vdc	qty.

CN8541RTD-F1		Consult sales	1/8 DIN vertical, RTD input, 4-20 mA output	qty.

CN8541TC-DC1		Consult sales	1/8 DIN vertical, TC input, dc pulse output	qty.

CN8541TC-DC1-C2		Consult sales	1/8 DIN vertical, TC input, dc pulse output, RS232	qty.

CN8541TC-F1-PV3		Consult sales	1/8 DIN vertical, TC input, 4-20 mA output, 4-20 mA retransmission output	qty.

CN8541TC-R1		Consult sales	1/8 DIN vertical, TC input, relay output	qty.

CN8541TC-R1-AL1-PV3		Consult sales	1/8 DIN vertical, TC input, relay output, alarm, 4-20 mA retransmission	qty.

CN8541TC-R1-AL2		Consult sales	1/8 DIN vertical, TC input, relay output, alarms	qty.

CN8541TC-R1-C4		Consult sales	1/8 DIN vertical, TC input, relay output, RS485	qty.

CN8541TC-T1		Consult sales	1/8 DIN vertical, TC input, AC SSR output	qty.

CN8551MA-R1		Consult sales	1/8 DIN horizontal, MA input, relay output	qty.

CN8551TC-DC1-AL1	2 Weeks	¥5,635.00	1/8 DIN horizontal, TC input, dc pulse output, alarm	qty.

CN8551TC-F1-AL2		Consult sales	1/8 DIN horizontal, TC input, 4-20 mA output, alarms	qty.

CN8551TC-F2		Consult sales	1/8 DIN horizontal, TC input, second output 4-20 mA, direct action	qty.

CN8551TC-R1	2 Weeks	¥5,150.00	1/8 DIN horizontal, TC input, relay output	qty.

CN8561MA-F1		Consult sales	1/4 DIN, MA input, 4-20 mA output	qty.

CN8561TC-DC1		Consult sales	1/4 DIN, TC input, dc pulse output	qty.

CN8561TC-F1	2 Weeks	¥5,885.00	1/4 DIN, TC input, 4-20 mA output	qty.

CN8561TC-R1		Consult sales	1/4 DIN, TC input, relay output	qty.

CN8561TC-R2-AL2		Consult sales	1/4 DIN, TC input, relay output 2, direct action, alarms	qty.

CN8561TC-T1-AL2		Consult sales	1/4 DIN, TC input, AC SSR output, alarms	qty.

CN8541MA-R1-AL1		Consult sales	1/8 DIN vertical, 0/4 to 20 mA input, relay output, single alarm	qty.

CN8541RTD-DC1		Consult sales	1/8 DIN vertical, RTD input, dc Pulse output	qty.

CN8541RTD-F1-24V		Consult sales	1/8 DIN vertical, RTD input, 4 to 20 mA output, 24V	qty.

CN8541RTD-F1-AL2-PV3		Consult sales	1/8 DIN vertical, RTD input, 4 to 20 mA output, Dual alarms, Recorder output, 4 to 20 mA	qty.

CN8541RTD-R1		Consult sales	1/8 DIN vertical, RTD input, relay output	qty.

CN8561TC-T1-C2		Consult sales	1/4 DIN, AC SSR output, RS232	qty.


Accessories

CN8500-F	7 Weeks	¥530.00	4-20 mA output module	qty.

CN8500-R	2 Weeks	¥530.00	Relay output module	qty.

CN8500-DC	2 Weeks	¥530.00	dc Pulse output module	qty.

† Price are shown in RMB.

Note: OMEGACARESM extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARESM covers parts, labor and equivalent loaners.

Part Number Builder

	(1)	(2)	(3)	(4)	(5)	(6)
C C N N 8 8 5 5
Qty:

Option Descriptions

(1)

Model

Select
41 for 1/8 DIN vertical Single output
42 for 1/8 DIN vertical Dual output
51 for 1/8 DIN horizontal Single output
52 for 1/8 DIN horizontal Dual output
61 for 1/4 DIN Single output
62 for 1/4 DIN Dual output

(2)

Input

Select
TC for Thermocouple
RTD for RTD
MV for Voltage to 50 mV
MA for Current to 20 mA

(3)

Output Types

Select
-R1 for 5 A Relay 1st Output-Heat Only
-R2 for 5 A Relay 2nd Output-Cool Only
-T1 for 1 A SSR 1st Output-Heat Only
-T2 for 1 A SSR 2nd Output-Cool Only
-F1 for 4 to 20 mA 1st Output-Heat Only
-F2 for 4 to 20 mA 2nd Output-Cool Only
-DC1 for 20 Vdc Pulse 1st Output-Heat Only
-DC2 for 20 Vdc Pulse 2nd Output-Cool Only

(4)

Output Types

Select
Nothing(leave field blank) for Single Output Model
-R1 for 5 A Relay 1st Output-Heat Only
-R2 for 5 A Relay 2nd Output-Cool Only
-T1 for 1 A SSR 1st Output-Heat Only
-T2 for 1 A SSR 2nd Output-Cool Only
-F1 for 4 to 20 mA 1st Output-Heat Only
-F2 for 4 to 20 mA 2nd Output-Cool Only
-DC1 for 20 Vdc Pulse 1st Output-Heat Only
-DC2 for 20 Vdc Pulse 2nd Output-Cool Only

(5)

Options

Select
Nothing(leave field blank) for None
-AL1 for Single alarm
-AL2 for Dual alarms
-C2 for RS232 communications
-C4 for RS485 communications
-XP1 for Transducer power supply 15 Vdc

(6)

Other Options Only 1 Option Available Per Unit

Select
Nothing(leave field blank) for None
-PV3 for Recorder output 4 to 20 mA
-PV4 for Recorder output 0 to 5 Vdc
-HB1 for Heater break alarm 0 to 20 A
-HB2 for Heater break alarm 0 to 60 A
-RSP4 for Remoter setpoint 0 to 5 Vdc
-RSP5 for Remote setpoint 1 to 5 Vdc
-RSP6 for Remote setpoint 0 to 20 Vdc
-RSP7 for Remote setpoint 4 to 20 Vdc

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
